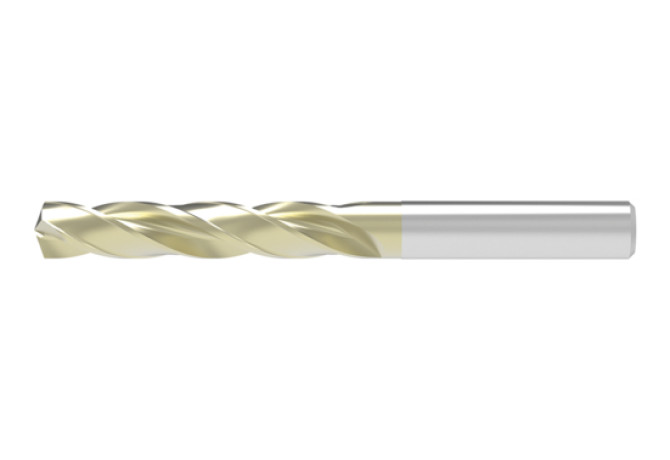

Главная Каталог продукции Toolunited 11 302-01 - Twist Drill 1073004500

1073004500

Артикул: 1073004500

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

CE - Ceratizit

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter minimum

4.5 mm

Delivery state valid from

10/1/2022

DIN

ZYL00600105

FamilyProducts

VHM SPIRALBOHRER

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

38 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00600105

LPR Protruding length

38 mm

LS Shank length

36 mm

LU Usable length

29 mm

Name Identifying order number

1073004500

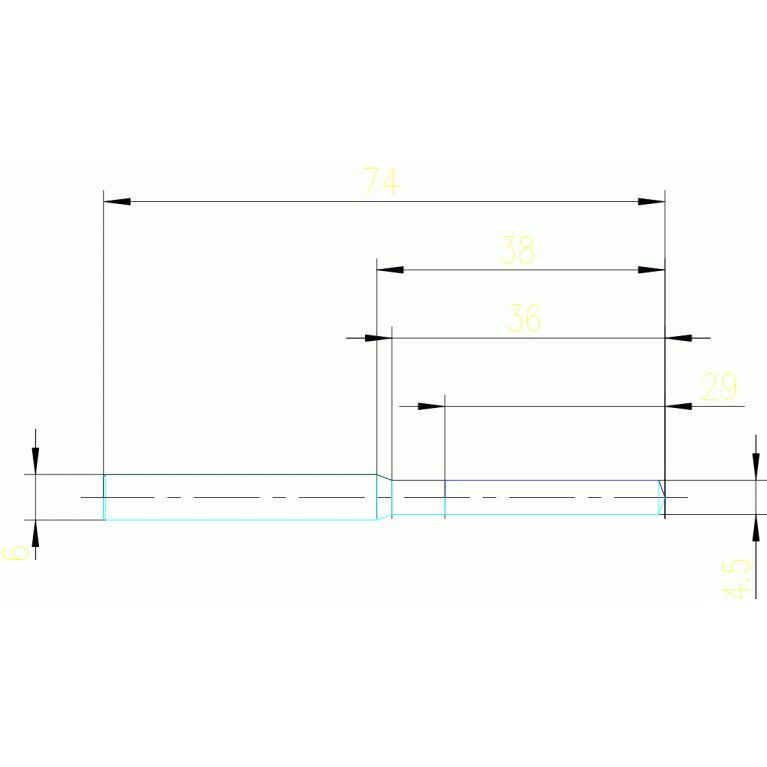

OAL Overall length

74 mm

PL Point length

0.819 mm

SIG Point angle 1st step

140 Degree

Working process

No working processes available
