10265257

Артикул: 10265257

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

COATN Coating / Покрытие

vap.

COMPC Company code

CE - Ceratizit

DC Cutting diameter minimum

25.75 mm

Delivery state valid from

10/1/2021

DIN

MKG00302085

FamilyProducts

HSS SPIRALBOHRER

FHH Flute helix hand

L - Hand of helix left

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

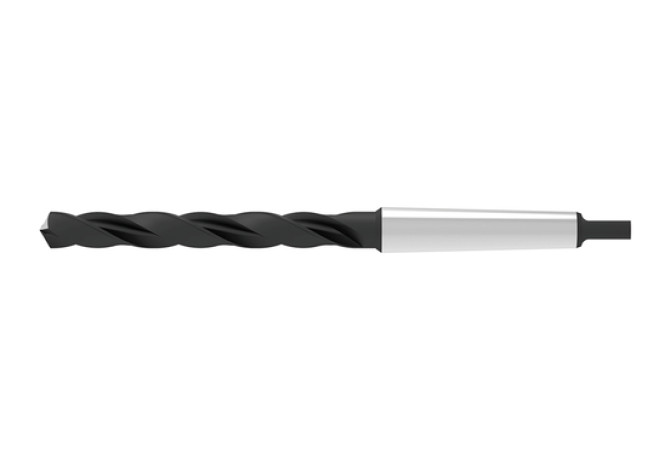

302-01 - Twist Drill

LCF Length chip flute

165 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

MKG Morse taper

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0030

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

MKG00302085

Name Identifying order number

10265257

NOF Flute count

OAL Overall length

286 mm

SIG Point angle 1st step

118 Degree

Working process

No working processes available
