10105007
10105007
Артикул:
10105007
В наличии
Характеристики
CCONMS Connection count machine side
1
COATN Coating
vap.
COMPC Company code
CE - Ceratizit
DC Cutting diameter minimum
0.7 mm
Delivery state valid from
10/1/2021
DIN
ZYL00070105
FamilyProducts

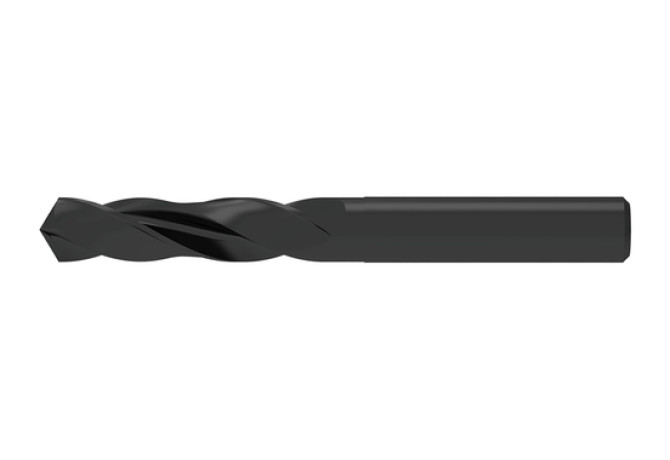

HSS SPIRALBOHRER
FHH Flute helix hand
L - Hand of helix left
HAND Cutting direction
R - Right
Interface codes
J6 /
ISYC Subclass
302-01 - Twist Drill
LCF Length chip flute
4.5 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0007
LOC-03 DCONMS Diameter
0.7 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL00070105
LPR Protruding length
5.5 mm
LS Shank length
18.5 mm
LU Usable length
2.1 mm
Name Identifying order number
10105007
NOF Flute count
2

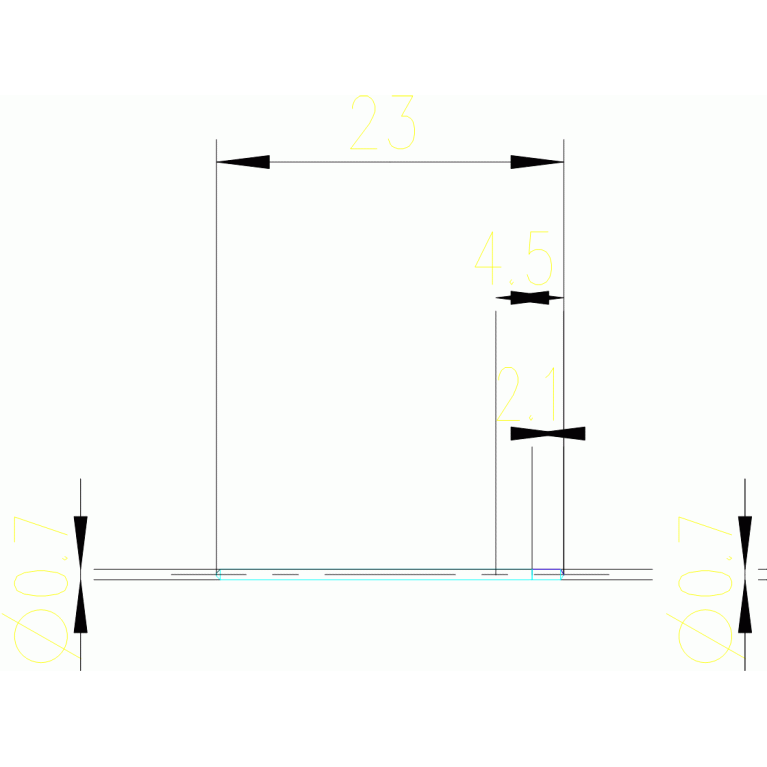

OAL Overall length
23 mm
SIG Point angle 1st step
118 Degree
Working process
No working processes available
