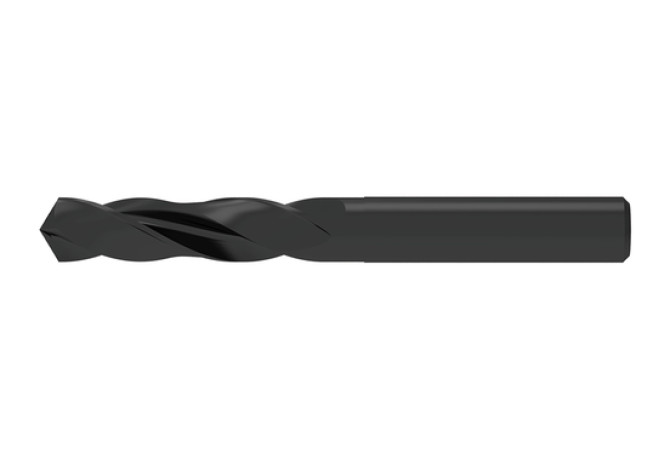

Главная Каталог продукции Toolunited 11 302-01 - Twist Drill 10105005

10105005

Артикул: 10105005

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

COATN Coating

vap.

COMPC Company code

CE - Ceratizit

DC Cutting diameter minimum

0.5 mm

Delivery state valid from

10/1/2021

DIN

ZYL00050105

FamilyProducts

HSS SPIRALBOHRER

FHH Flute helix hand

L - Hand of helix left

HAND Cutting direction

R - Right

Interface codes

J6 /

ISYC Subclass

302-01 - Twist Drill

LCF Length chip flute

3 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0005

LOC-03 DCONMS Diameter

0.5 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00050105

LPR Protruding length

4 mm

LS Shank length

17 mm

LU Usable length

1.5 mm

Name Identifying order number

10105005

NOF Flute count

OAL Overall length

20 mm

SIG Point angle 1st step

118 Degree

Working process

No working processes available
