Главная Каталог продукции Toolunited 11 306-01 - Twist drill for indexable inserts ZTD03-570-XP50-SP09-04

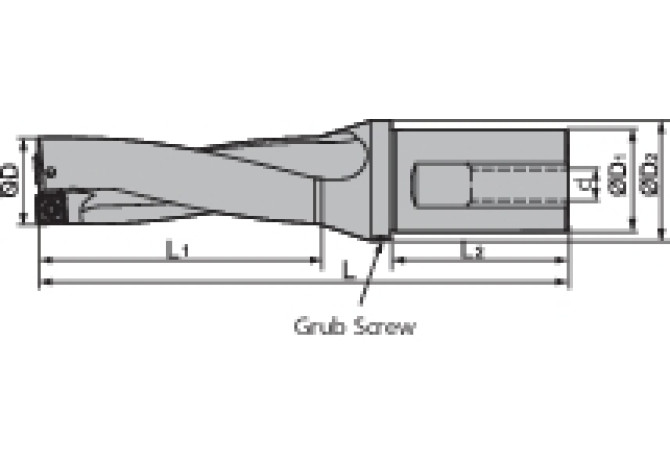

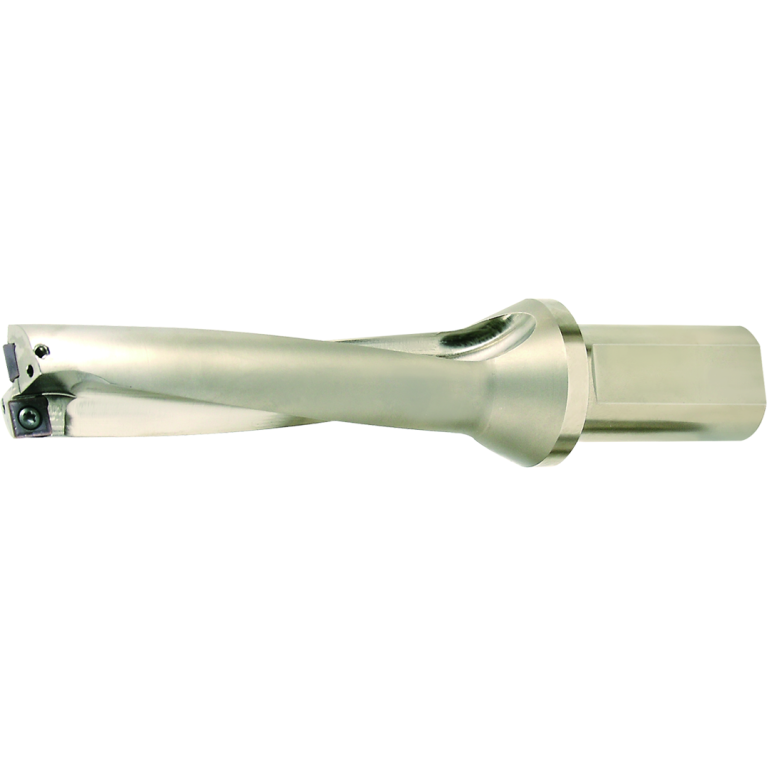

ZTD03-570-XP50-SP09-04

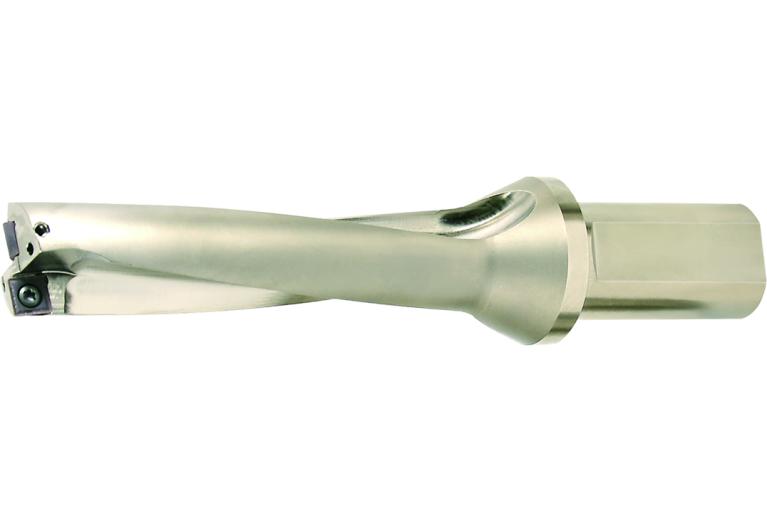

ZTD03-570-XP50-SP09-04

Артикул: ZTD03-570-XP50-SP09-04

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

90 Degree

A1B Cutting edge angle major Pos. B

90 Degree

A2A Clearance angle major Pos. A

11 Degree

A2B Clearance angle major Pos. B

11 Degree

ADJBY Adjustment property

0 - Adjustment not possible

B1A Cutting edge length Pos. A

9.8 mm

B1B Cutting edge length Pos. B

9.8 mm

B3A Inscribed circle diameter Pos. A

9.8 mm

B3B Inscribed circle diameter Pos. B

9.8 mm

BI Block index

1

BLDA Tool style code Position A

2

BLDB Tool style code Position B

2

BLDEV Balancing device

0

BMC Body material code

S - Solid steel

C1A Insert thickness Pos. A

4.76 mm

C1B Insert thickness Pos. B

4.76 mm

CCONMS Connection count machine side

1

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

ZCC - ZCC Cutting Tools

CXSC Coolant exit style code

3 - With Coolant exit, axial and radial

D1A Corner radius Pos. A

0.8 mm

D1B Corner radius Pos. B

0.8 mm

DC Cutting diameter minimum

57 mm

DCP Data chip provision

0 - Without data chip

Delivery state

SF - Made to order

DIN

ZYL05001015

FamilyProducts

ZTD03 3xD

FDC Flute design code

3 - Equal helix

FHH Flute helix hand

R - Hand of helix right

GEP Guide element property

0 - Without guide elements

HAND Cutting direction

R - Right

ID Identifying order number

ZTD03-570-XP50-SP09-04

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

0

ISISO B Indicator for ISO cutting plate Pos.B

0

ISYC Subclass

306-01 - Twist drill for indexable inserts

LOC-01 BI Block index

1

LOC-01 MIID Master insert identification

SPGT090408

LOC-01 MTP Clamping type code 1st step

S Screwed on across the bore, with counter bore

LOC-01-Connection-codes

J44 / J441 - Insert (Unknown 01)

LOC-01-DIN

ZCC-SPGT0904

LOC-02 BI Block index

2

LOC-02 MIID Master insert identification

SPGT090408

LOC-02-Connection-codes

J44 / J441 - Insert (Unknown 02)

LOC-02-DIN

ZCC-SPGT0904

LOC-03 CCFMS Form

10

LOC-03 CCSMS Style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Type

ZYL cylindrical shank

LOC-03 CCUMS Unit base

1 Metric with coolant

LOC-03 CZCMS Size code

0500

LOC-03 DCONMS Diameter

50 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL05001015

LS Shank length

80 mm

LU Usable length

176 mm

MIID Master insert identification

SPGT090408

MTP Clamping type code 1st step

S

NOF Flute count

2

NUMBER INSERTS INSIDE Number of inserts inside

2

NUMBER INSERTS OUTSIDE Number of inserts outside

2

OAL Overall length

296 mm

SIG Point angle 1st step

180 Degree

Working process

BVB - Drilling
