ZSD03-270-XP25-SP07-02
ZSD03-270-XP25-SP07-02
Артикул:
ZSD03-270-XP25-SP07-02
В наличии

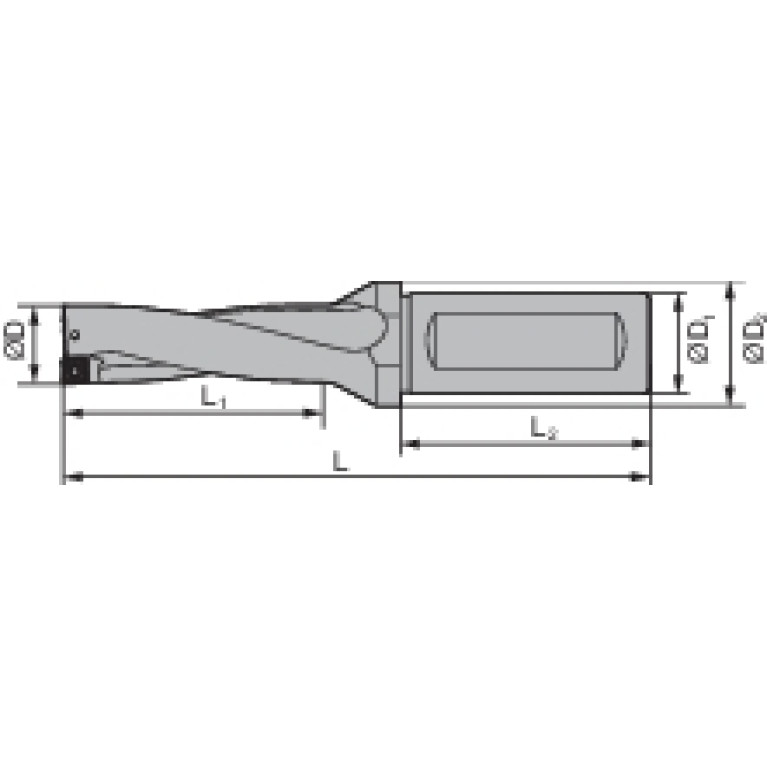

Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A1B Cutting edge angle major Pos. B
90 Degree
A2A Clearance angle major Pos. A
11 Degree
A2B Clearance angle major Pos. B
11 Degree
ADJBY Adjustment property
0 - Adjustment not possible
ANGLE BOND Angle bond
10 Degree
B1A Cutting edge length Pos. A
7.94 mm
B1B Cutting edge length Pos. B
7.94 mm
B3A Inscribed circle diameter Pos. A
7.94 mm
B3B Inscribed circle diameter Pos. B
7.94 mm
BLDA Tool style code Position A
2
BLDB Tool style code Position B
2
BLDEV Balancing device
0
BMC Body material code
S - Solid steel
C1A Insert thickness Pos. A
3.97 mm
C1B Insert thickness Pos. B
3.97 mm
CCONMS Connection count machine side
1
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
ZCC - ZCC Cutting Tools
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
D1A Corner radius Pos. A
0.8 mm
D1B Corner radius Pos. B
0.8 mm
DC Cutting diameter minimum
27 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DF Flange diameter
32 mm
DIN
ZYL02501015
FamilyProducts
ZSD03 3xD
FDC Flute design code
3 - Equal helix
FHH Flute helix hand
R - Hand of helix right
GEP Guide element property
0 - Without guide elements
HAND Cutting direction
R - Right
ID Identifying order number
ZSD03-270-XP25-SP07-02
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISYC Subclass
306-01 - Twist drill for indexable inserts
LENGTH BOND Length bond
20 mm
LF Functional length
104 mm
LOC-03 CCFMS Form
10
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
1 Metric with coolant
LOC-03 CZCMS Size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02501015
LPR Protruding length
104 mm
LS Shank length
56 mm
LU Usable length
84 mm
MTP Clamping type code 1st step
S - Screwed on across the bore, with counter bore
NOF Flute count
2
NUMBER INSERTS INSIDE Number of inserts inside
1
NUMBER INSERTS OUTSIDE Number of inserts outside
1
OAL Overall length
160 mm
SIG Point angle 1st step
180 Degree
Working process
BVB - Drilling
WT Weight of item
0.504 kg
