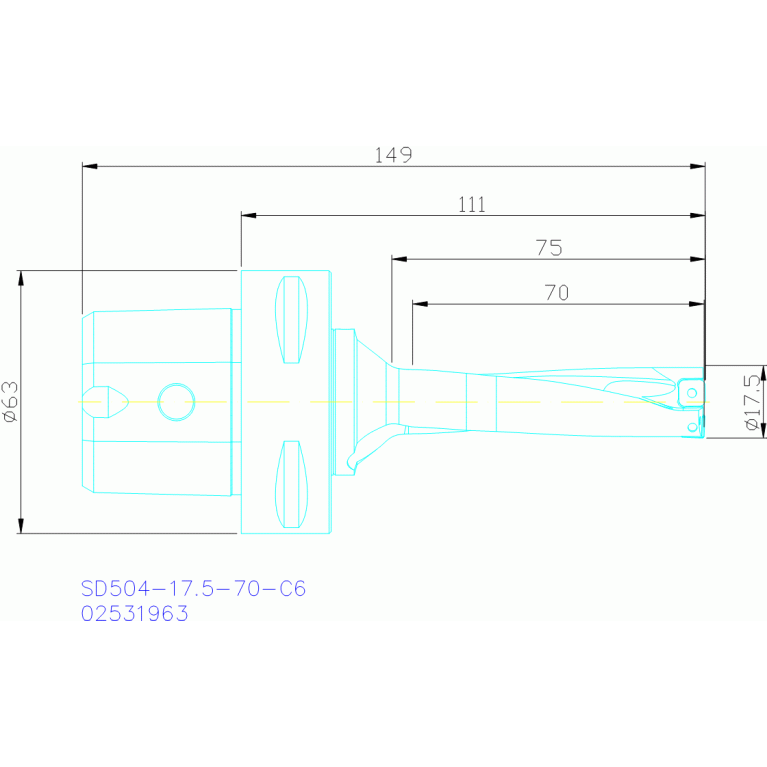

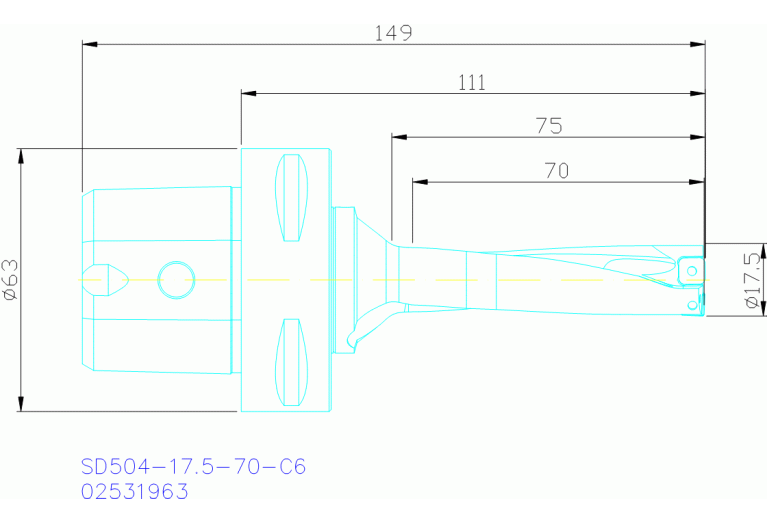

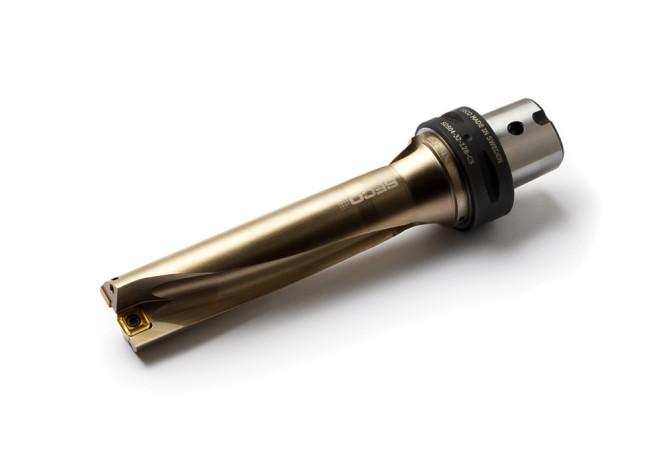

Главная Каталог продукции Toolunited 11 306-01 - Twist drill for indexable inserts SD504-17.5-70-C6

SD504-17.5-70-C6

SD504-17.5-70-C6

SD504-17.5-70-C6

SD504-17.5-70-C6

SD504-17.5-70-C6

SD504-17.5-70-C6

SD504-17.5-70-C6

Seco

Артикул: 02531963

В наличии

В корзину

Описание

Характеристики

A1A Cutting edge angle major Pos. A

90 Degree

A1B Cutting edge angle major Pos. B

90 Degree

A2A Clearance angle major Pos. A

11 Degree

A2B Clearance angle major Pos. B

7 Degree

B1A Cutting edge length Pos. A

6.35 mm

B1B Cutting edge length Pos. B

5.56 mm

B3A Inscribed circle diameter Pos. A

6.35 mm

B3B Inscribed circle diameter Pos. B

5.56 mm

BLDA Tool style code Position A

2

BLDB Tool style code Position B

2

C1A Insert thickness Pos. A

2.38 mm

C1B Insert thickness Pos. B

2.38 mm

CCONMS Connection count machine side

2

CEDC Cutting edge count

1

COMPC Company code

SO - SECO Tools

D1B Corner radius Pos. B

0.4 mm

DC Cutting diameter minimum

17.5 mm

DCP Data chip provision

0 - Without data chip

Delivery state valid from

6/7/2017

DF Flange diameter

63 mm

DIN

CCS06300185

FamilyProducts

SD504-17.5-70-C6

HAND Cutting direction

R - Right

ID Technical product number

02531963

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

1

ISISO B Indicator for ISO cutting plate Pos.B

1

ISYC Subclass

306-01 - Twist drill for indexable inserts

LF Functional length

111 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

CCS Coromant Capto System SANDVIK

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0630

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

CCS06300185

LPR Protruding length

111 mm

LU Usable length

75 mm

Name Identifying order number

SD504-17.5-70-C6

NOF Flute count

2

NUMBER INSERTS INSIDE Number of inserts inside

1

NUMBER INSERTS OUTSIDE Number of inserts outside

1

SIG Point angle 1st step

175 Degree

Working process

BVB - Drilling

WT Weight of item

1.1 kg
