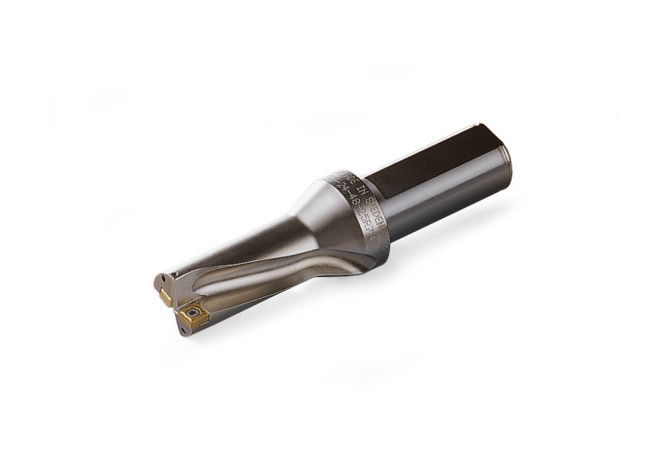

Главная Каталог продукции Toolunited 11 306-01 - Twist drill for indexable inserts SD502-0937-187-1000R7-C

SD502-0937-187-1000R7-C

SD502-0937-187-1000R7-C SD502-0937-187-1000R7-C SD502-0937-187-1000R7-C SD502-0937-187-1000R7-C

SD502-0937-187-1000R7-C

Seco
Артикул: 02429966
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A1B Cutting edge angle major Pos. B
90 Degree
A2A Clearance angle major Pos. A
11 Degree
A2B Clearance angle major Pos. B
7 Degree
B1A Cutting edge length Pos. A
7.937 mm
B1B Cutting edge length Pos. B
7.94 mm
B3A Inscribed circle diameter Pos. A
7.937 mm
B3B Inscribed circle diameter Pos. B
7.94 mm
BLDA Tool style code Position A
2
BLDB Tool style code Position B
2
C1A Insert thickness Pos. A
3.18 mm
C1B Insert thickness Pos. B
3.18 mm
CCONMS Connection count machine side
1
CEDC Cutting edge count
1
COMPC Company code
SO - SECO Tools
D1B Corner radius Pos. B
0.8 mm
DC Cutting diameter minimum
23.8 mm
DCP Data chip provision
0 - Without data chip
DCX Cutting diameter 1st step maximum
24.8 mm
Delivery state valid from
6/7/2017
DF Flange diameter
35.41 mm
DIN
ZYL10001025
FamilyProducts
SD502-0937-187-1000R7-C
HAND Cutting direction
R - Right
ID Technical product number
02429966
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISISO B Indicator for ISO cutting plate Pos.B
1
ISYC Subclass
306-01 - Twist drill for indexable inserts
LF Functional length
82.6 mm
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
2 Inch
LOC-03 CZCMS Connection size code
1000
LOC-03 DCONMS Diameter
25.4 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL10001025
LPR Protruding length
82.6 mm
LS Shank length
69.85 mm
LU Usable length
52.6 mm
Name Identifying order number
SD502-0937-187-1000R7-C
NOF Flute count
2
NUMBER INSERTS INSIDE Number of inserts inside
1
NUMBER INSERTS OUTSIDE Number of inserts outside
1
OAL Overall length
152.45 mm
SIG Point angle 1st step
175 Degree
Working process
BVB - Drilling
WT Weight of item
0.6 kg
