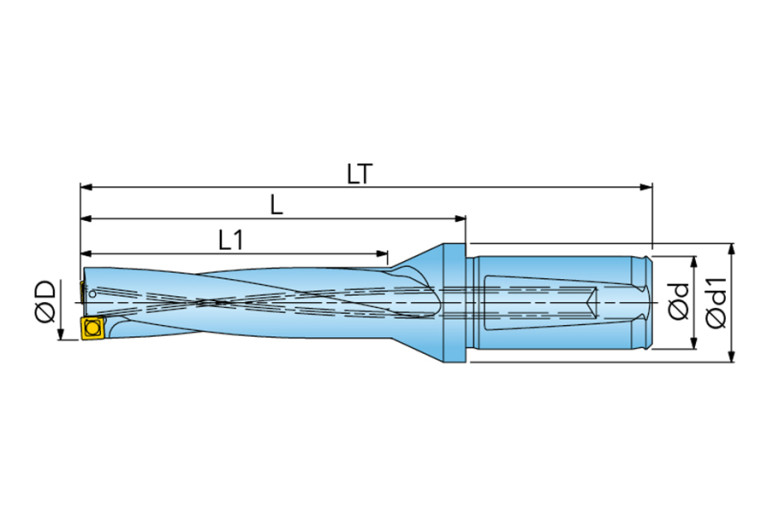

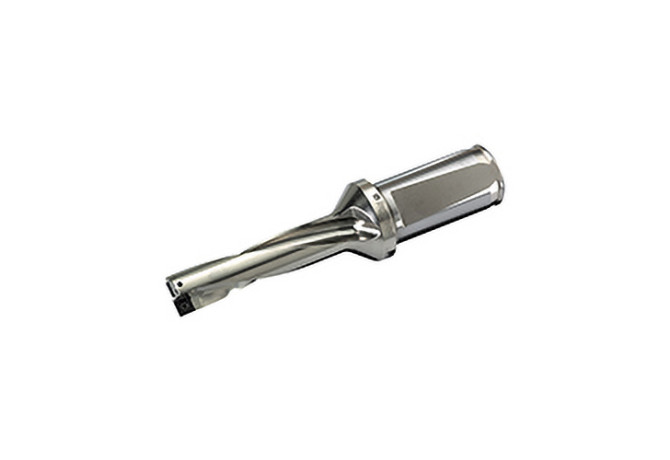

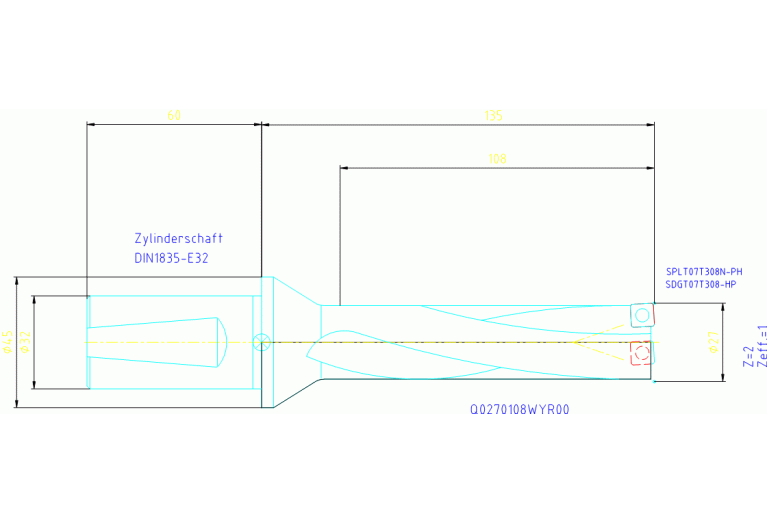

Главная Каталог продукции Toolunited 11 306-01 - Twist drill for indexable inserts Q0270108WYR00

Q0270108WYR00

Q0270108WYR00 Q0270108WYR00 Q0270108WYR00 Q0270108WYR00

Q0270108WYR00

Ingersoll
Артикул: 6180615
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A1B Cutting edge angle major Pos. B
90 Degree
BLDA Tool style code Position A
2
BLDB Tool style code Position B
2
CCONMS Connection count machine side
1
CEDC Cutting edge count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter minimum
27 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DF Flange diameter
45 mm
DIN
ZYL03201315
FamilyProducts
Indexable Drill 4D Ø13-Ø29
GEP Guide element property
0 - Without guide elements
HAND Cutting direction
R - Right
ID Technical product number
6180615
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISISO B Indicator for ISO cutting plate Pos.B
1
ISYC Subclass
306-01 - Twist drill for indexable inserts
LOC-03 CCFMS Connection code form
13
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03201315
LPR Protruding length
135 mm
LU Usable length
108 mm
MTP Clamping type code 1st step
X - Special design, all types
Name Identifying order number
Q0270108WYR00
NOF Flute count
1
NUMBER INSERTS INSIDE Number of inserts inside
1
NUMBER INSERTS OUTSIDE Number of inserts outside
1
OAL Overall length
195 mm
SIG Point angle 1st step
140 Degree
Working process
BVB - Drilling
