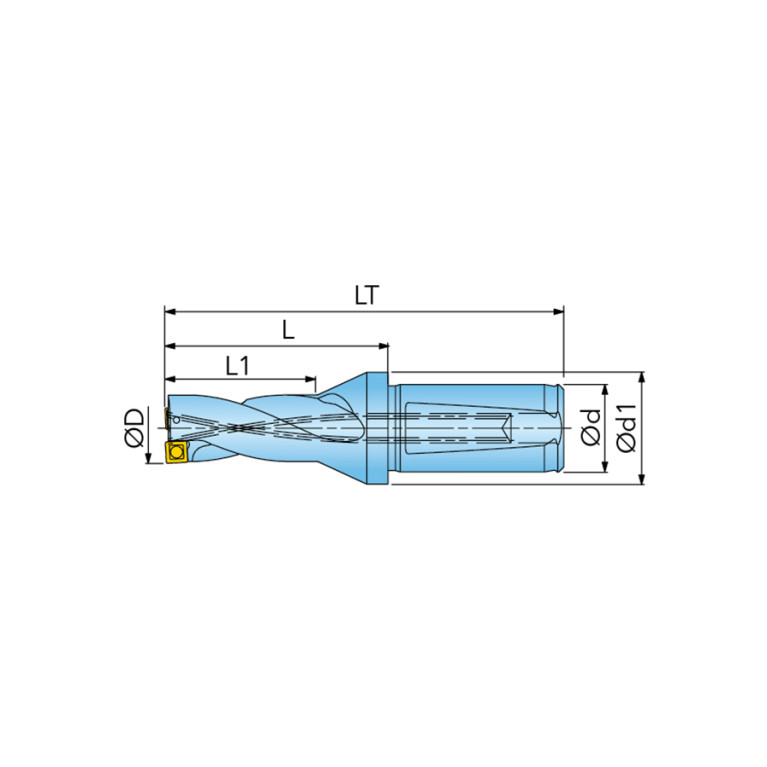

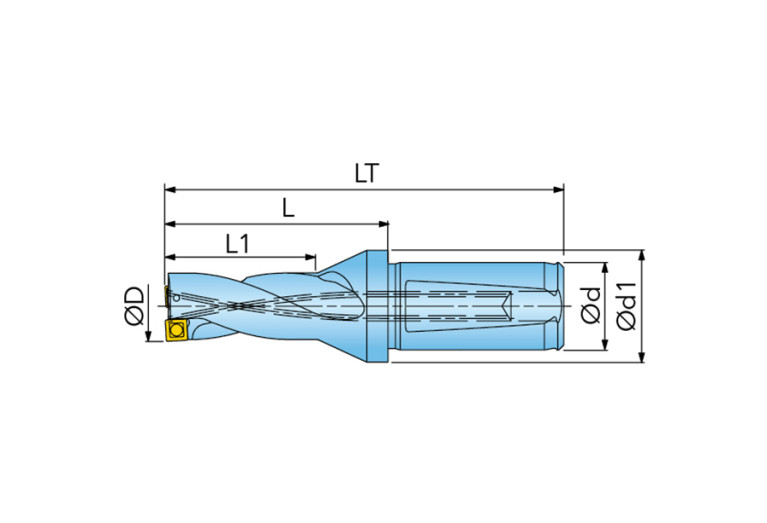

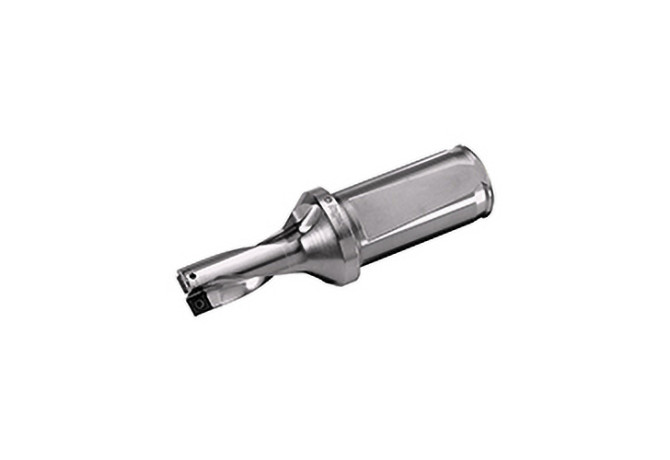

Главная Каталог продукции Toolunited 11 306-01 - Twist drill for indexable inserts Q0220044WXR00

Q0220044WXR00

Q0220044WXR00 Q0220044WXR00 Q0220044WXR00

Q0220044WXR00

Ingersoll
Артикул: 3240418
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A1B Cutting edge angle major Pos. B
90 Degree
BLDA Tool style code Position A
2
BLDB Tool style code Position B
2
CCONMS Connection count machine side
1
CEDC Cutting edge count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter minimum
22 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DF Flange diameter
32 mm
DIN
ZYL02501315
FamilyProducts
Indexable Drill 2D Ø13-Ø29
GEP Guide element property
0 - Without guide elements
HAND Cutting direction
R - Right
ID Technical product number
3240418
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISISO B Indicator for ISO cutting plate Pos.B
1
ISYC Subclass
306-01 - Twist drill for indexable inserts
LOC-03 CCFMS Connection code form
13
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02501315
LPR Protruding length
67 mm
LU Usable length
44 mm
MTP Clamping type code 1st step
X - Special design, all types
Name Identifying order number
Q0220044WXR00
NOF Flute count
1
NUMBER INSERTS INSIDE Number of inserts inside
1
NUMBER INSERTS OUTSIDE Number of inserts outside
1
OAL Overall length
123 mm
SIG Point angle 1st step
140 Degree
Working process
BVB - Drilling
