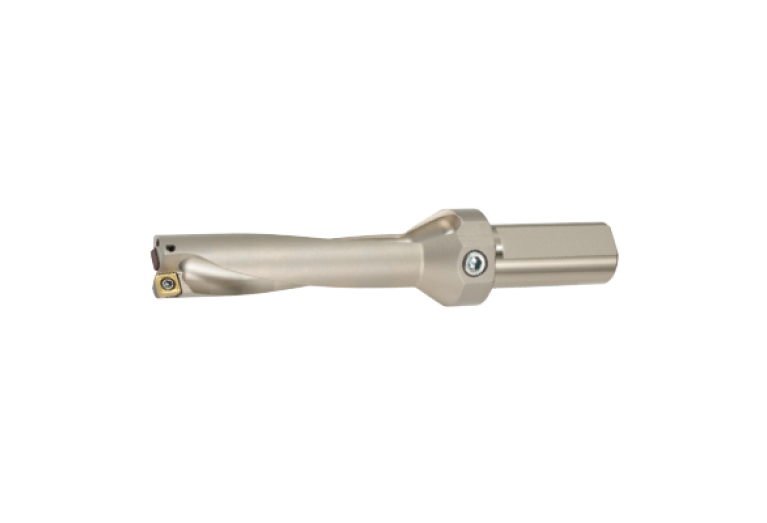

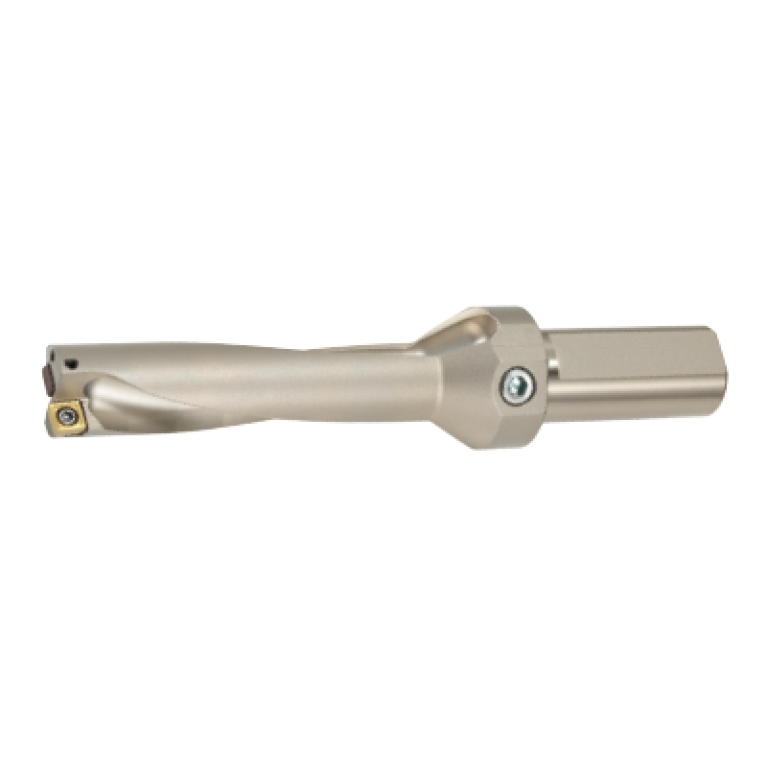

MVX0656X4C075

MVX0656X4C075 MVX0656X4C075 MVX0656X4C075

MVX0656X4C075

Mitsubishi Materials
Артикул: 10601839
В наличии
В корзину
Описание
Характеристики

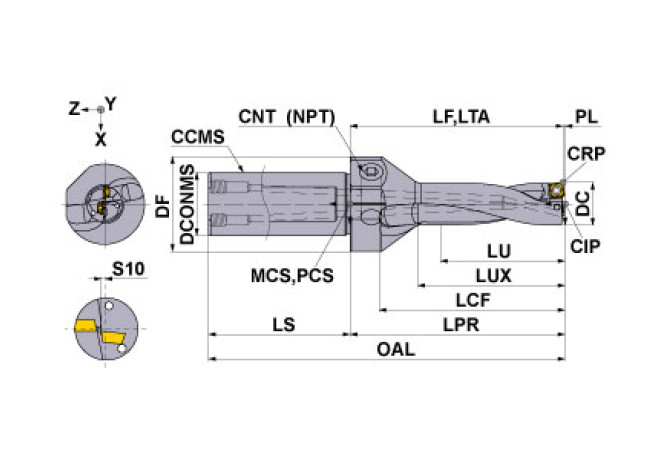

A1A Cutting edge angle major Pos. A
90 Degree
A1B Cutting edge angle major Pos. B
90 Degree
A2A Clearance angle major Pos. A
11 Degree
A2B Clearance angle major Pos. B
11 Degree
B1A Cutting edge length Pos. A
5 mm
B1B Cutting edge length Pos. B
5 mm
B3A Inscribed circle diameter Pos. A
5 mm
B3B Inscribed circle diameter Pos. B
5 mm
BLDA Tool style code Position A
99
BLDB Tool style code Position B
99
C1A Insert thickness Pos. A
2.7 mm
C1B Insert thickness Pos. B
2.7 mm
CCONMS Connection count machine side
2
CEDC Cutting edge count
2
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
4 - With Coolant exit, axial on hole circle
D1A Corner radius Pos. A
0.4 mm
D1B Corner radius Pos. B
0.4 mm
DC Cutting diameter minimum
16.6624 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
ZYL07501135
FamilyProducts
drilling
HAND Cutting direction
R - Right
ID Technical product number
10601839
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISISO B Indicator for ISO cutting plate Pos.B
0
ISO
ZYL11R7500$$$$
ISYC Subclass
306-01 - Twist drill for indexable inserts
LOC-03 CCFMS Connection code form
11
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
3 Inch with coolant
LOC-03 CZCMS Connection size code
0750
LOC-03 DCONMS Diameter
19.05 mm
LOC-03 ISO
ZYL11R7500$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL07501135
LPR Protruding length
93.726 mm
LU Usable length
66.548 mm
Name Identifying order number
MVX0656X4C075
NUMBER INSERTS INSIDE Number of inserts inside
1
NUMBER INSERTS OUTSIDE Number of inserts outside
2
OAL Overall length
144.526 mm
Working process
No working processes available
