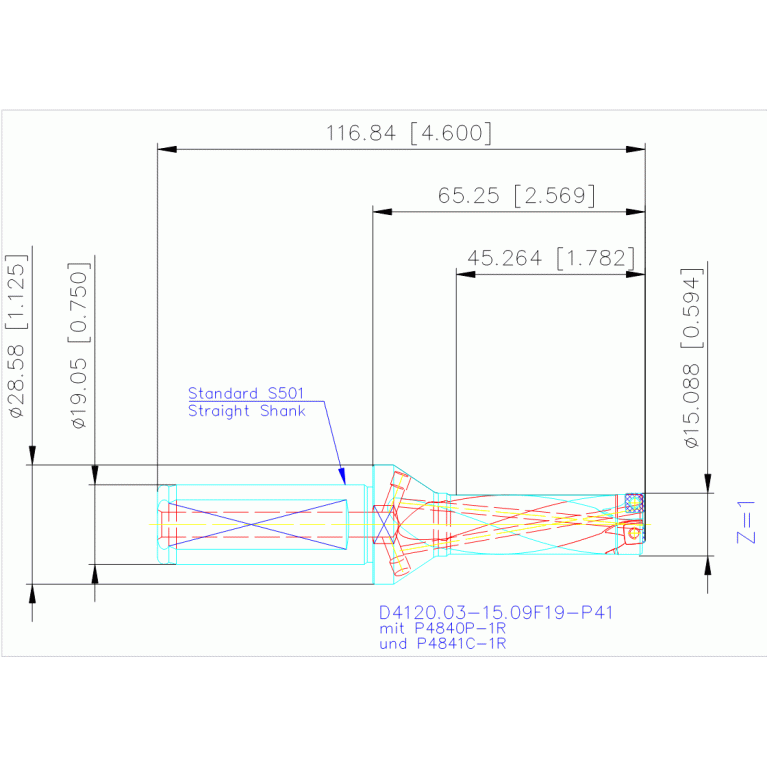

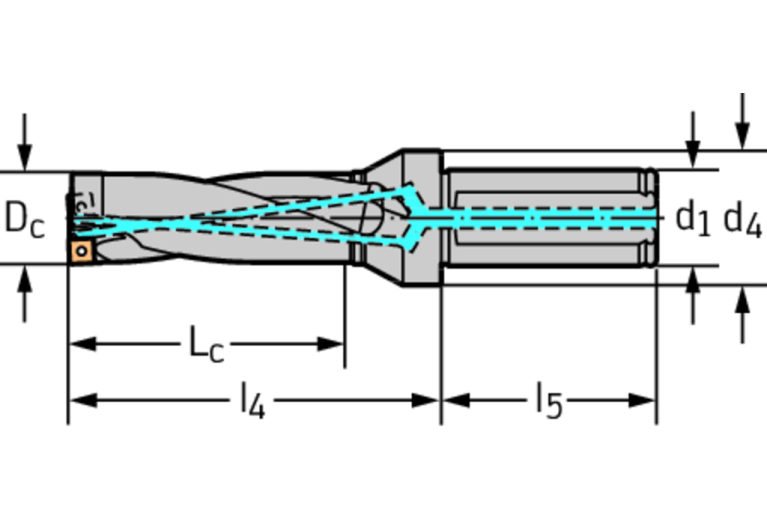

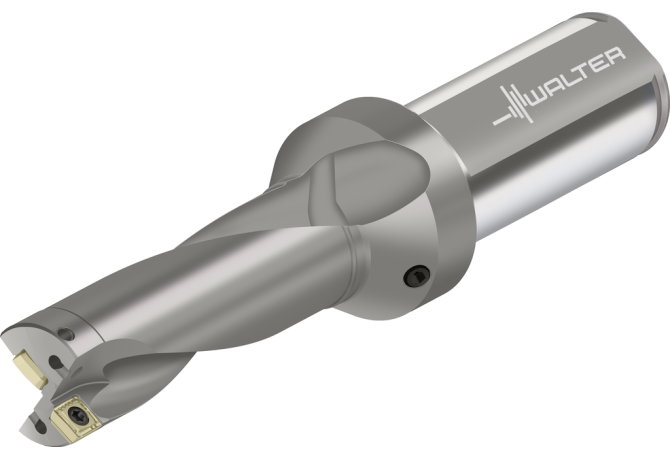

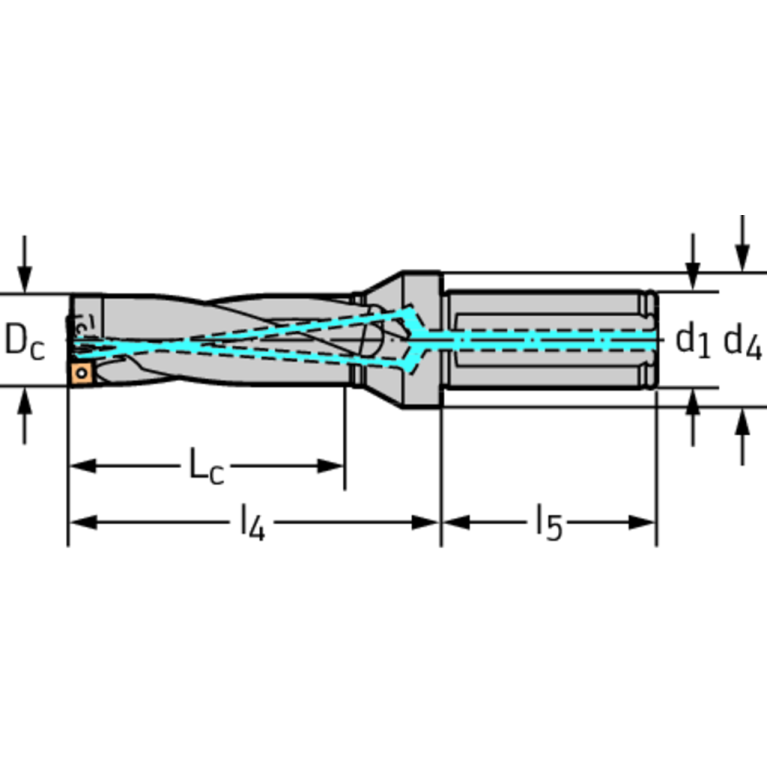

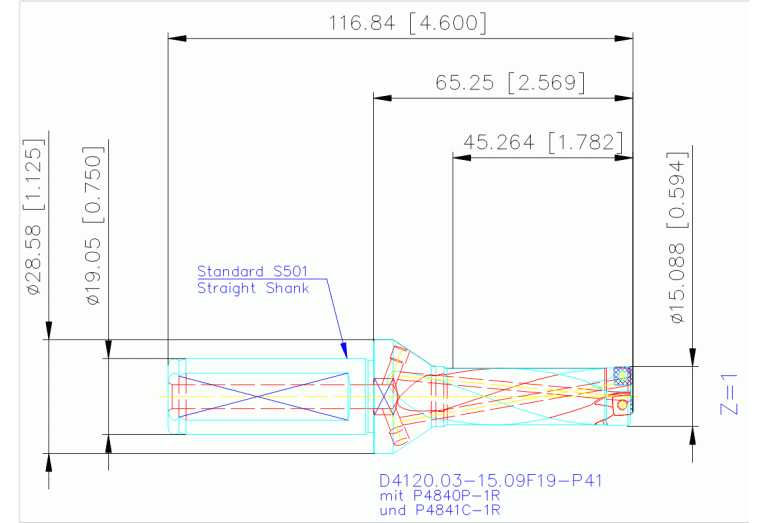

D4120.03-15.09F19-P41

D4120.03-15.09F19-P41 D4120.03-15.09F19-P41 D4120.03-15.09F19-P41 D4120.03-15.09F19-P41

D4120.03-15.09F19-P41

Walter
Артикул: 6929590
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
6
BMC Body material code
S - Solid steel
CCONMS Connection count machine side
2
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
W - Walter
CXSC Coolant exit style code
3 - With Coolant exit, axial and radial
DC Cutting diameter minimum
15.088 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
12/1/2023
DIN
ZYL07501135
FamilyProducts
Indexable insert drills D4120
FHA Flute helix angle
23 Degree
FHH Flute helix hand
R - Hand of helix right
HAND Cutting direction
R - Right
ID Technical product number
6929590
Interface codes
J6 / J61
ISO
ZYL11R7500h$06
ISYC Subclass
306-01 - Twist drill for indexable inserts
LCF Length chip flute
60.7 mm
LF Functional length
64.975 mm
LOC-03 CCFMS Form
11
LOC-03 CCSMS Style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Type
ZYL cylindrical shank
LOC-03 CCUMS Unit base
3 Inch with coolant
LOC-03 CZCMS Size code
0750
LOC-03 DCONMS Diameter
19.05 mm
LOC-03 TCDCONCDMS Tolerance class coded
h$06
LOC-03 ISO
ZYL11R7500h$06
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL07501135
LPR Protruding length
65.25 mm
LS Shank length
51.59 mm
LU Usable length
45.264 mm
MTP Clamping type code 1st step
S - Screwed on across the bore, with counter bore
Name Identifying order number
D4120.03-15.09F19-P41
NUMBER INSERTS INSIDE Number of inserts inside
1
NUMBER INSERTS OUTSIDE Number of inserts outside
1
OAL Overall length
116.84 mm
PL Point length
0.275 mm
RPMX Rotational speed maximum
12000 1/min
SIG Point angle 1st step
176 Degree
TCDCONMS ISO-tolerance class shank diameter
h6
Working process
BVB - Drilling
WT Weight of item
0.2 kg
