10800380
10800380
Артикул:
10800380
В наличии
Характеристики
CCONMS Connection count machine side
1
CEDC Cutting edge count
1
COMPC Company code
CE - Ceratizit
Delivery state valid from
10/1/2021
DIN
ZYL03201115
FamilyProducts

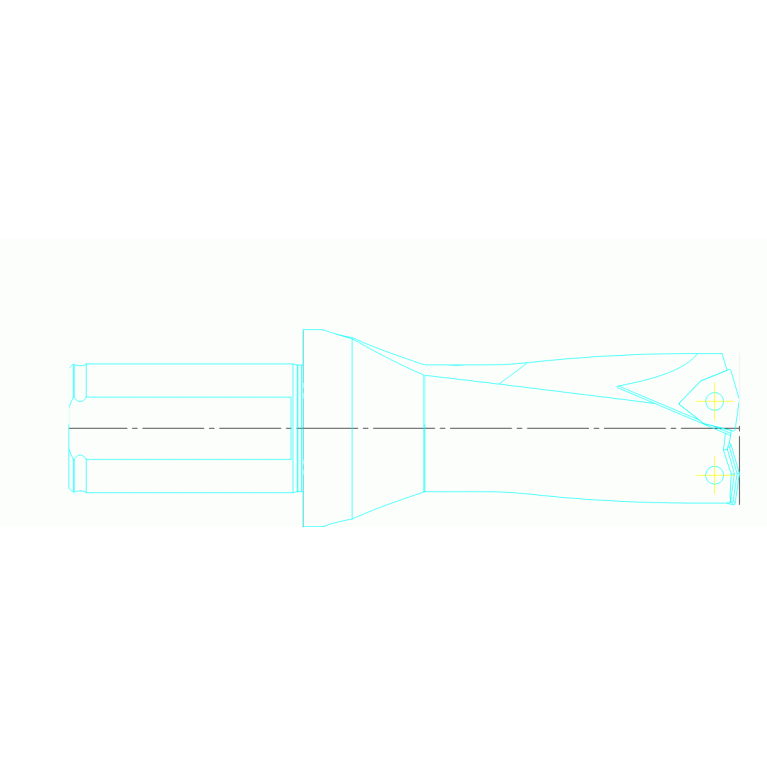

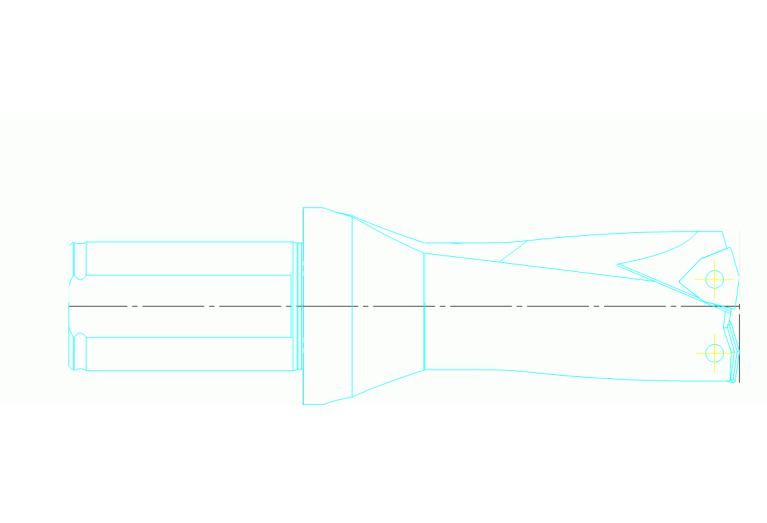

MAXIDRILL CLASSIC - WENDEPLATTENBOHRER
FHH Flute helix hand
L - Hand of helix left
HAND Cutting direction
R - Right
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISISO B Indicator for ISO cutting plate Pos.B
1
ISYC Subclass
306-01 - Twist drill for indexable inserts
LOC-03 CCFMS Connection code form
11
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03201115
LPR Protruding length
108 mm
LS Shank length
58 mm
LU Usable length
78 mm
Name Identifying order number
10800380
OAL Overall length
166 mm
Working process
No working processes available
