Главная Каталог продукции Toolunited 11 201-00 - Regular Insert unspecified ZGM324R211 IN2030

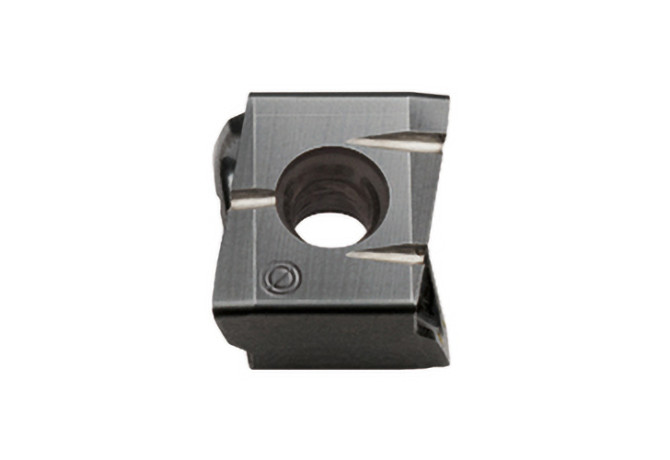

ZGM324R211 IN2030

Артикул: 5851667

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

TiAIN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.4 mm

Delivery state

NL - Discontinued

DIN

IL-WSP-3234

EPSR Insert included angle

80 Degree

FamilyProducts

insert, four-edged, reinforced geometry R0,8

GRD2ND Standard designation of the grade 2nd application

M20-M40

GRD3RD Standard designation of the grade 3rd application

K20-K40

GRDMFG Grade manufacturers designation

IN2030

GRDPRIO Standard designation of the grade main application

P20-P40

ID Technical product number

5851667

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

12.9 mm

LE Cutting edge effective length

13.7 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-3234

Name Identifying order number

ZGM324R211 IN2030

S Insert thickness

8 mm

S1 Insert thickness total

8 mm

TCINS Tolerance class insert

W1 Insert width

13.54 mm

Working process

No working processes available
