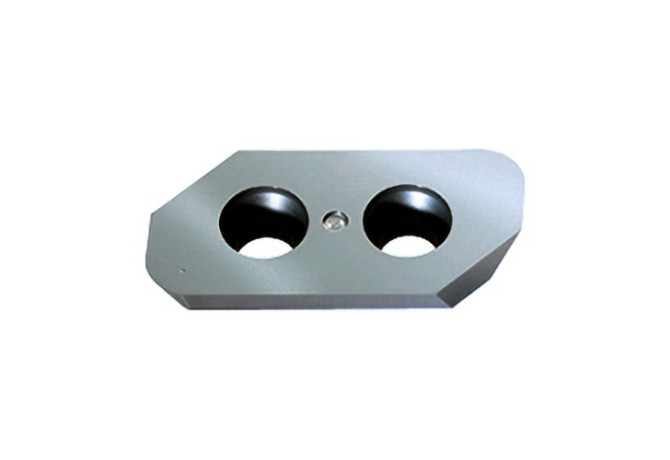

Z-XFEB330540R-P IN15K

Артикул: 5812732

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CBMD Chip breaker manufacturers designation

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

5.4 mm

Delivery state

NL - Discontinued

DIN

IL-WSP-603

EPSR Insert included angle

86 Degree

FamilyProducts

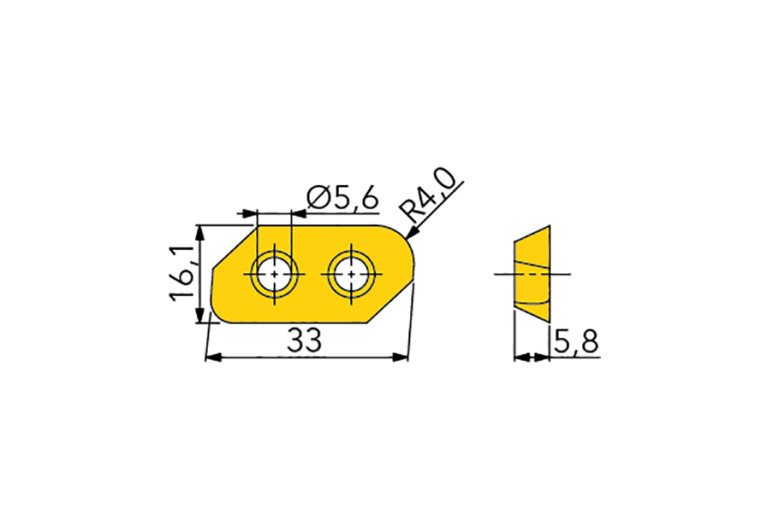

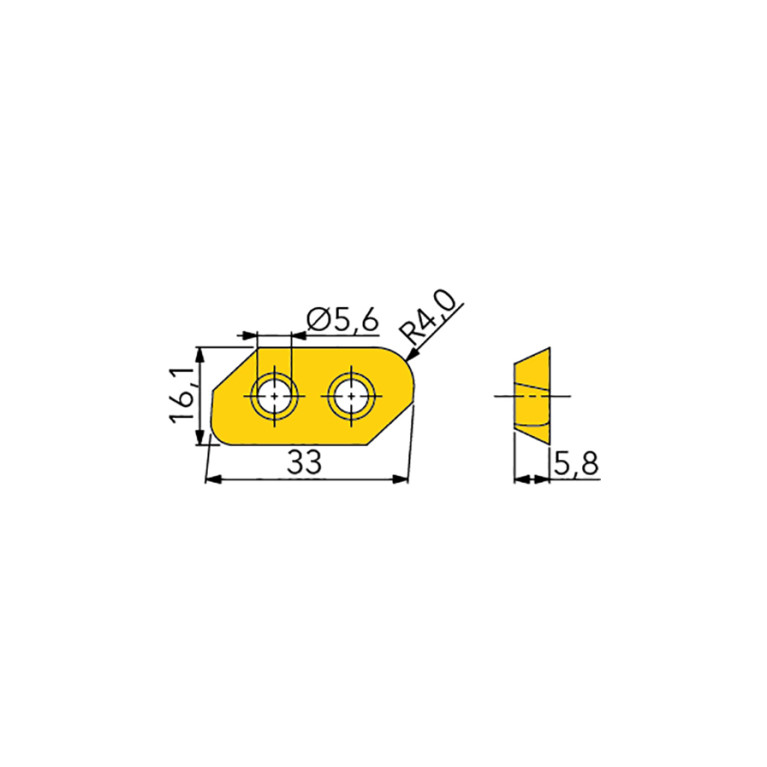

insert, double-edged, positive, sharp-edged and polished geometry for non-ferrous materials with R4,0

GRDMFG Grade manufacturers designation

IN15K

GRDPRIO Standard designation of the grade main application

N15-N30

ID Technical product number

5812732

IFS Insert mounting style code

1 - Without bore

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-603

Name Identifying order number

Z-XFEB330540R-P IN15K

S Insert thickness

5.84 mm

S1 Insert thickness total

5.84 mm

W1 Insert width

16.13 mm

Working process

No working processes available
