Главная Каталог продукции Toolunited 11 201-00 - Regular Insert unspecified YDA334L102 IN2040

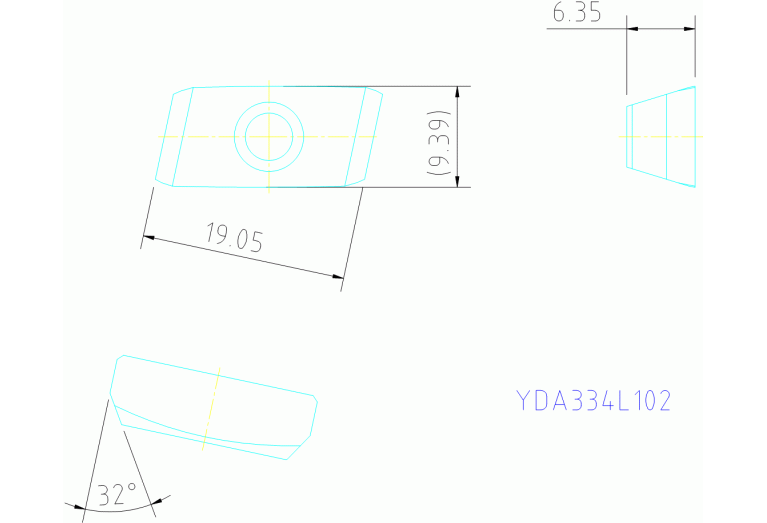

YDA334L102 IN2040

Артикул: 5864617

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

TiAIN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.4 mm

Delivery state

LH - Stocked

DIN

IL-WSP-117

EPSR Insert included angle

78 Degree

FamilyProducts

insert, double-edged, rhombic micromill wiper finishing insert

GRDMFG Grade manufacturers designation

IN2040

GRDPRIO Standard designation of the grade main application

P15-P35

ID Technical product number

5864617

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

L - Left

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

KCH Corner chamfer angle

32.3 Degree

L Cutting edge length

19 mm

LE Cutting edge effective length

2 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-117

Name Identifying order number

YDA334L102 IN2040

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

W1 Insert width

9.53 mm

Working process

FPL - Face milling
