Главная Каталог продукции Toolunited 11 201-00 - Regular Insert unspecified YDA223L101 IN04S

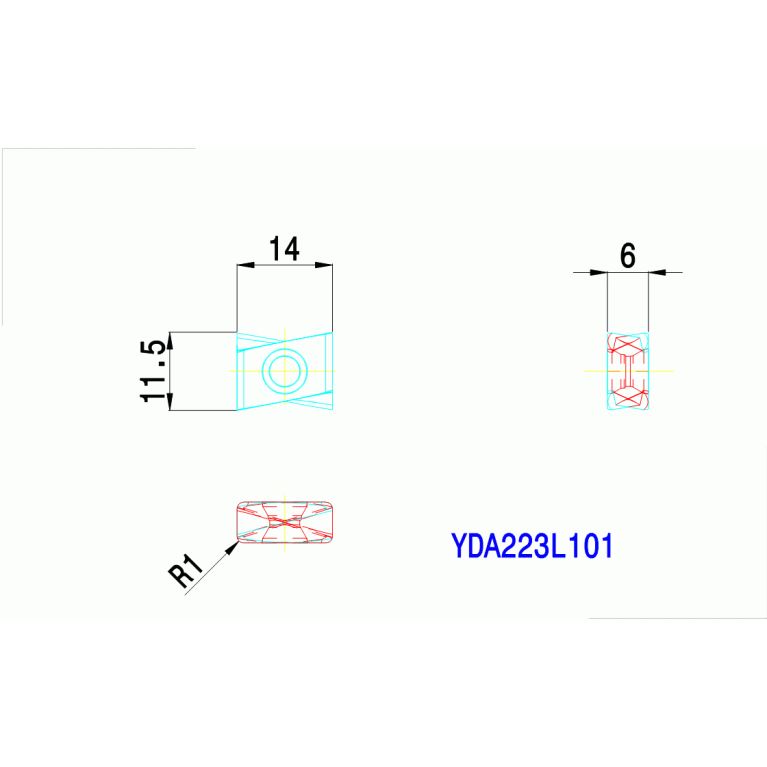

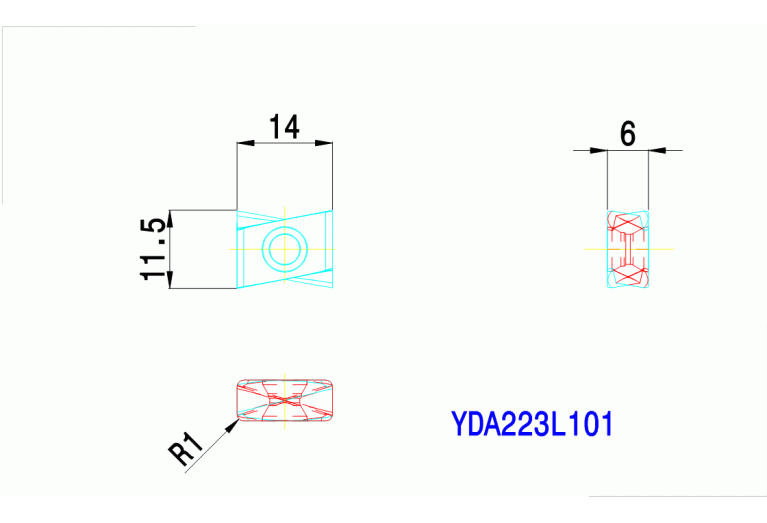

YDA223L101 IN04S

Артикул: 5895500

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.4 mm

Delivery state

NL - Discontinued

DIN

IL-WSP-4126

EPSR Insert included angle

78 Degree

FamilyProducts

insert, double-edged, rhombic wiper finishing insert with R1,0

GRD2ND Standard designation of the grade 2nd application

K10-K20

GRDMFG Grade manufacturers designation

IN04S

ID Technical product number

5895500

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

L - Left

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

14 mm

LE Cutting edge effective length

0.25 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-4126

Name Identifying order number

YDA223L101 IN04S

RE Corner radius

1 mm

S Insert thickness

6 mm

S1 Insert thickness total

6 mm

W1 Insert width

11.5 mm

Working process

No working processes available
