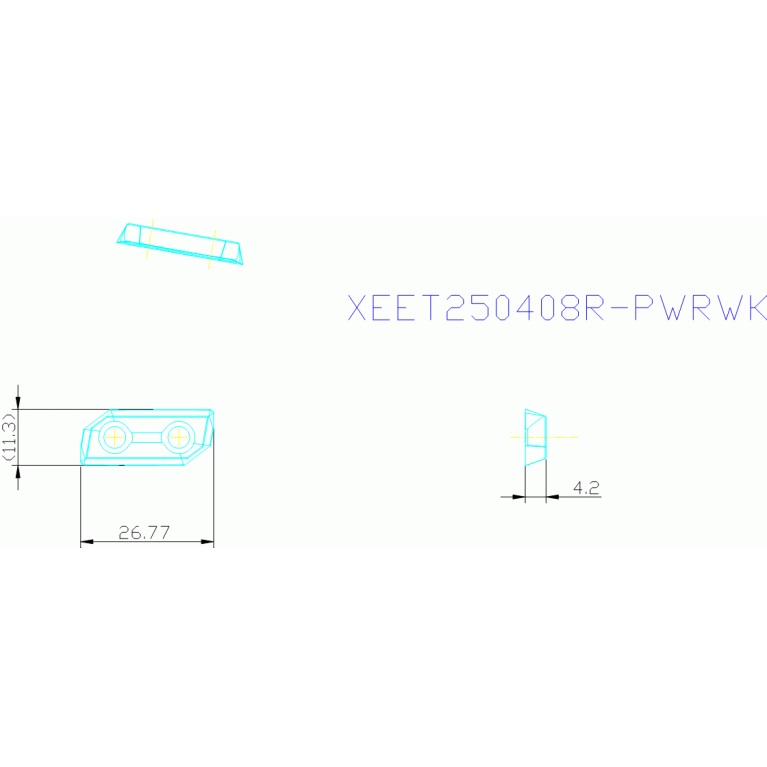

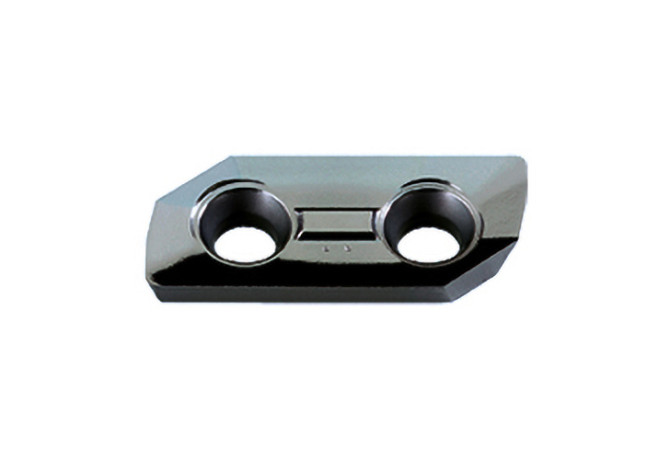

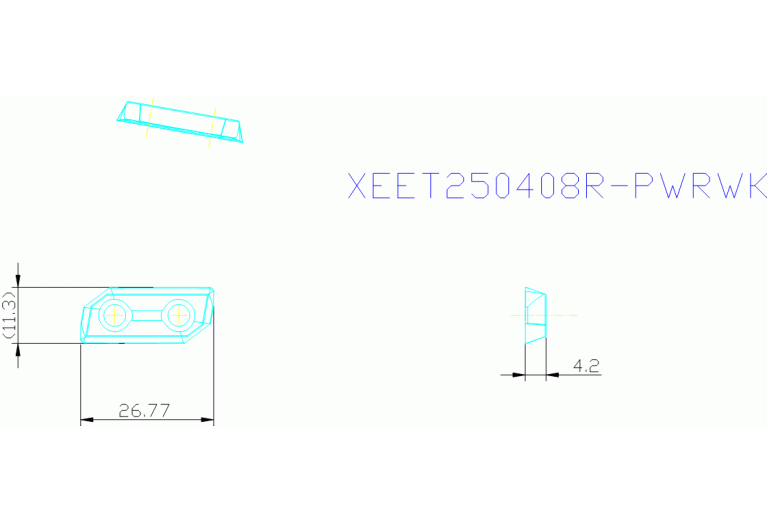

XEET250408R-PWRWK IN15K

Артикул: 2917090

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

20 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.4 mm

Delivery state

LH - Stocked

DIN

XE2504 3R

EPSR Insert included angle

80 Degree

FamilyProducts

insert, double-edged wiper facette for non-ferrous materials with R0,8

GRDMFG Grade manufacturers designation

IN15K

GRDPRIO Standard designation of the grade main application

N15-N30

IC Inscribed circle diameter

11.39 mm

ID Technical product number

2917090

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

20.06 mm

LE Cutting edge effective length

21 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

XE2504 3R

Name Identifying order number

XEET250408R-PWRWK IN15K

RE Corner radius

0.8 mm

S Insert thickness

4.2 mm

S1 Insert thickness total

4.2 mm

STDDES Standard designation

XEET250408R

TCINS Tolerance class insert

W1 Insert width

11.39 mm

Working process

FEC - Square shoulder milling,FFO - Die milling,FNB - Slotting,FPR - Profile milling
