Главная Каталог продукции Toolunited 11 201-00 - Regular Insert unspecified NNE324R107 IN2005

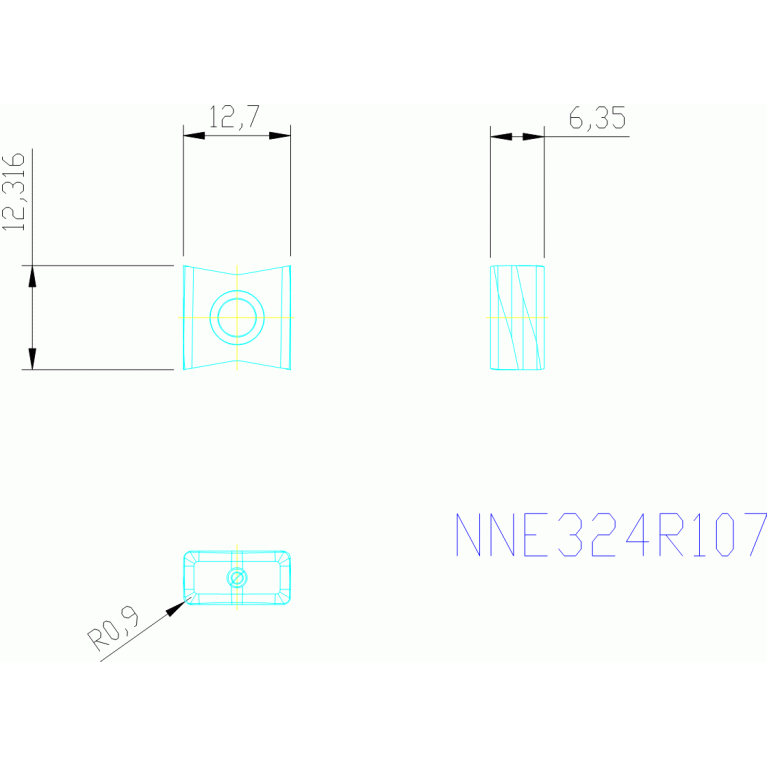

NNE324R107 IN2005

Артикул: 5811150

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

TiAIN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.4 mm

Delivery state

LH - Stocked

DIN

IL-WSP-382

EPSR Insert included angle

80 Degree

FamilyProducts

insert, eight-edged (R+L), positive geometry with R0,8

GRD2ND Standard designation of the grade 2nd application

M15-M35

GRD3RD Standard designation of the grade 3rd application

K20-K40

GRDMFG Grade manufacturers designation

IN2005

GRDPRIO Standard designation of the grade main application

P15-P30

ID Technical product number

5811150

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

10.7 mm

LE Cutting edge effective length

5.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-382

Name Identifying order number

NNE324R107 IN2005

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

TCINS Tolerance class insert

W1 Insert width

12.3 mm

Working process

FPL - Face milling
