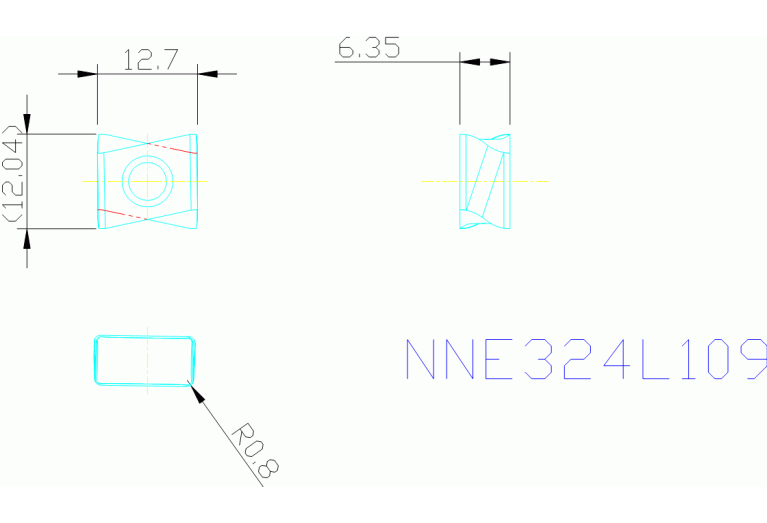

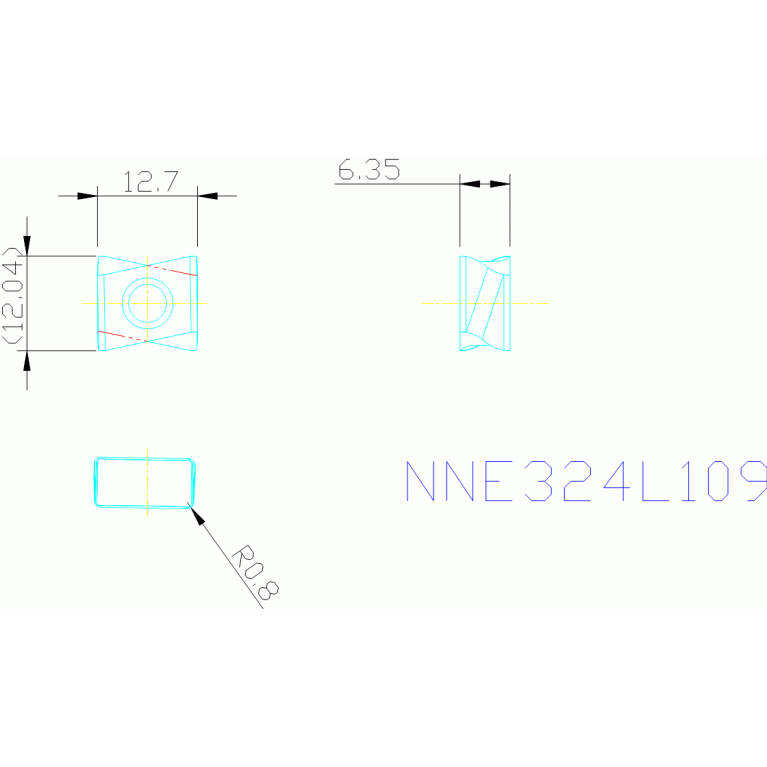

NNE324L109 - E IN2015

Артикул: 5869119

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

TiAIN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.4 mm

Delivery state

LH - Stocked

DIN

IL-WSP-404

EPSR Insert included angle

80 Degree

FamilyProducts

insert, four-edged (R+L), positive geometry with R0,8

GRD2ND Standard designation of the grade 2nd application

M20-M40

GRD3RD Standard designation of the grade 3rd application

K20-K40

GRDMFG Grade manufacturers designation

IN2015

GRDPRIO Standard designation of the grade main application

P20-P35

ID Technical product number

5869119

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

L - Left

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

11.1 mm

LE Cutting edge effective length

11.9 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-404

Name Identifying order number

NNE324L109 - E IN2015

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

TCINS Tolerance class insert

W1 Insert width

12 mm

Working process

FEC - Square shoulder milling,FPL - Face milling,FPR - Profile milling
