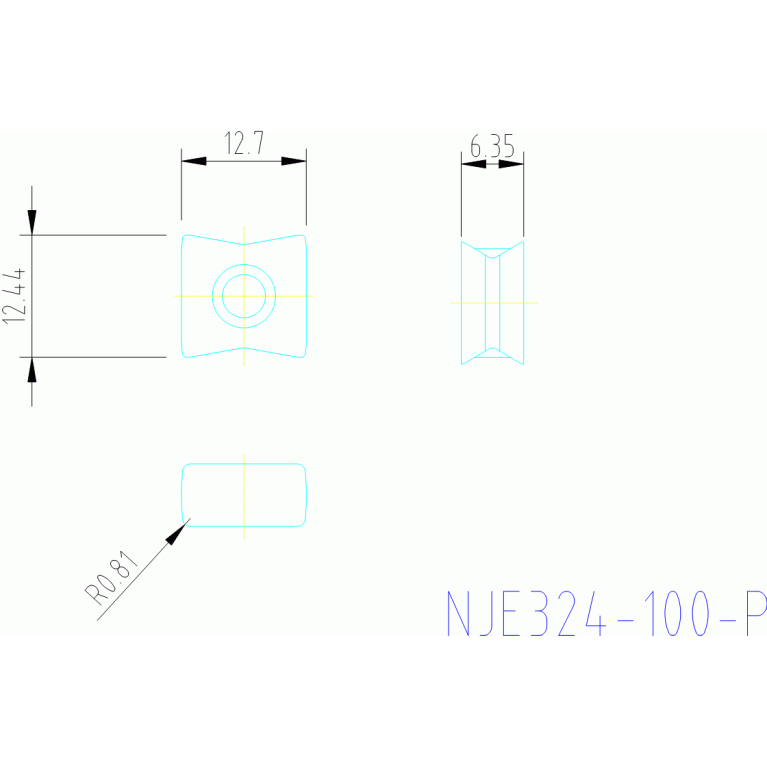

NJE324-100-P IN04S

Артикул: 5811518

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.4 mm

Delivery state

LH - Stocked

DIN

IL-WSP-386

EPSR Insert included angle

80 Degree

FamilyProducts

insert, eight-edged (R+L), positive, polished and sharp-edged geometry for non-ferrous materials with R0,8

GRD2ND Standard designation of the grade 2nd application

K10-K20

GRDMFG Grade manufacturers designation

IN04S

ID Technical product number

5811518

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

4.7 mm

LE Cutting edge effective length

5.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-386

Name Identifying order number

NJE324-100-P IN04S

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

TCINS Tolerance class insert

W1 Insert width

12.4 mm

Working process

No working processes available
