Главная Каталог продукции Toolunited 11 201-00 - Regular Insert unspecified NCE324-100 IN70N

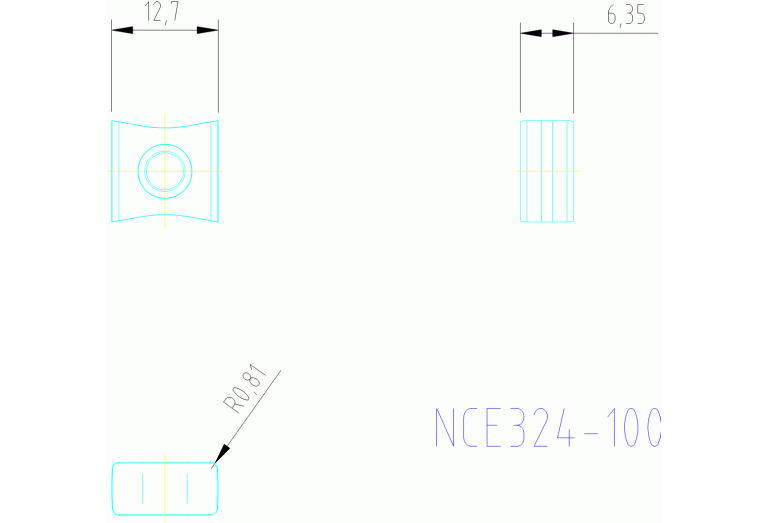

NCE324-100 IN70N

Артикул: 5820196

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

SiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.4 mm

Delivery state

LH - Stocked

DIN

IL-WSP-388

EPSR Insert included angle

80 Degree

FamilyProducts

insert, eight-edged (R+L), positive geometry with R0,8 - SiN

GRD2ND Standard designation of the grade 2nd application

K10-K20

GRDMFG Grade manufacturers designation

IN70N

ID Technical product number

5820196

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

KCH Corner chamfer angle

22.5 Degree

L Cutting edge length

4.7 mm

LE Cutting edge effective length

5.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-388

Name Identifying order number

NCE324-100 IN70N

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

TCINS Tolerance class insert

W1 Insert width

12 mm

Working process

FEC - Square shoulder milling,FPL - Face milling,FPR - Profile milling
