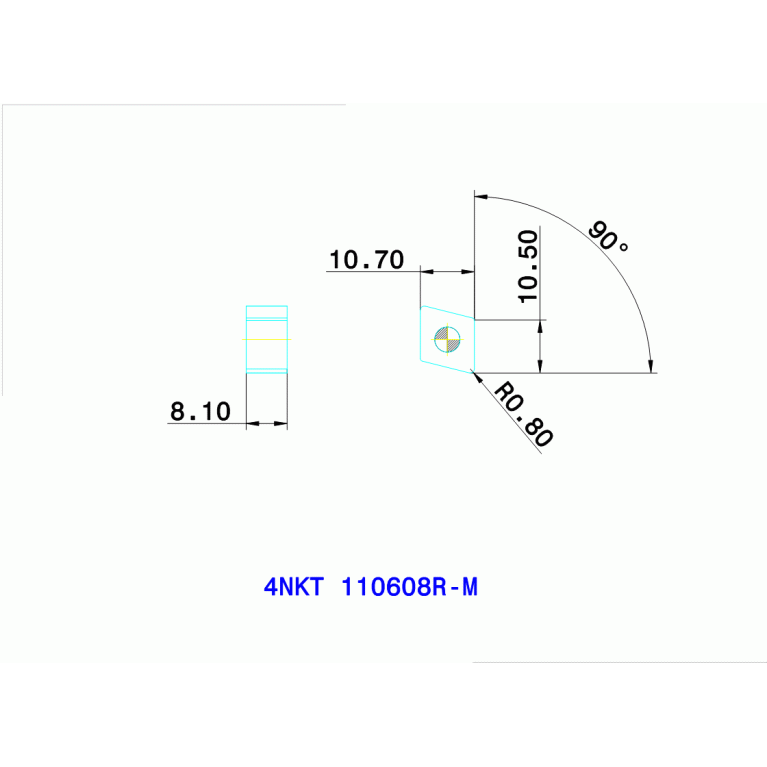

MNHU110608R-M IN2505
MNHU110608R-M IN2505
Артикул:
6177211
В наличии
Характеристики
AN Clearance angle major
0 Degree
CB Chip breaker face count
2 - With chip breaker on both sides
COATN Coating
TiAIN+TiN
COMPC Company code
IL - Ingersoll
D1 Fixing hole diameter
4.7 mm
Delivery state
LL - Stock limited
DIN
MN1106 5R
EPSR Insert included angle
75 Degree
FamilyProducts
insert, 4-edged insert with R0.8
GRD2ND Standard designation of the grade 2nd application
M15-M35
GRD3RD Standard designation of the grade 3rd application
K20-K40
GRDMFG Grade manufacturers designation
IN2505
GRDPRIO Standard designation of the grade main application
P15-P30
IC Inscribed circle diameter
10.7 mm
ID Technical product number
6177211
IFS Insert mounting style code
5 - Special production, e.g. trough clamping
IH Insert hand
R - Right
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-00 - Regular Insert unspecified
L Cutting edge length
9.28 mm
LE Cutting edge effective length
10.5 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
MN1106 5R
Name Identifying order number
MNHU110608R-M IN2505
RE Corner radius
0.8 mm
S Insert thickness
8.1 mm
S1 Insert thickness total
8.1 mm
STDDES Standard designation
MNHU110608R
TCINS Tolerance class insert
H
W1 Insert width
10.7 mm
Working process
No working processes available
