MNHU110608PNR-M IN2505

Артикул: 6186996

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

COATN Coating

TiAIN+TiN

COMPC Company code

IL - Ingersoll

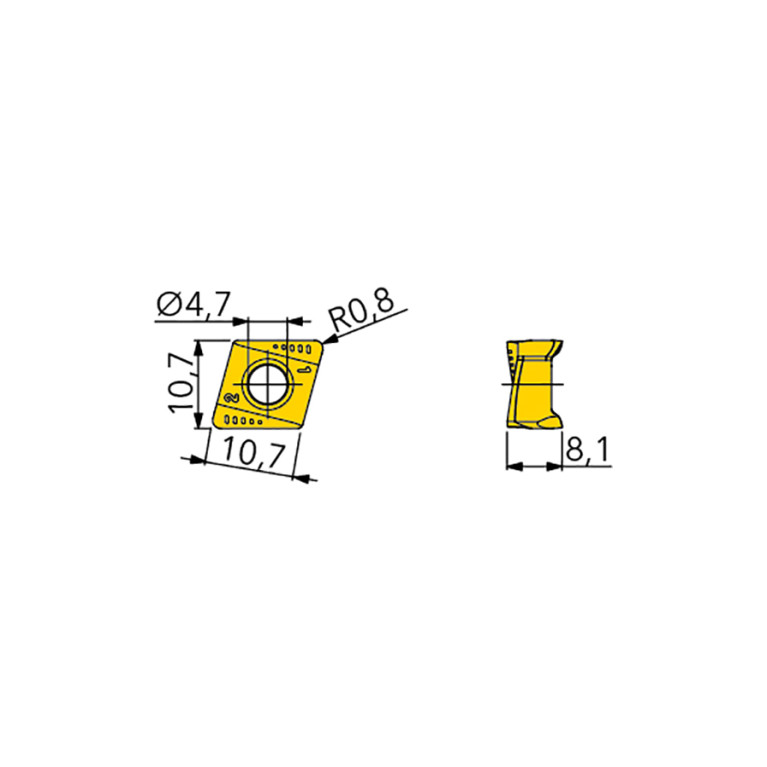

D1 Fixing hole diameter

4.7 mm

Delivery state

LL - Stock limited

DIN

MN1106 5N

EPSR Insert included angle

75 Degree

FamilyProducts

insert, 4-edged positive wiper insert with R0.8

GRD2ND Standard designation of the grade 2nd application

M15-M35

GRD3RD Standard designation of the grade 3rd application

K20-K40

GRDMFG Grade manufacturers designation

IN2505

GRDPRIO Standard designation of the grade main application

P15-P30

IC Inscribed circle diameter

10.7 mm

ID Technical product number

6186996

IFS Insert mounting style code

5 - Special production, e.g. trough clamping

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

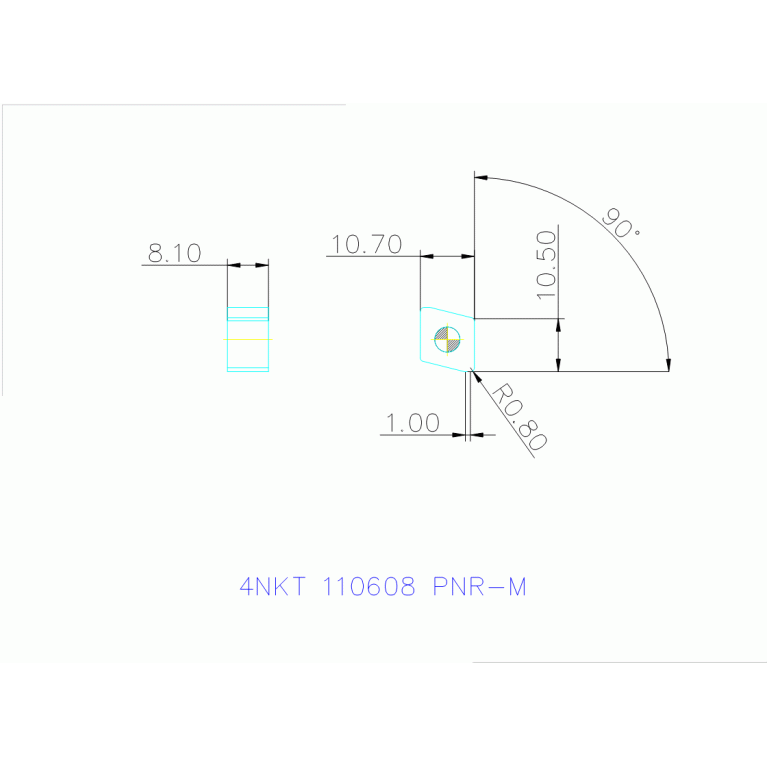

L Cutting edge length

9.28 mm

LE Cutting edge effective length

10.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

MN1106 5N

Name Identifying order number

MNHU110608PNR-M IN2505

RE Corner radius

0.8 mm

S Insert thickness

8.1 mm

S1 Insert thickness total

8.1 mm

STDDES Standard designation

MNHU110608PNR

TCINS Tolerance class insert

W1 Insert width

10.7 mm

Working process

No working processes available
