Главная Каталог продукции Toolunited 11 201-00 - Regular Insert unspecified MNHU060312R-PH IN2530

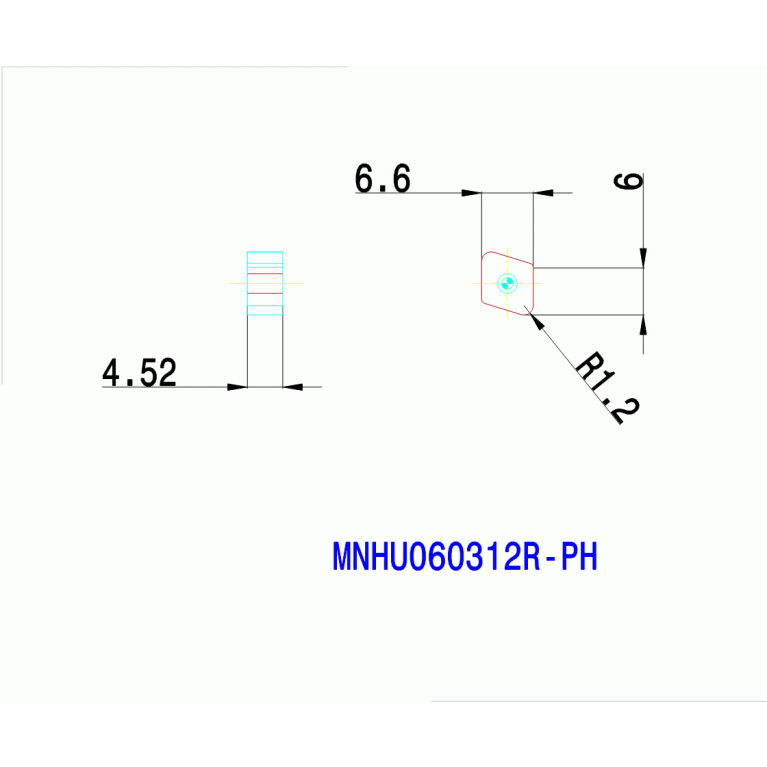

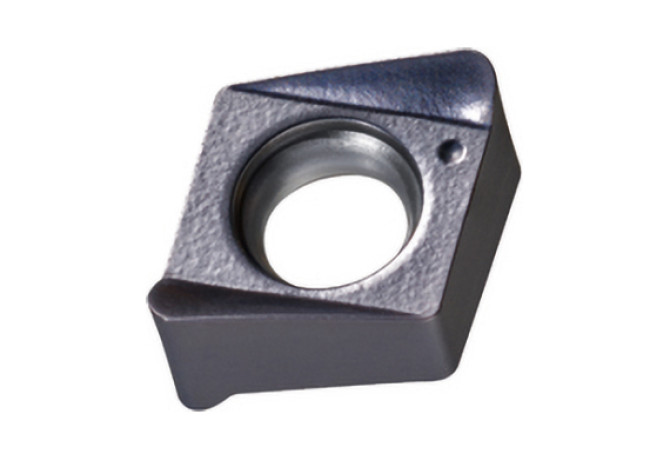

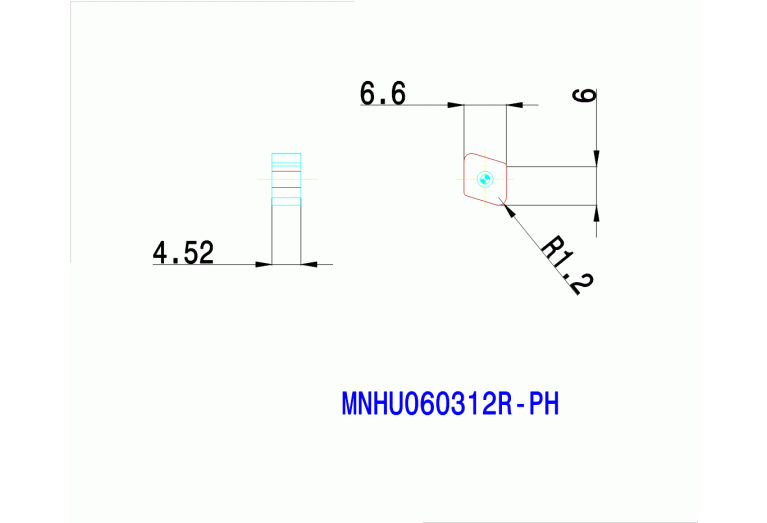

MNHU060312R-PH IN2530

Артикул: 6182503

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COATN Coating

TiAlN+TiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

3.4 mm

Delivery state

LL - Stock limited

DIN

MN0603 5R

EPSR Insert included angle

73 Degree

FamilyProducts

insert, four-edged, high-positive geometry R1,2

GRD2ND Standard designation of the grade 2nd application

M15-M30

GRD3RD Standard designation of the grade 3rd application

K20-K40

GRDMFG Grade manufacturers designation

IN2530

GRDPRIO Standard designation of the grade main application

P20-P40

IC Inscribed circle diameter

6.6 mm

ID Technical product number

6182503

IFS Insert mounting style code

5 - Special production, e.g. trough clamping

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

4.91 mm

LE Cutting edge effective length

6 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

MN0603 5R

Name Identifying order number

MNHU060312R-PH IN2530

RE Corner radius

1.2 mm

S Insert thickness

4.5 mm

S1 Insert thickness total

4.5 mm

STDDES Standard designation

MNHU060312R

TCINS Tolerance class insert

W1 Insert width

6.6 mm

Working process

No working processes available
