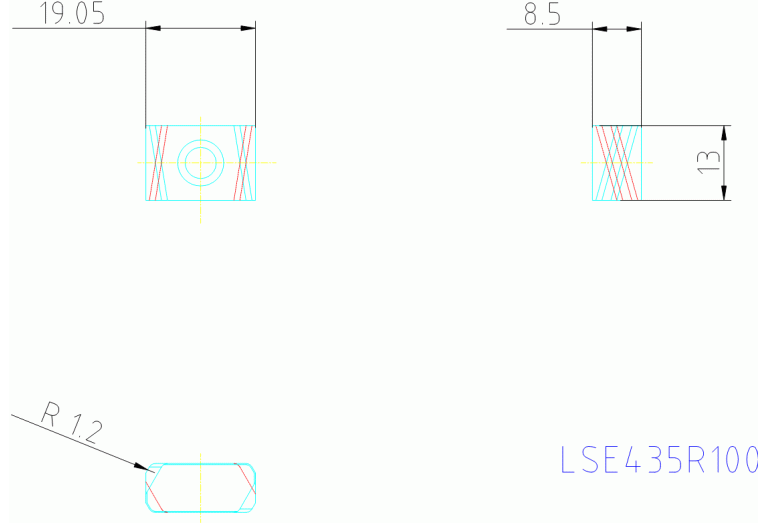

LSE435R100 ZA IN6530
LSE435R100 ZA IN6530
Артикул:
5858021
В наличии
Характеристики
CB Chip breaker face count
0 - Without chip breaker
COMPC Company code
IL - Ingersoll
D1 Fixing hole diameter
5.4 mm
Delivery state
LH - Stocked
DIN
IL-WSP-82
EPSR Insert included angle
90 Degree
FamilyProducts
insert, four-edged, positive geometry, with K-land, for heavy roughing
GRDMFG Grade manufacturers designation
ZA IN6530
ID Technical product number
5858021
IFS Insert mounting style code
3 - Counter bore for screws with taper angle from 40° to 60°
IH Insert hand
R - Right
Interface codes
J6 /
ISISO ISO property
0
ISYC Subclass
201-00 - Regular Insert unspecified
KCH Corner chamfer angle
30 Degree
L Cutting edge length
13.5 mm
LE Cutting edge effective length
15 mm
LOC-03-Connection-codes
J6 / J441 - connection code machine end
LOC-03-DIN
IL-WSP-82
Name Identifying order number
LSE435R100 ZA IN6530
S Insert thickness
8.5 mm
S1 Insert thickness total
8.5 mm
TCINS Tolerance class insert
E
W1 Insert width
13 mm
Working process
No working processes available
