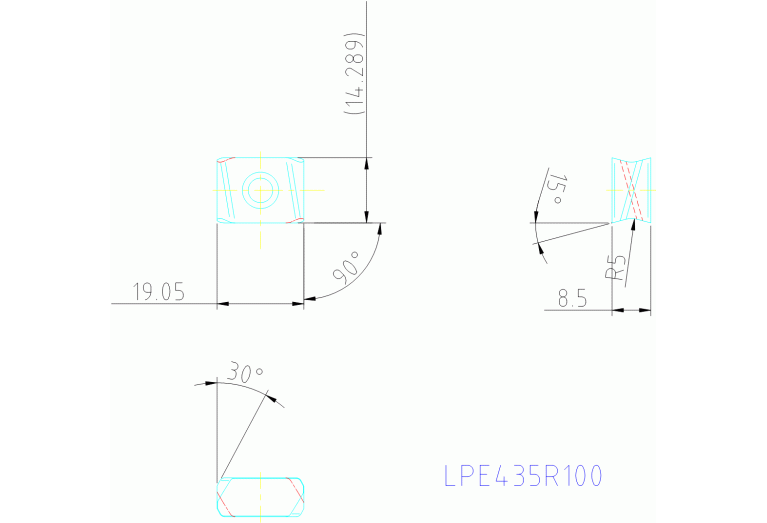

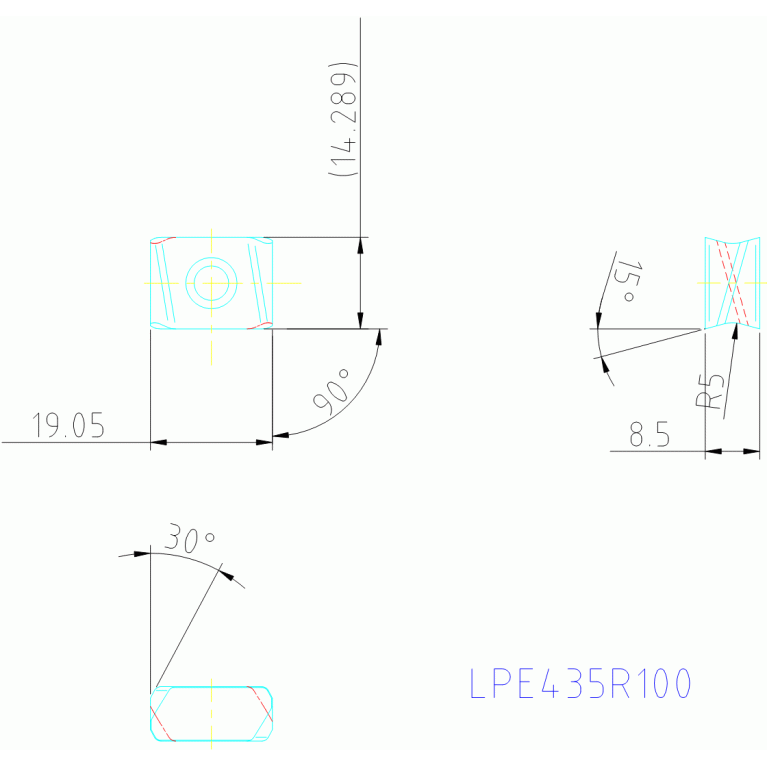

LPE435R100 - B IN2015

Артикул: 5866791

В наличии

В корзину

Описание

Характеристики

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

COATN Coating

TiAIN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

5.4 mm

Delivery state

LH - Stocked

DIN

IL-WSP-196

EPSR Insert included angle

90 Degree

FamilyProducts

insert, four-edged, positive geometry, with K-land, for roughing

GRD2ND Standard designation of the grade 2nd application

M20-M40

GRD3RD Standard designation of the grade 3rd application

K20-K40

GRDMFG Grade manufacturers designation

IN2015

GRDPRIO Standard designation of the grade main application

P20-P35

ID Technical product number

5866791

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

13.5 mm

LE Cutting edge effective length

15 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-196

Name Identifying order number

LPE435R100 - B IN2015

S Insert thickness

8.5 mm

S1 Insert thickness total

8.5 mm

TCINS Tolerance class insert

W1 Insert width

14.3 mm

Working process

FEC - Square shoulder milling,FPL - Face milling,FPR - Profile milling
