5616773500
5616773500
Артикул:
5616773500
В наличии
Характеристики
CBMD Chip breaker manufacturers designation
-MR2
COATN Coating
CTPP211
COMPC Company code
CE - Ceratizit
D1 Fixing hole diameter
5 mm
Delivery state valid from
10/1/2021
FamilyProducts
HM-TORUS-FRÄSWENDEPLATTE

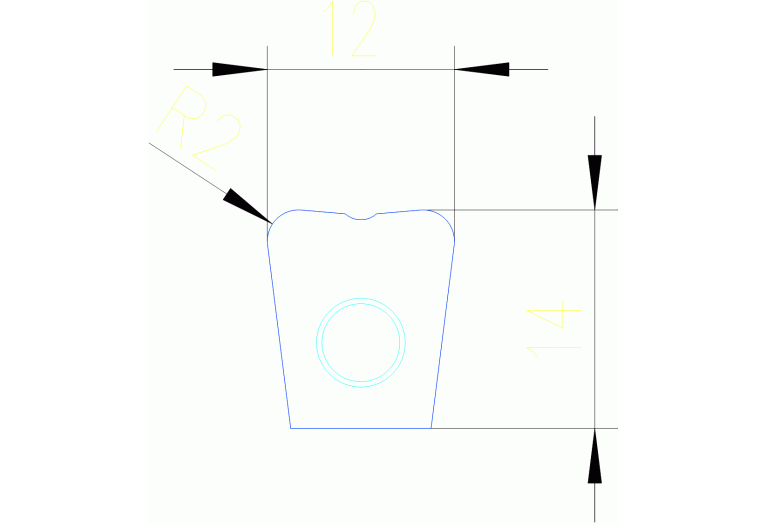

IC Inscribed circle diameter
12 mm
IH Insert hand
R - Right
INSL Insert length
14 mm
Interface codes
/
ISISO ISO property
1
ISYC Subclass
201-00 - Regular Insert unspecified
L Cutting edge length
14 mm
Name Identifying order number
5616773500
RE Corner radius
2 mm
S Insert thickness
3 mm
TCINS Tolerance class insert
H
Working process
No working processes available
