Главная Каталог продукции Toolunited 11 201-00 - Regular Insert unspecified 51019205

51019205

Артикул: 51019205

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

BS Wiper edge length

1 mm

CBMD Chip breaker manufacturers designation

-M50

CECC Cutting edge condition code

S - Chamfered and rounded

COATN Coating

CTPM225

COMPC Company code

CE - Ceratizit

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

10/1/2021

FamilyProducts

HM-FRÄSWENDEPLATTE

GRD2ND Standard designation of the grade 2nd application

HC-P25

GRDPRIO Standard designation of the grade main application

HC-M25

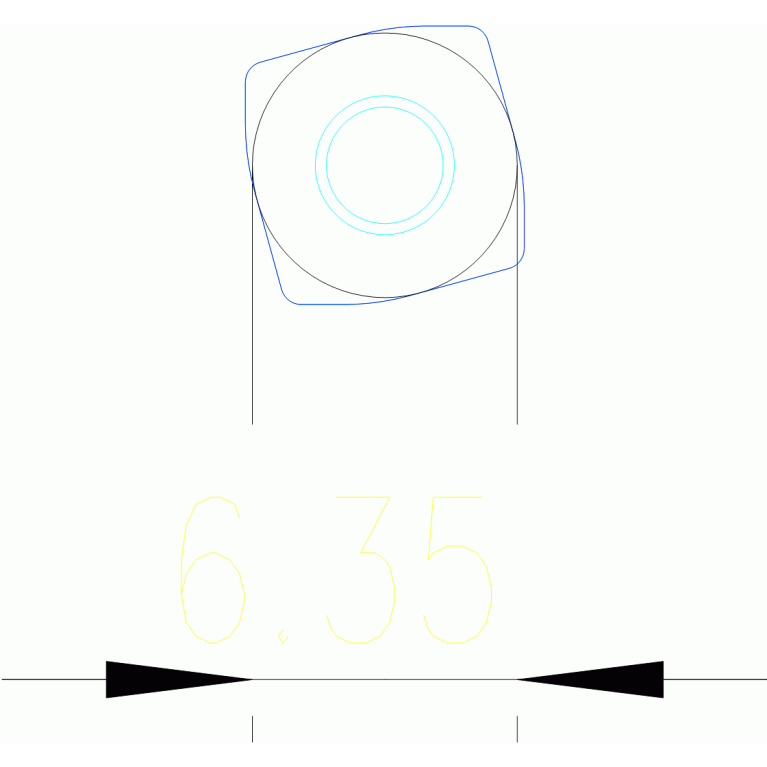

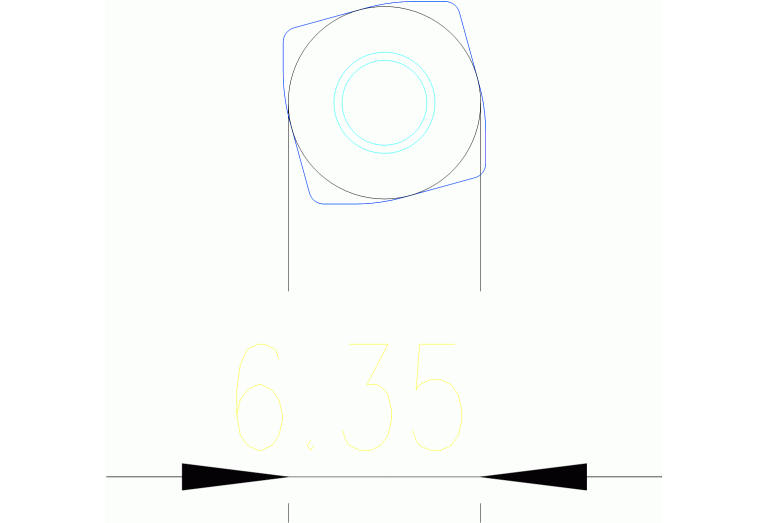

IC Inscribed circle diameter

6.35 mm

IH Insert hand

R - Right

Interface codes

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

6 mm

Name Identifying order number

51019205

RE Corner radius

0.5 mm

S Insert thickness

2.75 mm

TCINS Tolerance class insert

Working process

No working processes available
