Главная Каталог продукции Toolunited 11 201-00 - Regular Insert unspecified 5101791001

5101791001

Артикул: 5101791001

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

10 Degree

BS Wiper edge length

1.3 mm

CBMD Chip breaker manufacturers designation

-M50

CECC Cutting edge condition code

S - Chamfered and rounded

COATN Coating

CTCM245

COMPC Company code

CE - Ceratizit

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

10/1/2021

FamilyProducts

HM-FRÄSWENDEPLATTE

GRD2ND Standard designation of the grade 2nd application

HC-M45

GRDPRIO Standard designation of the grade main application

HC-P45

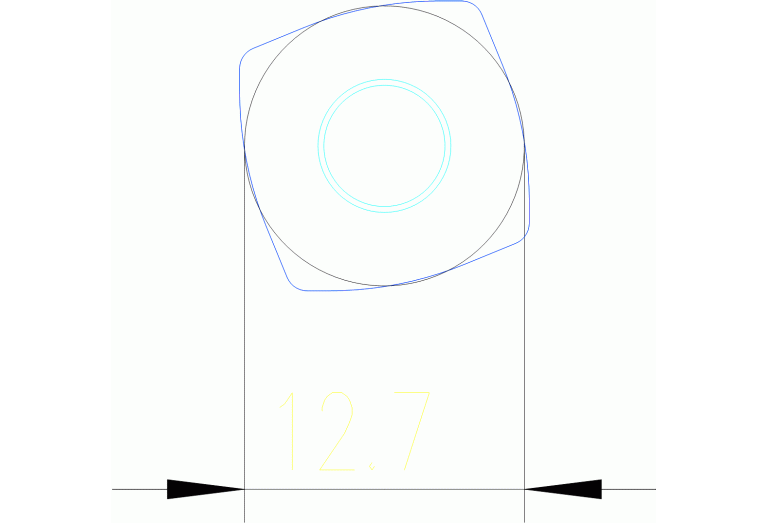

IC Inscribed circle diameter

12.7 mm

IH Insert hand

R - Right

Interface codes

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

12 mm

Name Identifying order number

5101791001

RE Corner radius

1 mm

S Insert thickness

4.76 mm

TCINS Tolerance class insert

Working process

No working processes available
