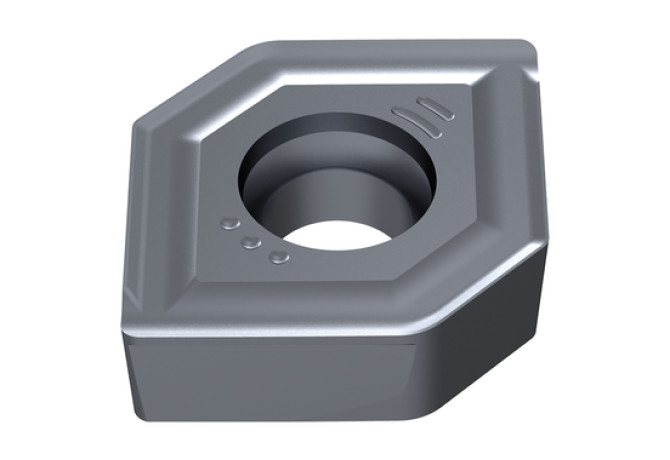

Главная Каталог продукции Toolunited 11 201-00 - Regular Insert unspecified 51014225

51014225

Артикул: 51014225

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

3 Degree

BS Wiper edge length

11.95 mm

CBMD Chip breaker manufacturers designation

-M50

CECC Cutting edge condition code

S - Chamfered and rounded

COATN Coating / Покрытие

CTPM225

COMPC Company code

CE - Ceratizit

D1 Fixing hole diameter

6 mm

Delivery state valid from

10/1/2021

FamilyProducts

HM-FRÄSWENDEPLATTE

GRD2ND Standard designation of the grade 2nd application

HC-P25

GRDPRIO Standard designation of the grade main application

HC-M25

IC Inscribed circle diameter

17.08 mm

IH Insert hand

R - Right

Interface codes

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

Name Identifying order number

51014225

RE Corner radius

2.5 mm

S Insert thickness

5.56 mm

TCINS Tolerance class insert

Working process

No working processes available
