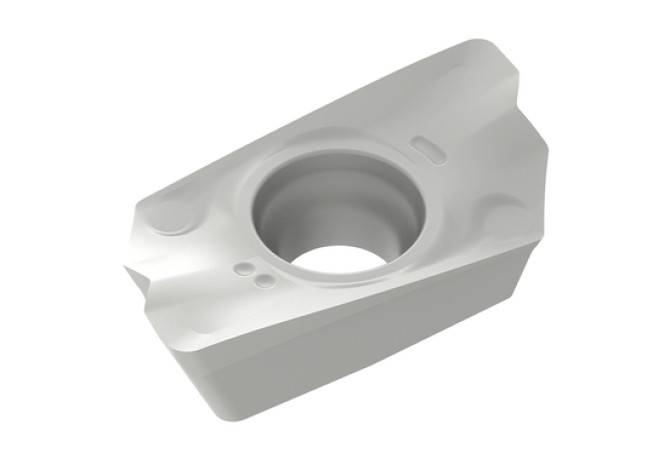

Главная Каталог продукции Toolunited 11 201-00 - Regular Insert unspecified 50473532

50473532

Артикул: 50473532

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

BS Wiper edge length

1.9 mm

CBMD Chip breaker manufacturers designation

-F40

CECC Cutting edge condition code

E - Rounded

COATN Coating

CTC5240

COMPC Company code

CE - Ceratizit

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

10/1/2021

FamilyProducts

HM-FRÄSWENDEPLATTE

GRDPRIO Standard designation of the grade main application

HC-S40

IC Inscribed circle diameter

9.3 mm

IH Insert hand

R - Right

Interface codes

ISISO ISO property

ISYC Subclass

201-00 - Regular Insert unspecified

L Cutting edge length

14.8 mm

Name Identifying order number

50473532

RE Corner radius

3.2 mm

S Insert thickness

5.56 mm

TCINS Tolerance class insert

K - Cold formed

Working process

No working processes available
