Главная Каталог продукции Toolunited 11 309-01 - Tool holder for longitudinal and transversal turning TDUNL 2525 M1305

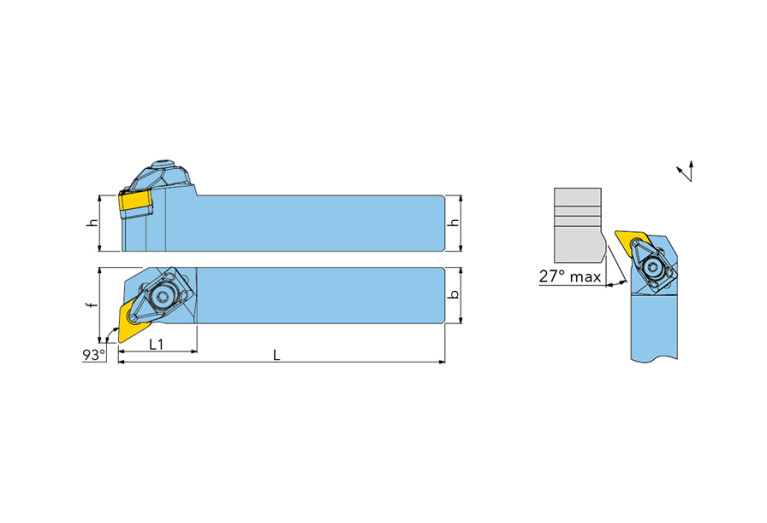

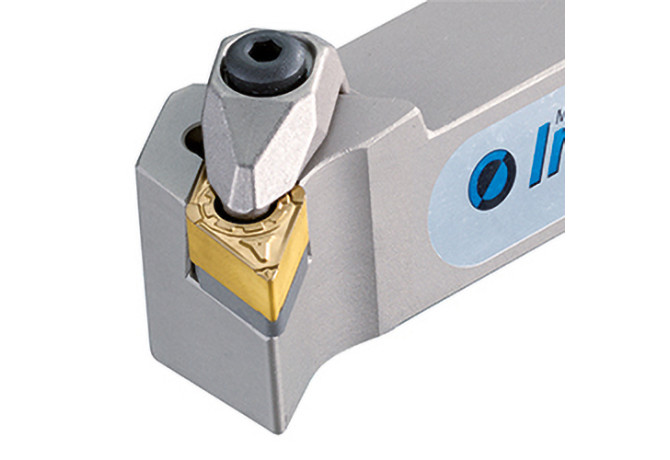

TDUNL 2525 M1305

TDUNL 2525 M1305 TDUNL 2525 M1305 TDUNL 2525 M1305 TDUNL 2525 M1305

TDUNL 2525 M1305

Ingersoll
Артикул: 6117334
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
3
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state
NL - Discontinued
DIN
VKT25250105
DIN CSW1
DN1305012N
EPSR Insert included angle
55 Degree
FamilyProducts
TDUNR/L 1305
HAND Cutting direction
L - Left
ID Technical product number
6117334
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
93 Degree
LF Functional length
150 mm
LH Head length
28 mm
LOC-03 B Shank width
25 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
2525
LOC-03 H Shank height
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT25250105
MIID Master insert identification
DNMG1305
Name Identifying order number

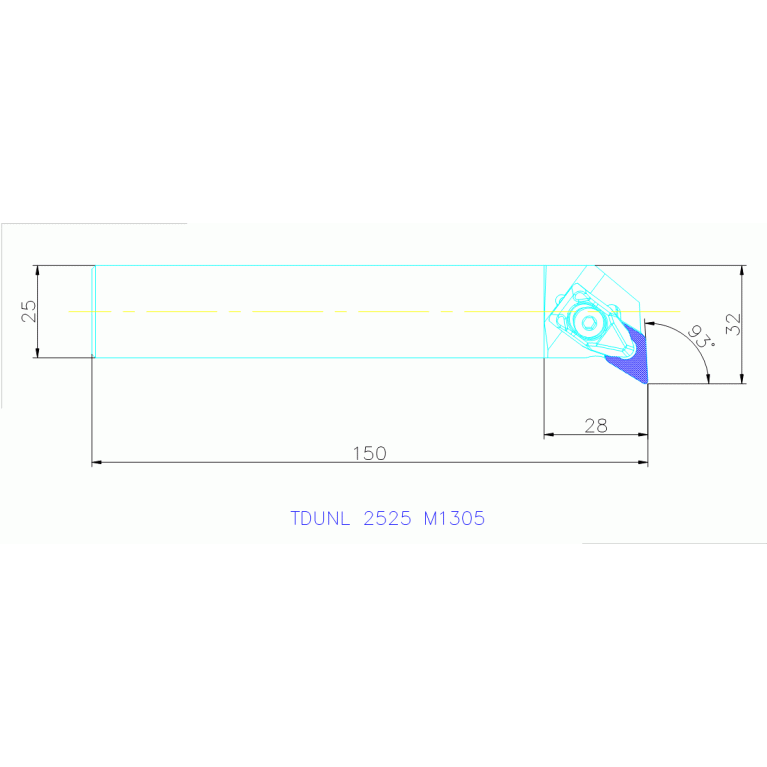

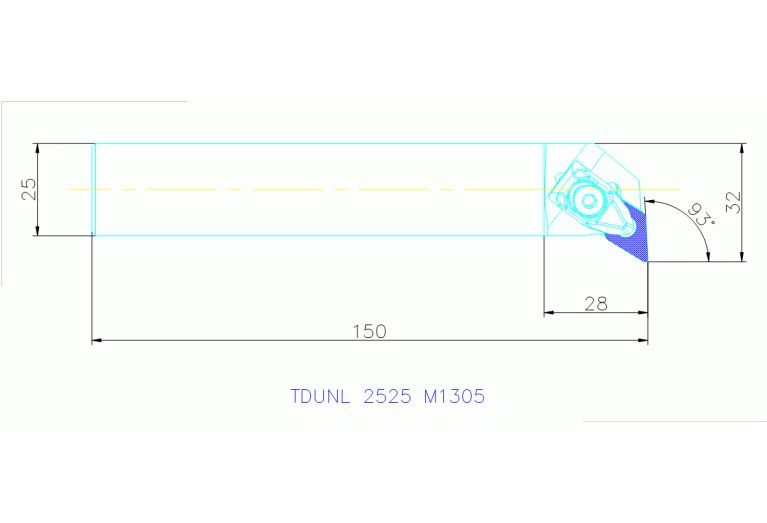

TDUNL 2525 M1305
OAL Overall length
150 mm
STDDES Standard designation
TDUNL 2525 M1305
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
A - offset shank design
WF Functional width
32 mm
Working process
No working processes available
WT Weight of item
0.72 kg
