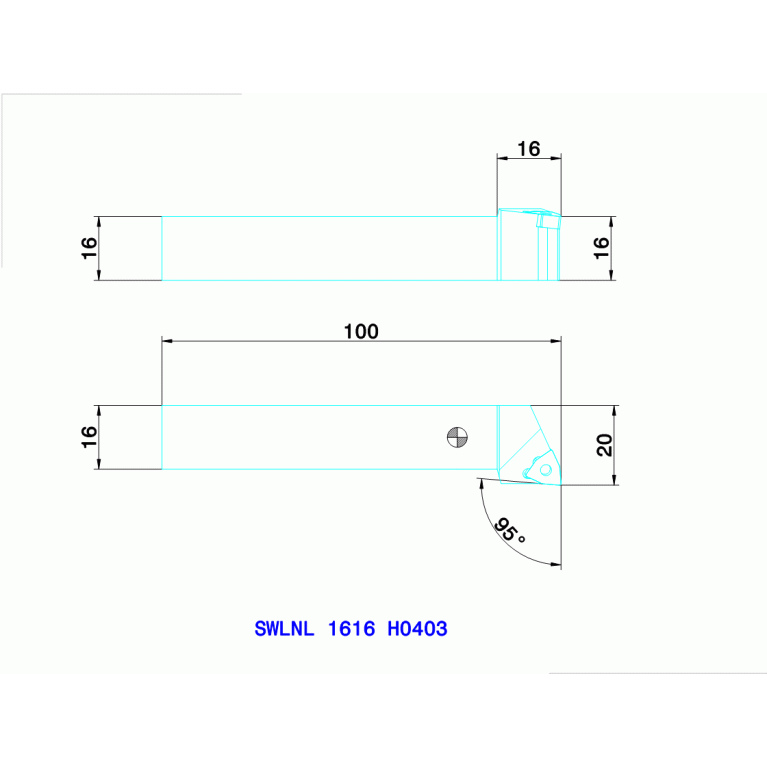

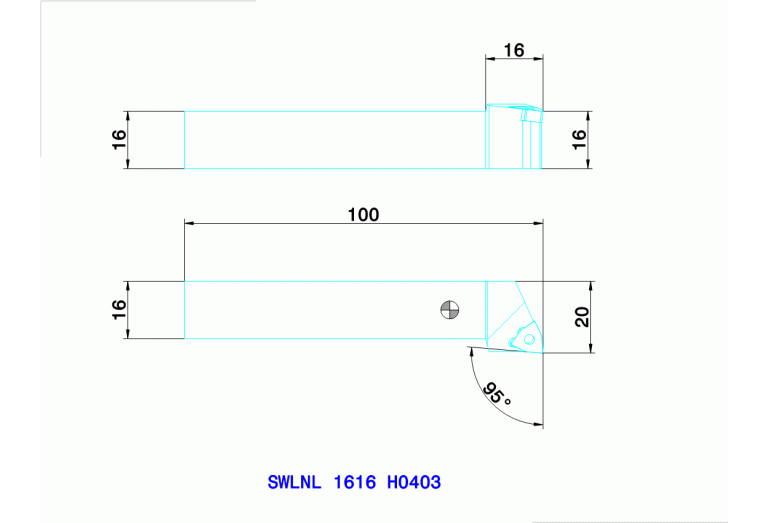

SWLNL 1616 H0403

SWLNL 1616 H0403 SWLNL 1616 H0403 SWLNL 1616 H0403 SWLNL 1616 H0403

SWLNL 1616 H0403

Ingersoll
Артикул: 6320086
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
7
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state
LA - Soon discontinued
DIN
VKT16160105
DIN CSW1
WN0403047N
EPSR Insert included angle
80 Degree
FamilyProducts
SWLNR/L 0403
HAND Cutting direction
L - Left
ID Technical product number
6320086
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree
LF Functional length
100 mm
LH Head length
16 mm
LOC-03 B Shank width
16 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
1616
LOC-03 H Shank height
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT16160105
MIID Master insert identification
WNMX0403
Name Identifying order number
SWLNL 1616 H0403
OAL Overall length
100 mm
STDDES Standard designation
SWLNL 1616 H0403
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
A - offset shank design
WF Functional width
20 mm
Working process
No working processes available
WT Weight of item
0.22 kg
