Главная Каталог продукции Toolunited 11 309-01 - Tool holder for longitudinal and transversal turning SVJCR 2525 J11-IHP

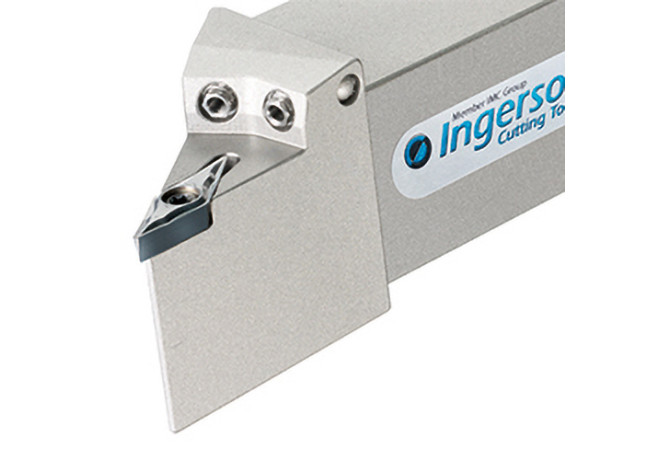

SVJCR 2525 J11-IHP

SVJCR 2525 J11-IHP SVJCR 2525 J11-IHP SVJCR 2525 J11-IHP

SVJCR 2525 J11-IHP

Ingersoll
Артикул: 5891794
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
BLDA Tool style code Position A
3
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state
LA - Soon discontinued
DIN
VKT25250115
DIN CSW1
VC1103013N
EPSR Insert included angle
35 Degree
FamilyProducts
SVJCR/L-IHP
HAND Cutting direction
R - Right
ID Technical product number
5891794
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning

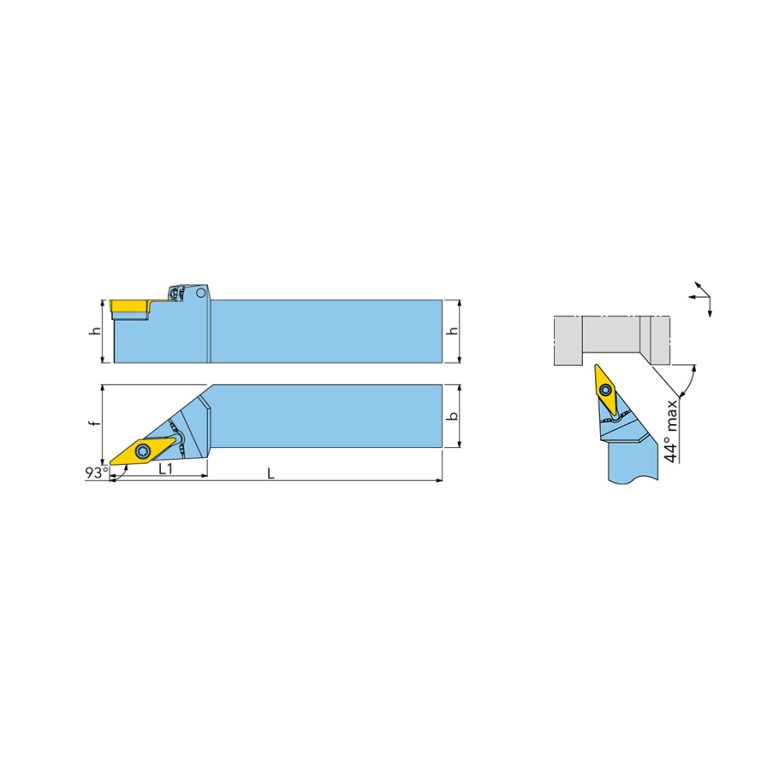

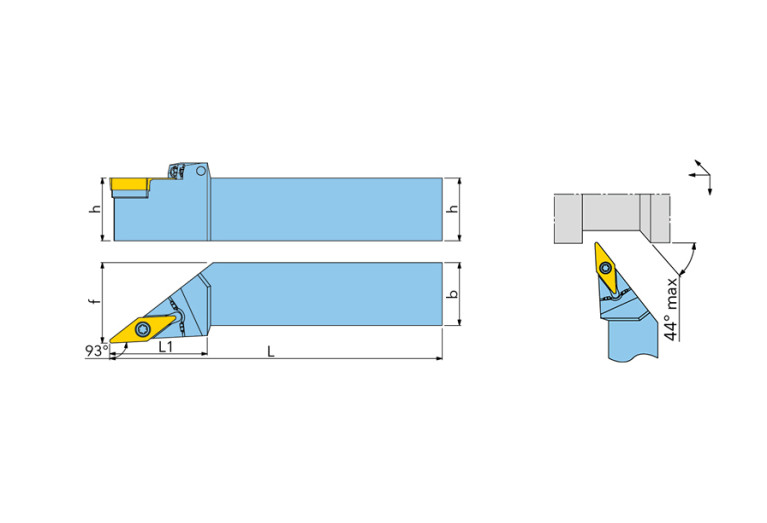

KAPR Tool cutting edge angle
93 Degree
LF Functional length
106.5 mm
LH Head length
35 mm
LOC-03 B Shank width
25 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
2525
LOC-03 H Shank height
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT25250115
MIID Master insert identification
VC 1103
Name Identifying order number
SVJCR 2525 J11-IHP
OAL Overall length
106.5 mm
STDDES Standard designation
SVJCR 2525 J11-IHP
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
A - offset shank design
WF Functional width
32 mm
Working process
No working processes available
