Главная Каталог продукции Toolunited 11 309-01 - Tool holder for longitudinal and transversal turning SVJCL 1212 K11-SH-TB

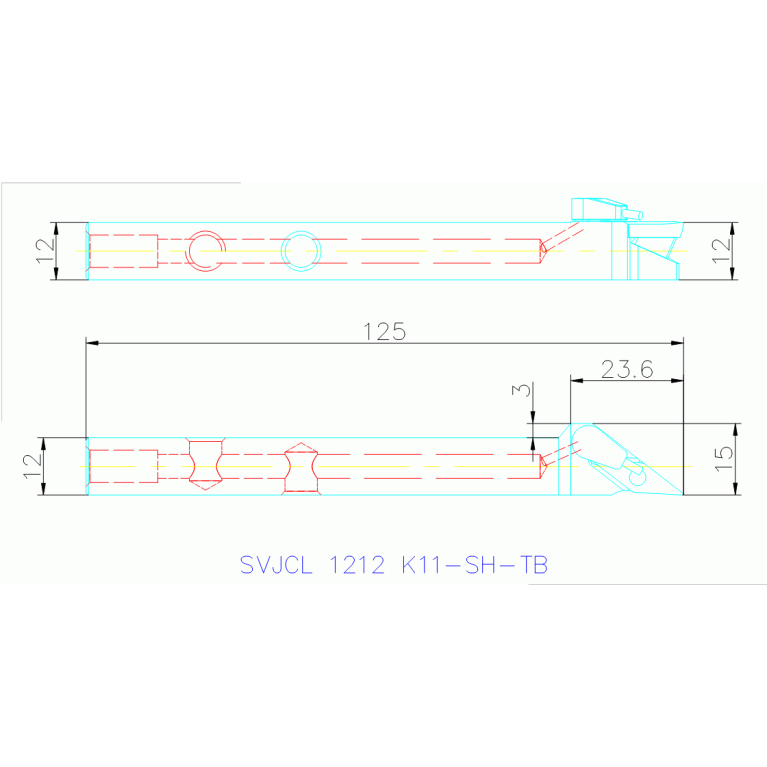

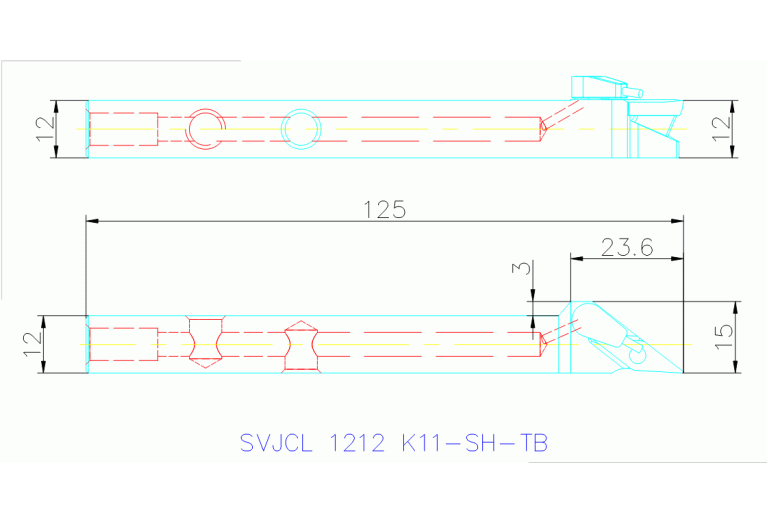

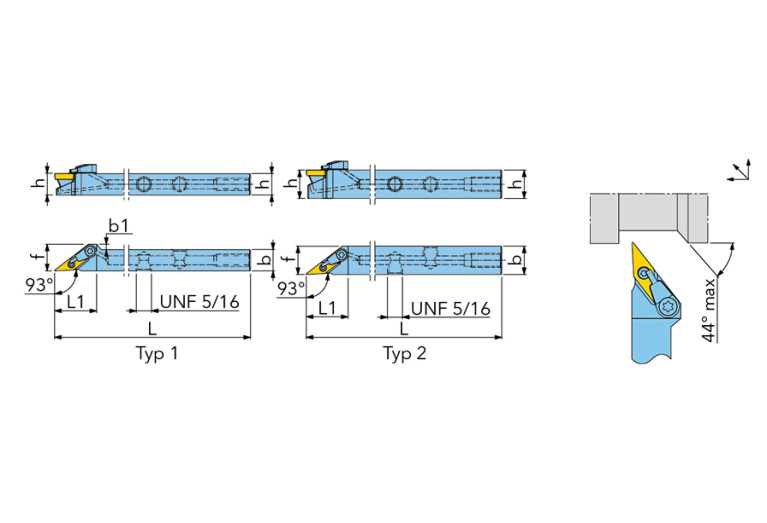

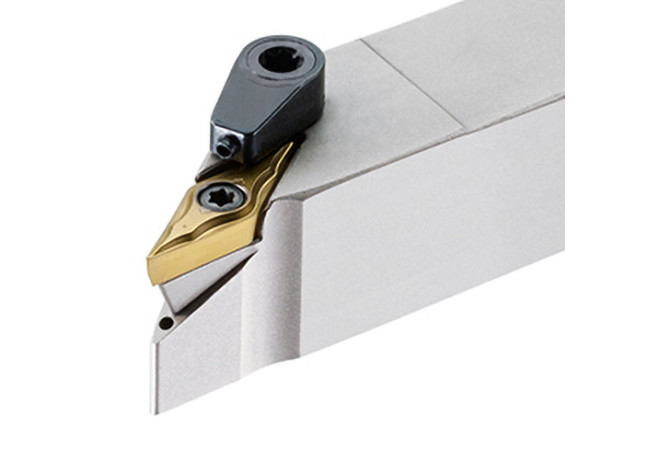

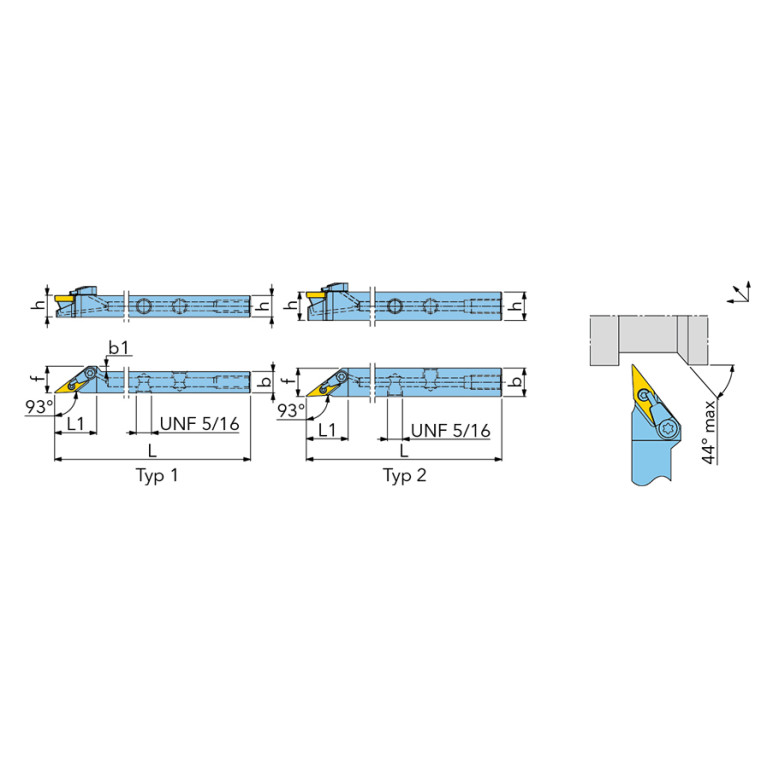

SVJCL 1212 K11-SH-TB

SVJCL 1212 K11-SH-TB SVJCL 1212 K11-SH-TB SVJCL 1212 K11-SH-TB SVJCL 1212 K11-SH-TB

SVJCL 1212 K11-SH-TB

Ingersoll
Артикул: 6177292
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
BLDA Tool style code Position A
3
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state
LA - Soon discontinued
DIN
VKT12120115
DIN CSW1
VC1103013N
EPSR Insert included angle
35 Degree
FamilyProducts
SVJCR/L-SH TB
HAND Cutting direction
L - Left
ID Technical product number
6177292
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
93 Degree
LF Functional length
125 mm
LH Head length
23.6 mm
LOC-03 B Shank width
12 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
1212
LOC-03 H Shank height
12 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT12120115
MIID Master insert identification
VC 1103
Name Identifying order number
SVJCL 1212 K11-SH-TB
OAL Overall length
125 mm
STDDES Standard designation
SVJCL 1212 K11-SH-TB
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
A - offset shank design
WF Functional width
12 mm
Working process
No working processes available
WT Weight of item
0.11 kg
