Главная Каталог продукции Toolunited 11 309-01 - Tool holder for longitudinal and transversal turning SFXCN 2525 M1006

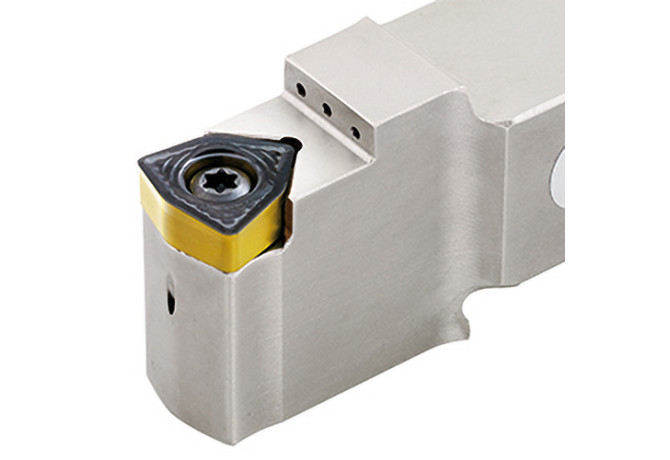

SFXCN 2525 M1006

SFXCN 2525 M1006 SFXCN 2525 M1006 SFXCN 2525 M1006 SFXCN 2525 M1006

SFXCN 2525 M1006

Ingersoll
Артикул: 6324819
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
BLDA Tool style code Position A
99
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state
LA - Soon discontinued
DIN
VKT25250105
DIN CSW1
FC1006167N
FamilyProducts
SFXCN
HAND Cutting direction
N - Neutral
ID Technical product number
6324819
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
15 Degree

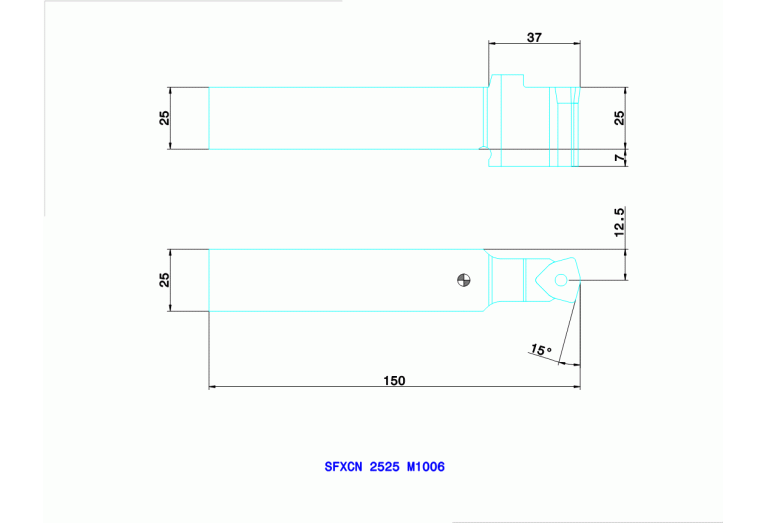

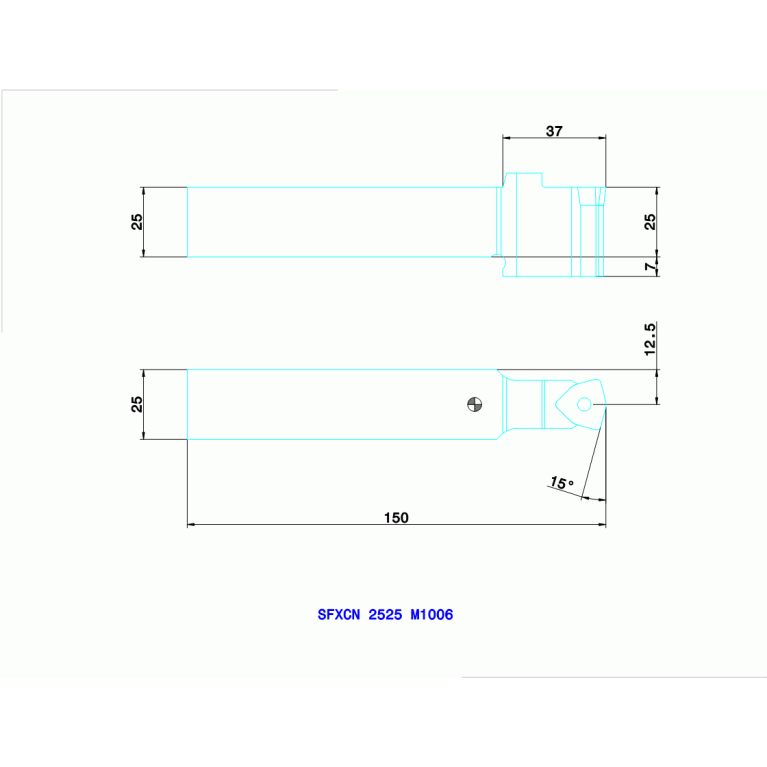

LF Functional length
150 mm
LH Head length
37 mm
LOC-03 B Shank width
25 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
2525
LOC-03 H Shank height
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT25250105
MIID Master insert identification
FCMX 1006
Name Identifying order number
SFXCN 2525 M1006
OAL Overall length
150 mm
STDDES Standard designation
SFXCN 2525 M1006
SX Shank cross section shape code
01 - Square shank
WF Functional width
12.5 mm
Working process
No working processes available
WT Weight of item
0.75 kg
