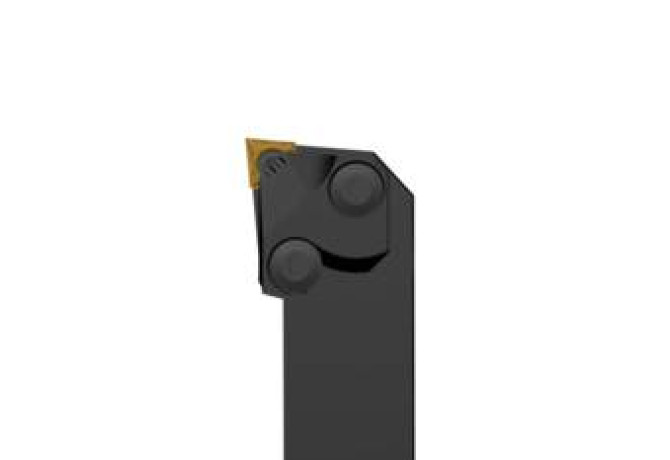

SCLCR2020K12JET

SCLCR2020K12JET SCLCR2020K12JET SCLCR2020K12JET SCLCR2020K12JET

SCLCR2020K12JET

Seco
Артикул: 02605838
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
B3A Inscribed circle diameter Pos. A
12.7 mm
BLDA Tool style code Position A
3
C1A Insert thickness Pos. A
4.76 mm
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
SO - SECO Tools
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.397 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/24/2018
DIN
VKT20200105
EPSR Insert included angle
80 Degree
FamilyProducts
SCLCR2020K12JET
GAMO Rake angle orthogonal
0 Degree
HAND Cutting direction
R - Right
ID Technical product number
02605838
Interface codes
J6 /
Interface codes CSW1
/ J441
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO CSW1
ISO$CC1204**3RB****
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning

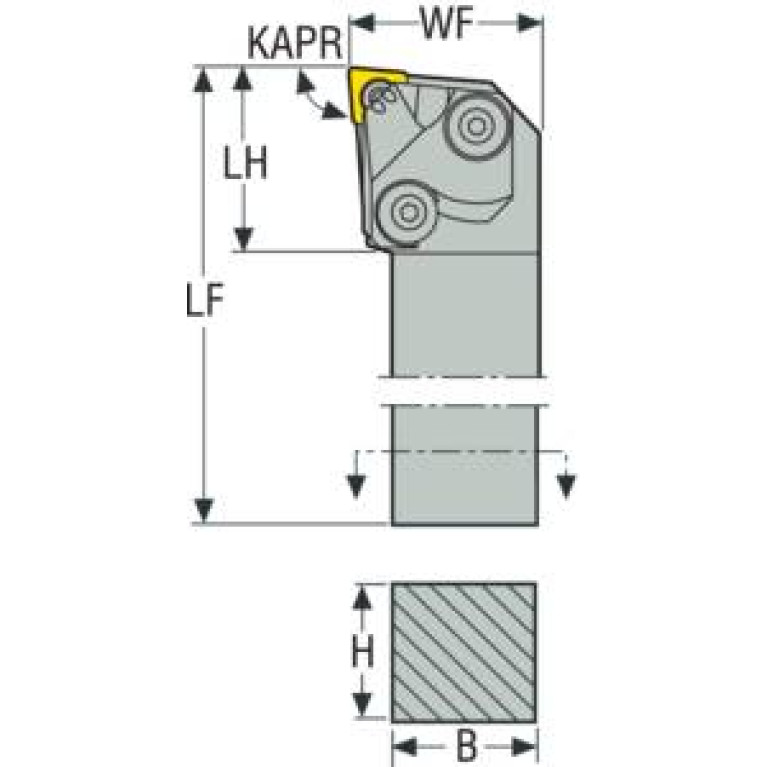

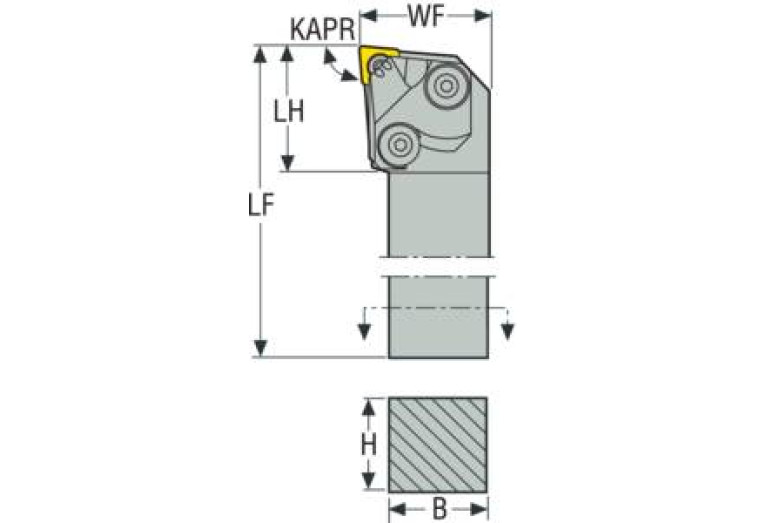

KAPR Tool cutting edge angle
95 Degree
LAMS Inclination angle
0 Degree

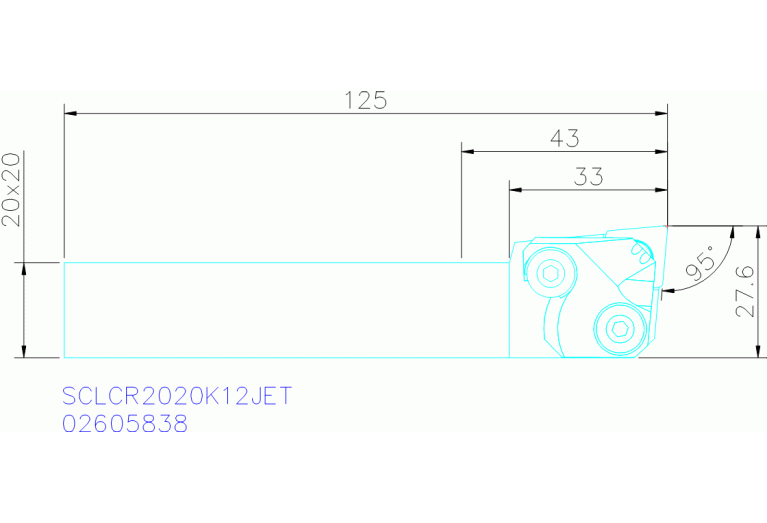

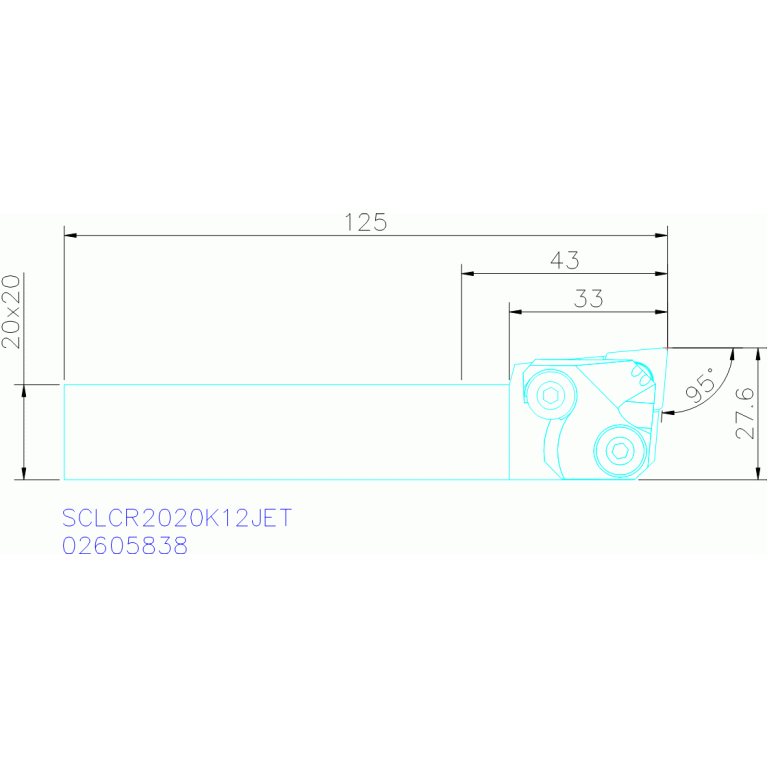

LF Functional length
125 mm
LH Head length
33 mm
LOC-03 B Shank width
20 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
2020
LOC-03 H Shank height
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT20200105
MIID Master insert identification
CCGW120404S-01020-L1-B
MTP Clamping type code
S - Screwed across bore with, counter bore
Name Identifying order number
SCLCR2020K12JET
STDDES Standard designation
SCLCR2020K12JET
THSC Tool holder shape code
A - offset shank design
WF Functional width
27 mm
Working process
No working processes available
WT Weight of item
0.5 kg
