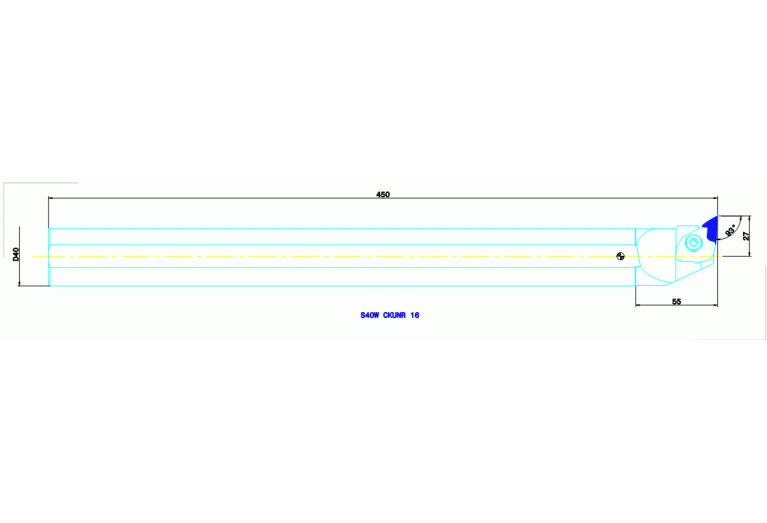

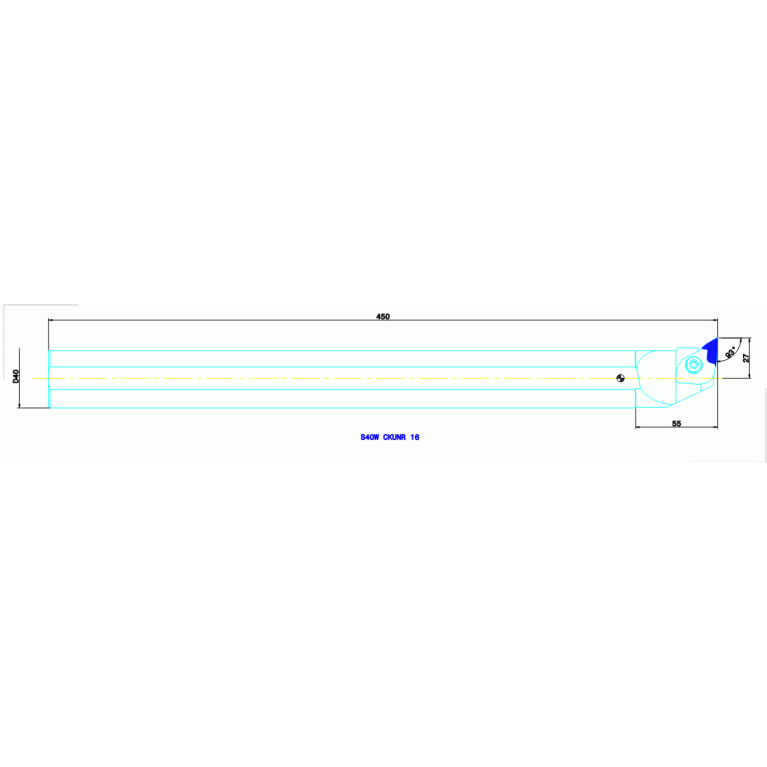

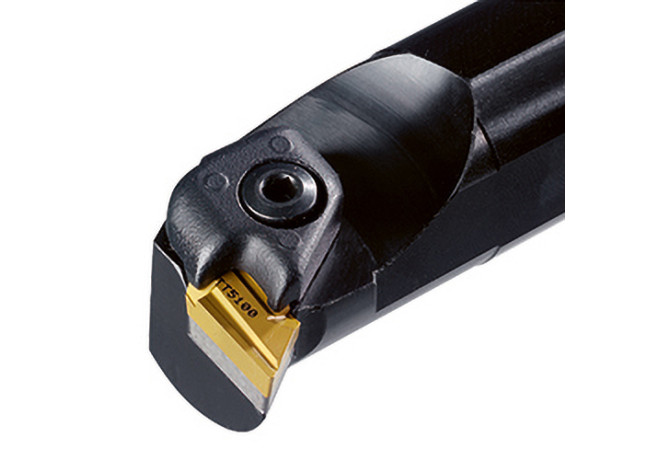

S40W CKUNR 16

S40W CKUNR 16 S40W CKUNR 16 S40W CKUNR 16 S40W CKUNR 16

S40W CKUNR 16

Ingersoll
Артикул: 3601349
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
5
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
ZYL04001105
DIN CSW1
KN1604057N
FamilyProducts
S-CKUNR/L
HAND Cutting direction
R - Right
ID Technical product number
3601349
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
93 Degree
LF Functional length
450 mm
LOC-03 CCFMS Connection code form
11
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03 H Shank height
37 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04001105
MIID Master insert identification
KNUX 1604 L
Name Identifying order number
S40W CKUNR 16
OAL Overall length
450 mm
STDDES Standard designation
S40W CKUNR 16
THSC Tool holder shape code
A - offset shank design
WF Functional width
27 mm
Working process
No working processes available
