Главная Каталог продукции Toolunited 11 309-01 - Tool holder for longitudinal and transversal turning S40T TDZNL 1305

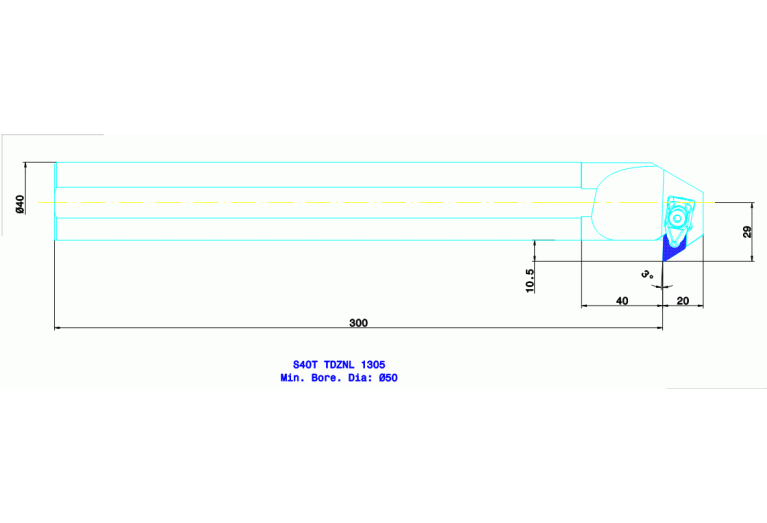

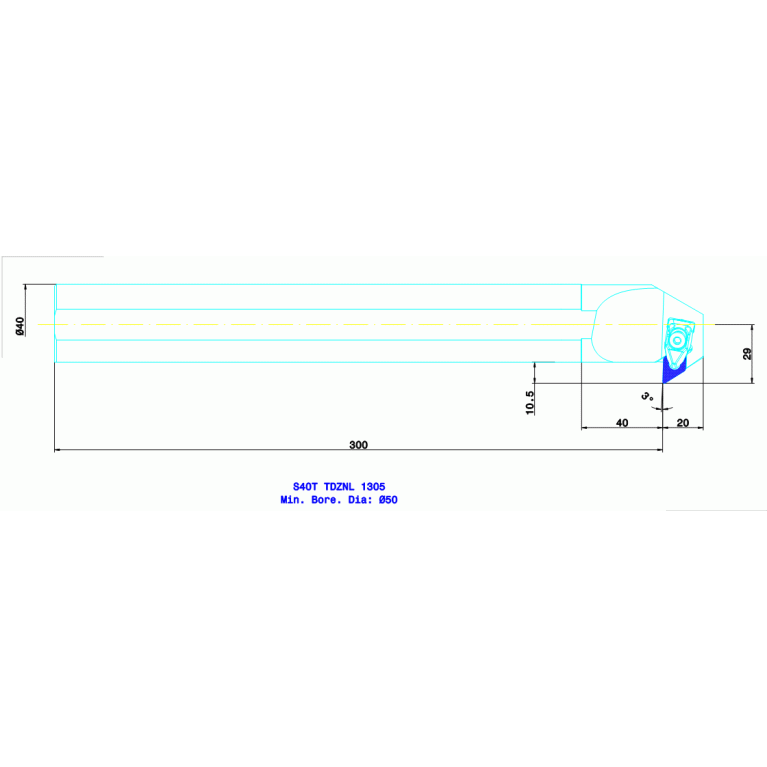

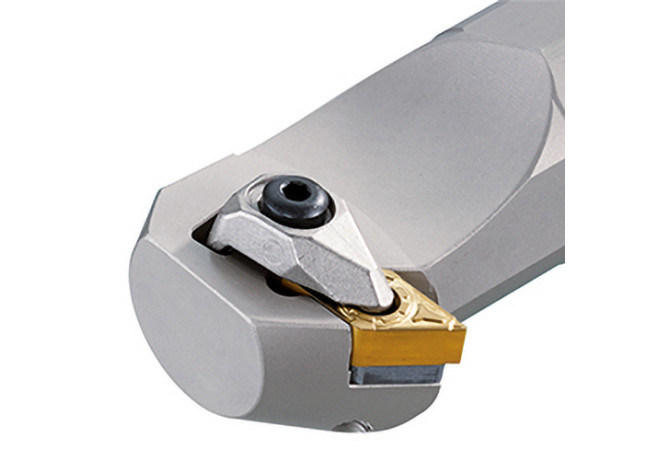

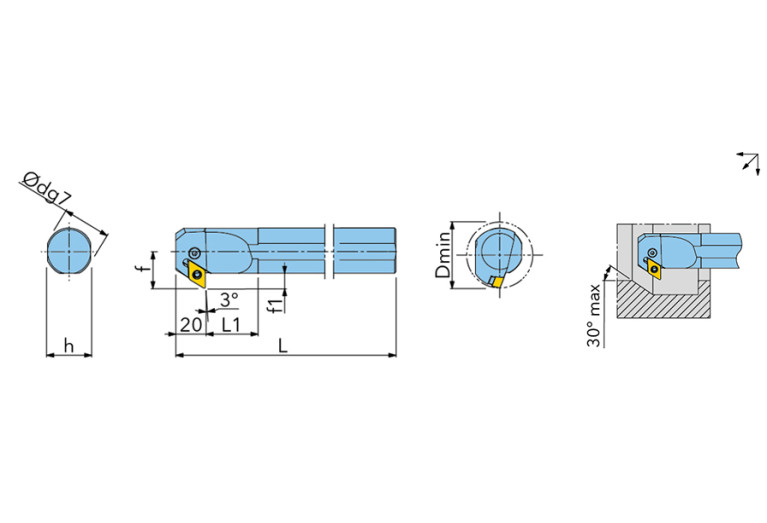

S40T TDZNL 1305

S40T TDZNL 1305 S40T TDZNL 1305 S40T TDZNL 1305 S40T TDZNL 1305

S40T TDZNL 1305

Ingersoll
Артикул: 6130450
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
3
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state
NL - Discontinued
DIN
ZYL04001105
DIN CSW1
DN1305012N
DMIN Minimum bore diameter
50 mm
EPSR Insert included angle
55 Degree
FamilyProducts
S-TDZNR/L 1305
HAND Cutting direction
L - Left
ID Technical product number
6130450
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
93 Degree
LF Functional length
300 mm
LH Head length
40 mm
LOC-03 CCFMS Connection code form
11
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03 H Shank height
37 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04001105
MIID Master insert identification
DNMG1305
Name Identifying order number
S40T TDZNL 1305
OAL Overall length
300 mm
STDDES Standard designation
S40T TDZNL 1305
WF Functional width
39 mm
Working process
No working processes available
WT Weight of item
2.89 kg
