Главная Каталог продукции Toolunited 11 309-01 - Tool holder for longitudinal and transversal turning S40T HCLNL 0904

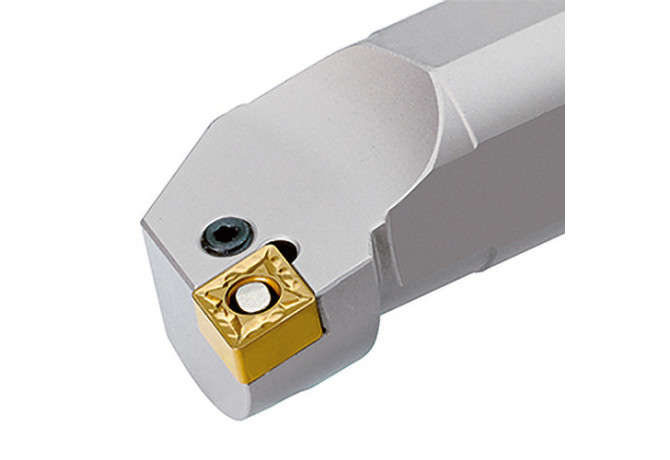

S40T HCLNL 0904

S40T HCLNL 0904 S40T HCLNL 0904 S40T HCLNL 0904 S40T HCLNL 0904

S40T HCLNL 0904

Ingersoll
Артикул: 6119683
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
3
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state
NL - Discontinued
DIN
ZYL04001105
DIN CSW1
CN0904012N
DMIN Minimum bore diameter
50 mm
EPSR Insert included angle
80 Degree
FamilyProducts
S-HCLNR/L 0904
HAND Cutting direction
L - Left
ID Technical product number
6119683
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree

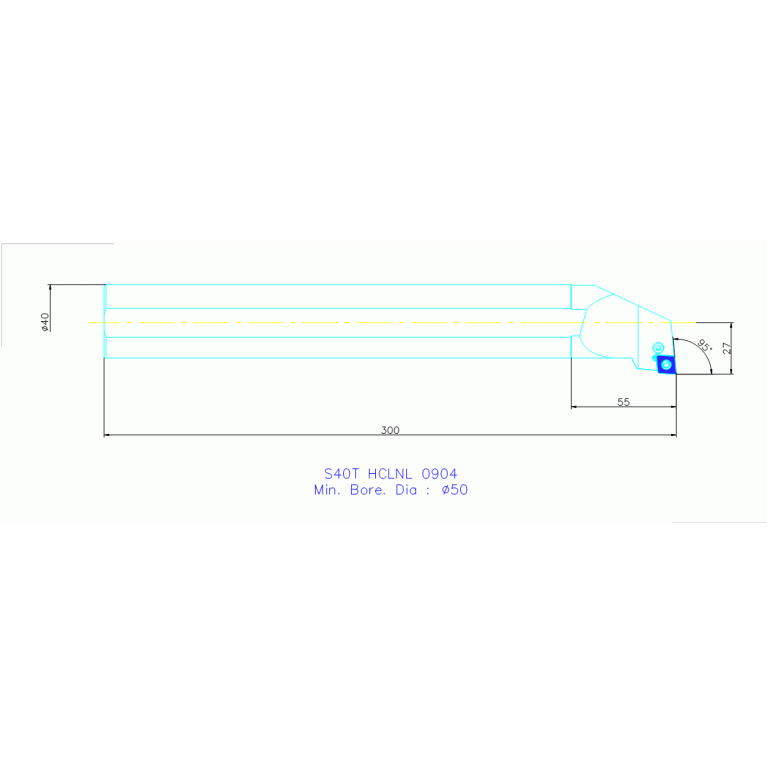

LF Functional length
300 mm
LH Head length
55 mm
LOC-03 CCFMS Connection code form
11
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03 H Shank height
37 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL04001105
MIID Master insert identification
CNM 0904
Name Identifying order number
S40T HCLNL 0904
OAL Overall length
300 mm
STDDES Standard designation
S40T HCLNL 0904
THSC Tool holder shape code
A - offset shank design
WF Functional width
27 mm
Working process
No working processes available
WT Weight of item
2.69 kg
