Главная Каталог продукции Toolunited 11 309-01 - Tool holder for longitudinal and transversal turning S32S TWLNR 0604

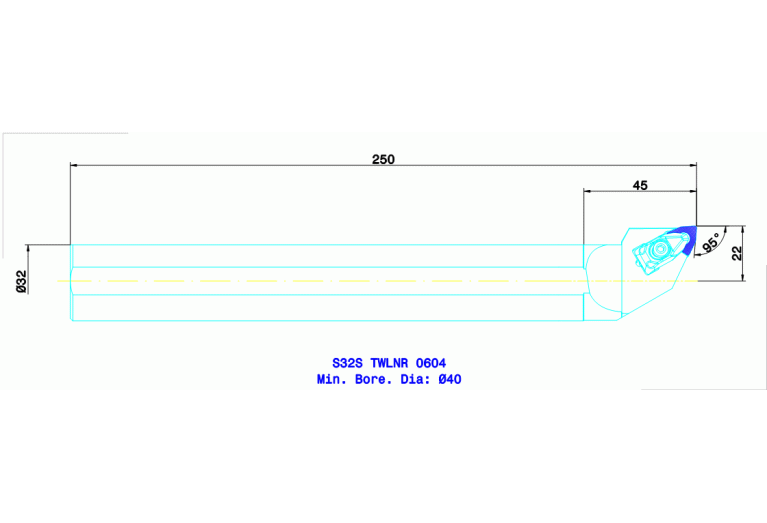

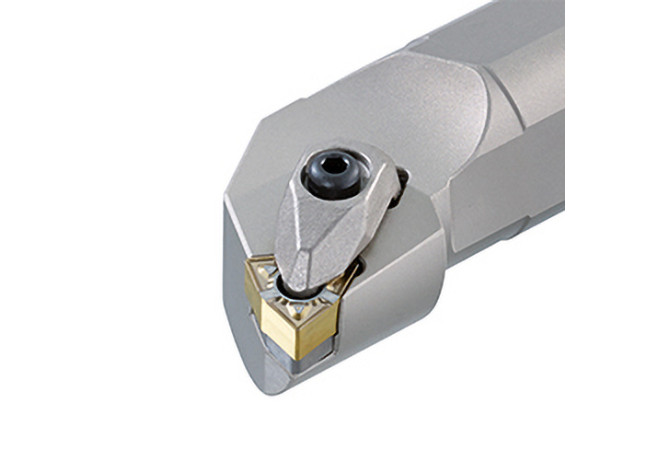

S32S TWLNR 0604

S32S TWLNR 0604 S32S TWLNR 0604 S32S TWLNR 0604 S32S TWLNR 0604

S32S TWLNR 0604

Ingersoll
Артикул: 6130481
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
7
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state
NL - Discontinued
DIN
ZYL03201105
DIN CSW1
WN0604047N
DMIN Minimum bore diameter
40 mm
EPSR Insert included angle
80 Degree
FamilyProducts
S-TWLNR/L 0604
HAND Cutting direction
R - Right
ID Technical product number
6130481
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree
LF Functional length
250 mm
LH Head length
50 mm
LOC-03 CCFMS Connection code form
11
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 H Shank height
30 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03201105
MIID Master insert identification
WNMX0604
Name Identifying order number
S32S TWLNR 0604
OAL Overall length
250 mm
STDDES Standard designation
S32S TWLNR 0604
THSC Tool holder shape code
A - offset shank design
WF Functional width
22 mm
Working process
No working processes available
WT Weight of item
1.44 kg
