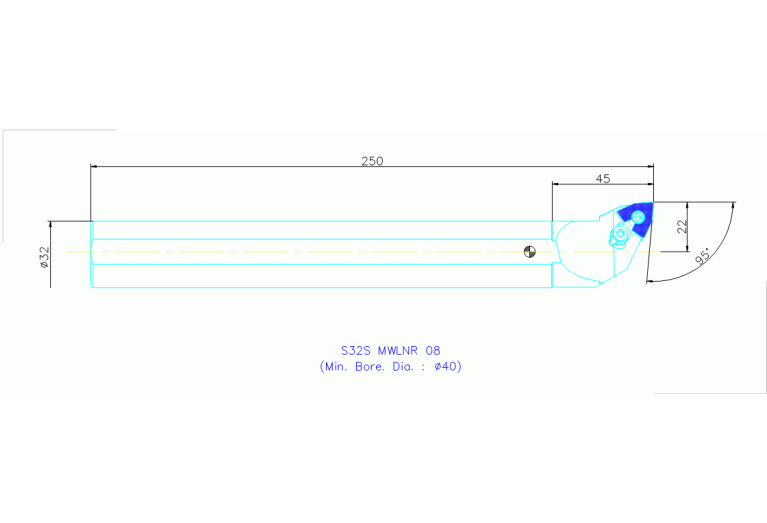

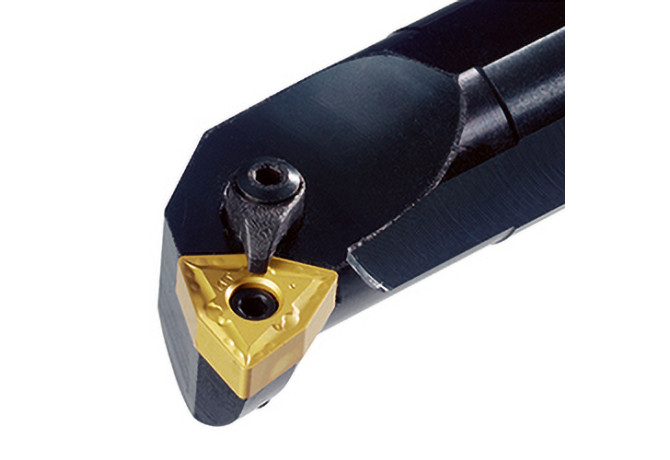

S32S MWLNR 08

S32S MWLNR 08 S32S MWLNR 08 S32S MWLNR 08 S32S MWLNR 08

S32S MWLNR 08

Ingersoll
Артикул: 3601277
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
7
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
ZYL03201105
DIN CSW1
WN0804042N
EPSR Insert included angle
80 Degree
FamilyProducts
S-MWLNR/L
HAND Cutting direction
R - Right
ID Technical product number
3601277
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree
LF Functional length
250 mm
LOC-03 CCFMS Connection code form
11
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 H Shank height
30 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03201105
MIID Master insert identification
WN 0804
Name Identifying order number
S32S MWLNR 08
OAL Overall length
250 mm
STDDES Standard designation
S32S MWLNR 08
THSC Tool holder shape code
A - offset shank design
WF Functional width
22 mm
Working process
No working processes available
WT Weight of item
1.43 kg
