Главная Каталог продукции Toolunited 11 309-01 - Tool holder for longitudinal and transversal turning S25R HSKNL 0904

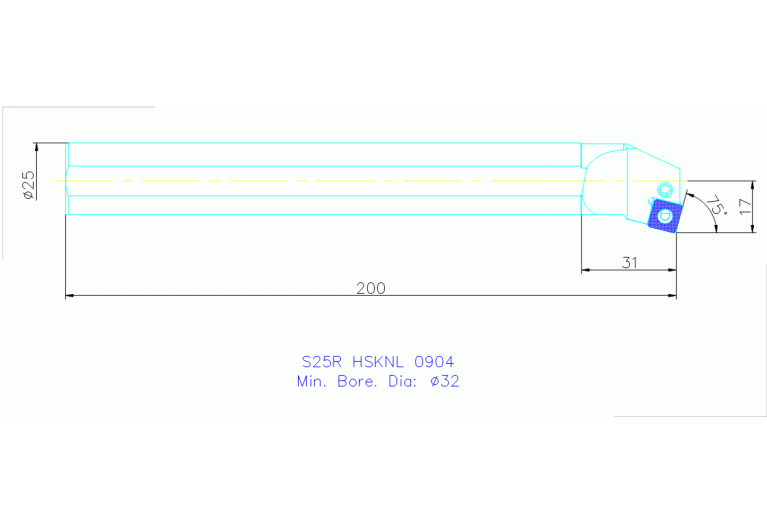

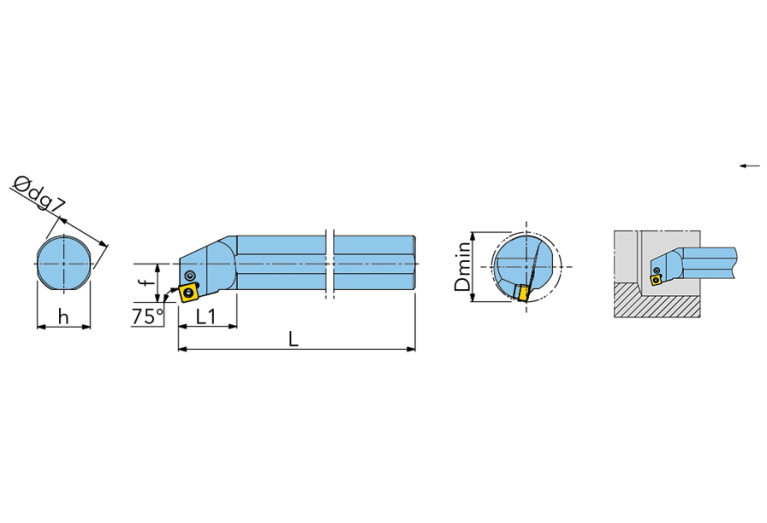

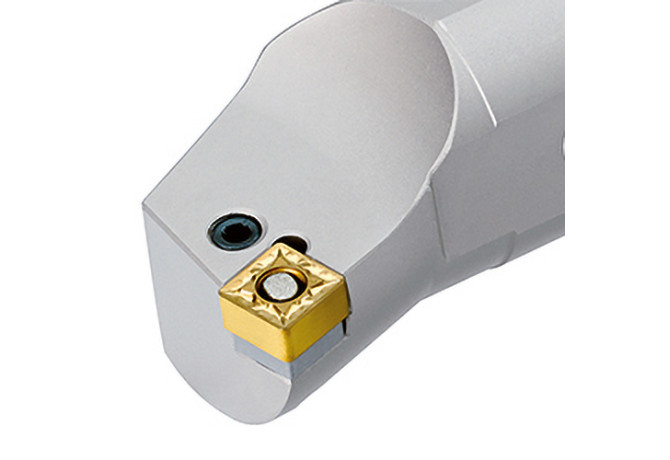

S25R HSKNL 0904

S25R HSKNL 0904 S25R HSKNL 0904 S25R HSKNL 0904 S25R HSKNL 0904

S25R HSKNL 0904

Ingersoll
Артикул: 6104396
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
2
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state
NL - Discontinued
DIN
ZYL02501105
DIN CSW1
SN0904042N
DMIN Minimum bore diameter
32 mm
EPSR Insert included angle
90 Degree
FamilyProducts
S-HSKNR/L 0904
HAND Cutting direction
L - Left
ID Technical product number
6104396
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
75 Degree
LF Functional length
200 mm
LH Head length
31 mm
LOC-03 CCFMS Connection code form
11
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03 H Shank height
23 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02501105
MIID Master insert identification
SNMG0904
Name Identifying order number
S25R HSKNL 0904
OAL Overall length
200 mm
STDDES Standard designation
S25R HSKNL 0904
THSC Tool holder shape code
A - offset shank design
WF Functional width
17 mm
Working process
No working processes available
WT Weight of item
0.705 kg
