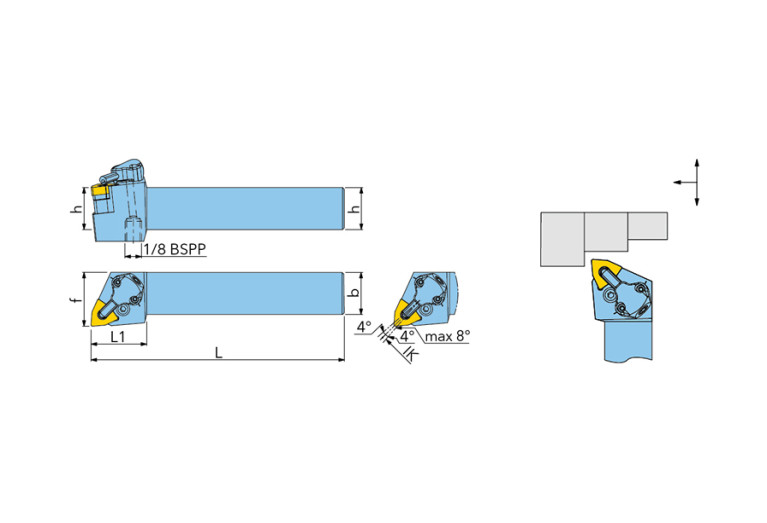

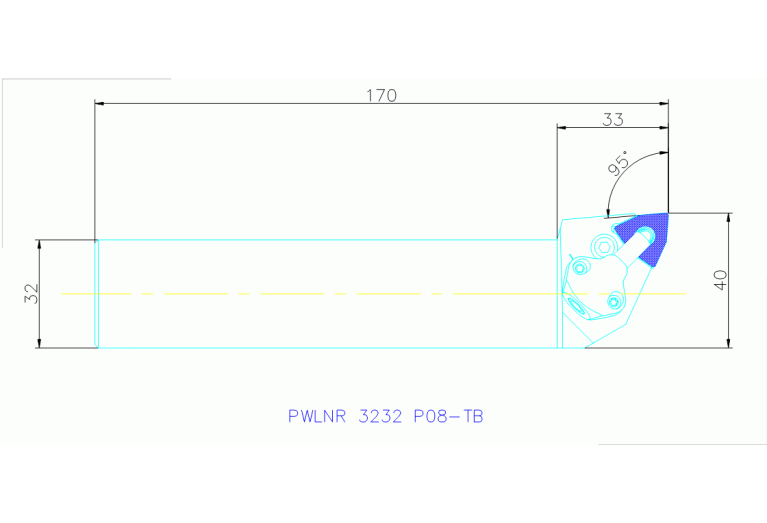

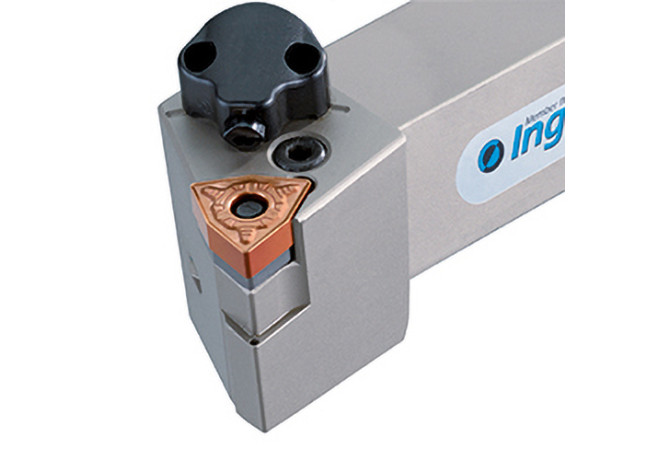

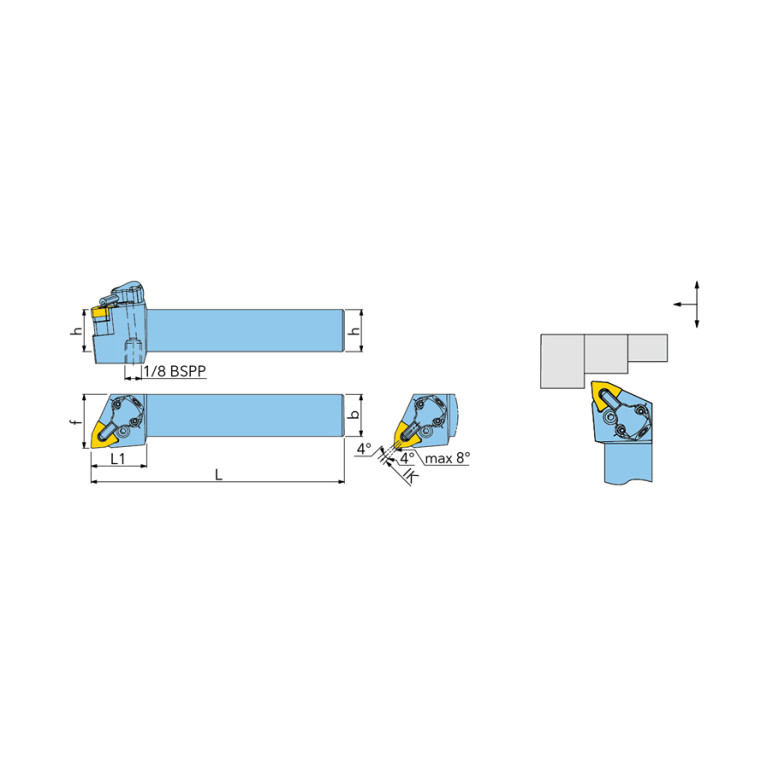

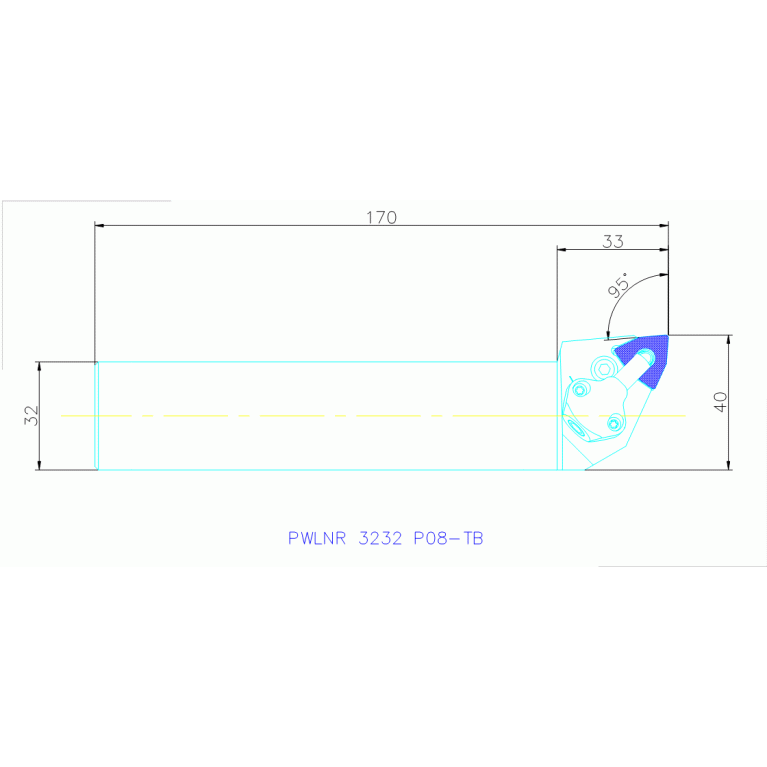

Главная Каталог продукции Toolunited 11 309-01 - Tool holder for longitudinal and transversal turning PWLNR 3232 P08-TB

PWLNR 3232 P08-TB

PWLNR 3232 P08-TB

PWLNR 3232 P08-TB

PWLNR 3232 P08-TB

PWLNR 3232 P08-TB

PWLNR 3232 P08-TB

PWLNR 3232 P08-TB

Ingersoll

Артикул: 6121324

В наличии

В корзину

Описание

Характеристики

A2A Clearance angle major Pos. A

0 Degree

B3A Inscribed circle diameter Pos. A

9.52 mm

BLDA Tool style code Position A

7

C1A Insert thickness Pos. A

4.76 mm

CEATC Tool cutting edge angle type code

E - Front lead angle

CEDC Cutting edge count

1

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

D1A Corner radius Pos. A

0.8 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LH - Stocked

DIN

VKT32320115

DIN CSW1

WN0804082N

EPSR Insert included angle

80 Degree

FamilyProducts

PWLNR/L-TB

HAND Cutting direction

R - Right

HF Functional height

32 mm

ID Technical product number

6121324

Interface codes

J6 /

Interface codes CSW1

J41 /

ISISO A Indicator for ISO cutting plate Pos.A

1

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

95 Degree

L Cutting edge length

8 mm

LF Functional length

170 mm

LH Head length

33 mm

LOC-03 B Shank width

32 mm

LOC-03 CCFMS Connection code form

01

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

3232

LOC-03 H Shank height

32 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT32320115

MIID Master insert identification

WNMA080408

Name Identifying order number

PWLNR 3232 P08-TB

OAL Overall length

170 mm

STDDES Standard designation

PWLNR3232P08

SX Shank cross section shape code

01 - Square shank

THSC Tool holder shape code

A - offset shank design

WF Functional width

40 mm

Working process

DDA - External turning

WT Weight of item

1.34 kg
