Главная Каталог продукции Toolunited 11 309-01 - Tool holder for longitudinal and transversal turning PWLNR 2020 G06-IHP

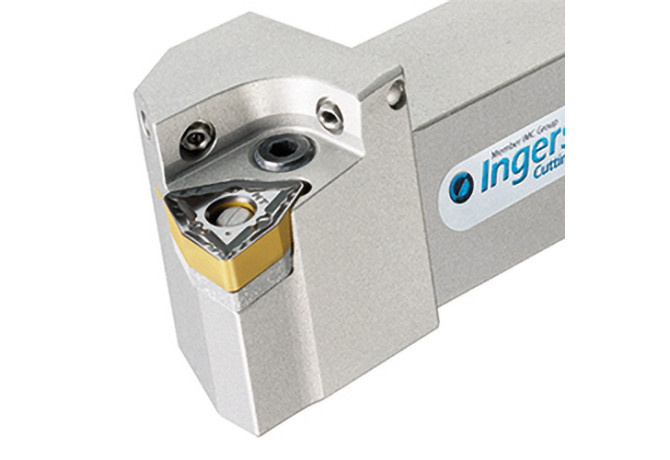

PWLNR 2020 G06-IHP

PWLNR 2020 G06-IHP PWLNR 2020 G06-IHP PWLNR 2020 G06-IHP

PWLNR 2020 G06-IHP

Ingersoll
Артикул: 5891773
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
7
CEATC Tool cutting edge angle type code
B - Side and front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state
LA - Soon discontinued
DIN
VKT20200115
DIN CSW1
WN0604042N
EPSR Insert included angle
80 Degree
FamilyProducts
PWLNR/L-IHP
HAND Cutting direction
R - Right
ID Technical product number
5891773
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
95 Degree
LF Functional length
89 mm
LH Head length
30 mm
LOC-03 B Shank width
20 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
2020
LOC-03 H Shank height
20 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT20200115
MIID Master insert identification
WN 0604
Name Identifying order number
PWLNR 2020 G06-IHP
OAL Overall length
89 mm
STDDES Standard designation
PWLNR 2020 G06-IHP
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
A - offset shank design
WF Functional width
25 mm
Working process
No working processes available
