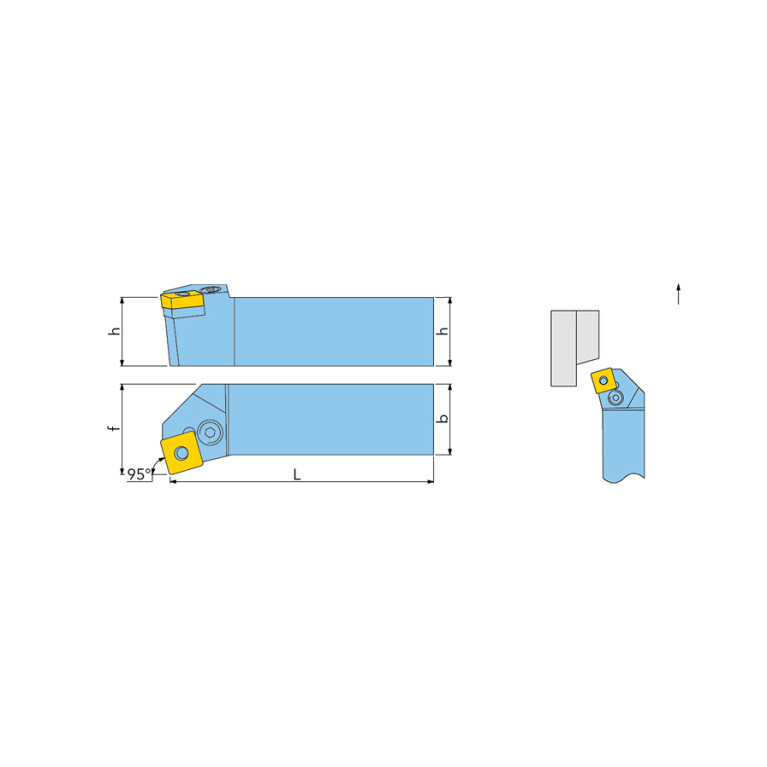

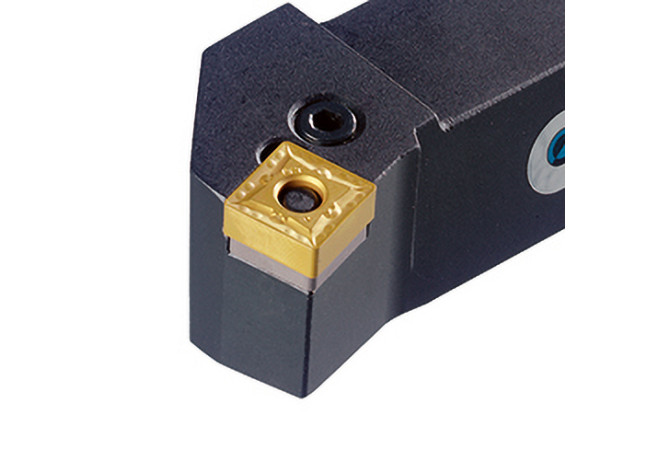

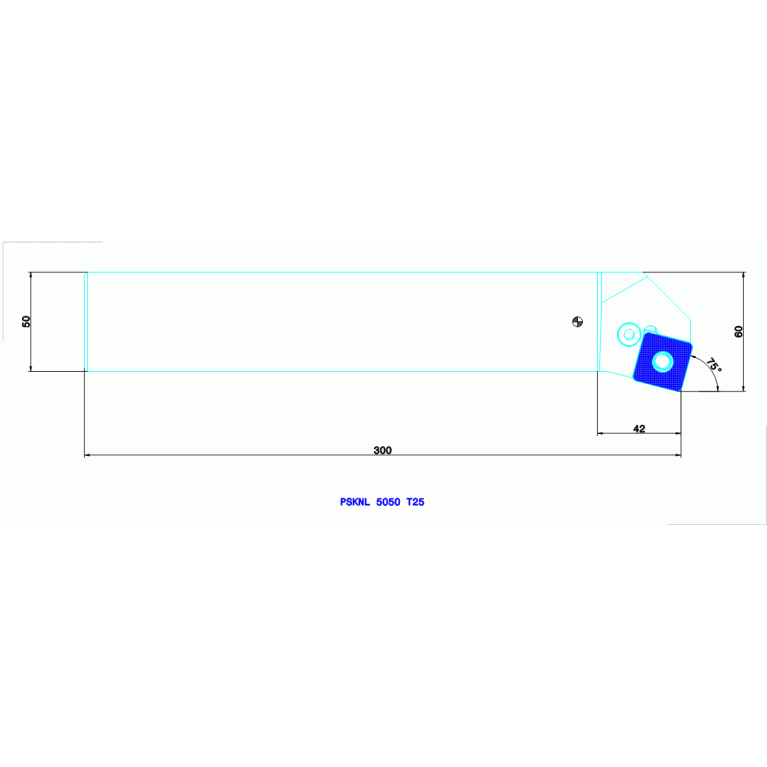

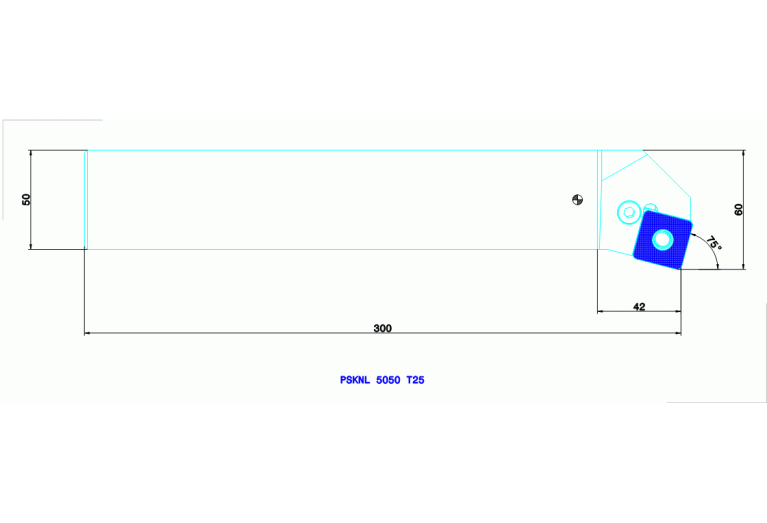

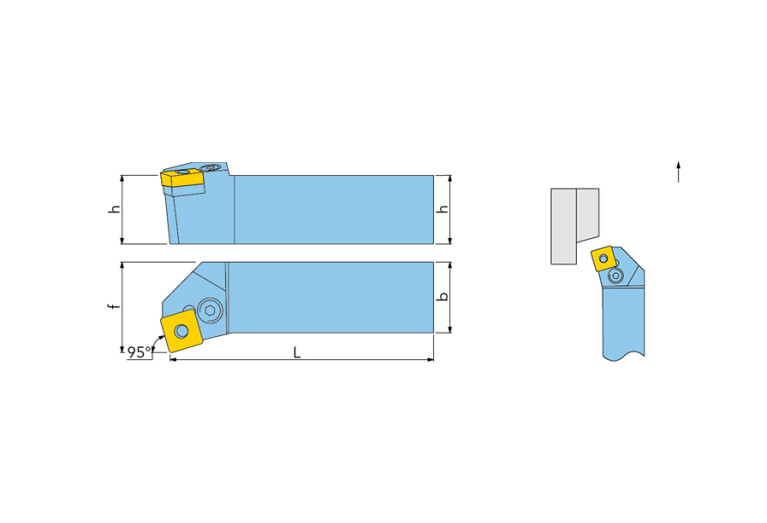

PSKNL 5050 T25

PSKNL 5050 T25 PSKNL 5050 T25 PSKNL 5050 T25 PSKNL 5050 T25

PSKNL 5050 T25

Ingersoll
Артикул: 3600974
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
2
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
VKT50500105
DIN CSW1
SN2507162N
EPSR Insert included angle
90 Degree
FamilyProducts
PSKNR/L
HAND Cutting direction
L - Left
ID Technical product number
3600974
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
1
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
75 Degree
LF Functional length
300 mm
LOC-03 B Shank width
50 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
5050
LOC-03 H Shank height
50 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT50500105
MIID Master insert identification
SN 2507
Name Identifying order number
PSKNL 5050 T25
OAL Overall length
300 mm
STDDES Standard designation
PSKNL 5050 T25
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
A - offset shank design
WF Functional width
60 mm
Working process
No working processes available
