Главная Каталог продукции Toolunited 11 309-01 - Tool holder for longitudinal and transversal turning PRDCN 4040 T25

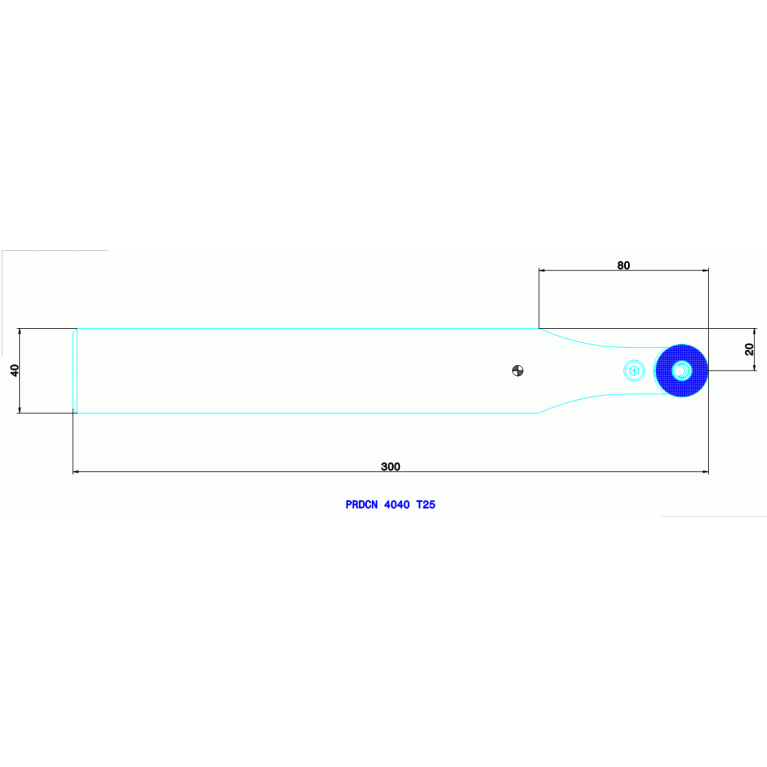

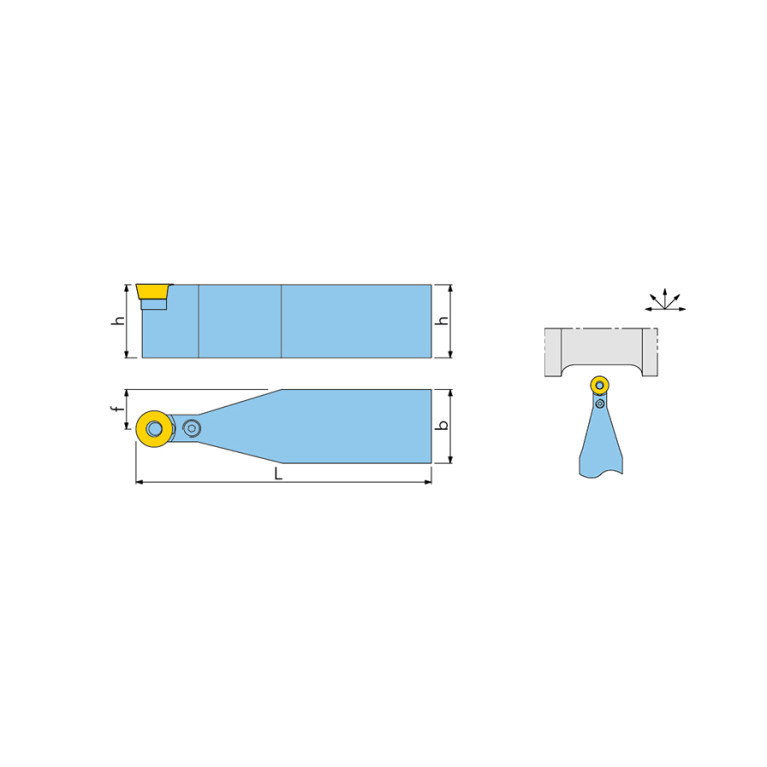

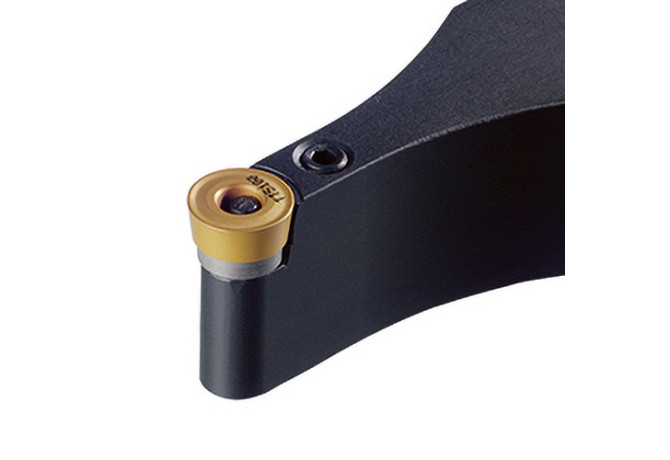

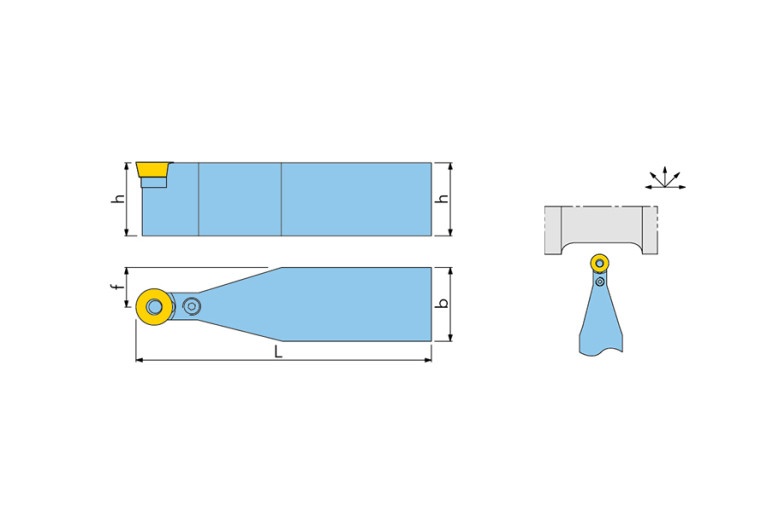

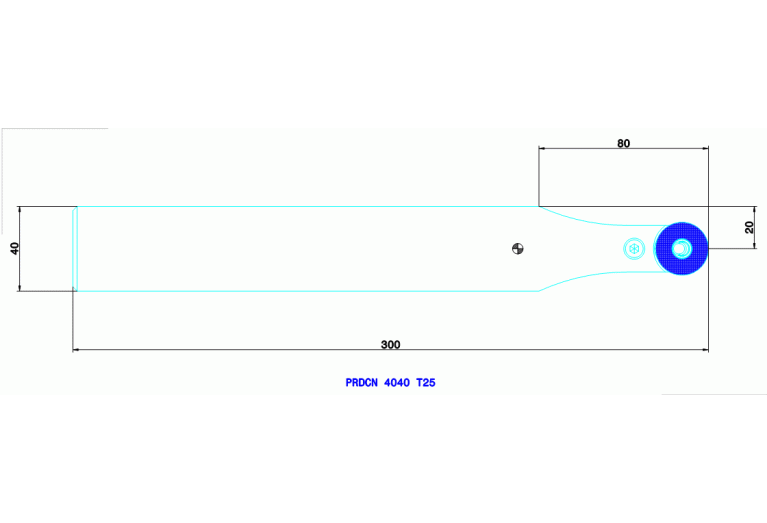

PRDCN 4040 T25

PRDCN 4040 T25 PRDCN 4040 T25 PRDCN 4040 T25 PRDCN 4040 T25

PRDCN 4040 T25

Ingersoll
Артикул: 3600909
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
7 Degree
BLDA Tool style code Position A
10
CEATC Tool cutting edge angle type code
S - Side lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DIN
VKT40400105
DIN CSW1
RC2507007N
FamilyProducts
PRDCN
HAND Cutting direction
N - Neutral
ID Technical product number
3600909
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
45 Degree
LF Functional length
300 mm
LOC-03 B Shank width
40 mm
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
VKT Square mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
4040
LOC-03 H Shank height
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
VKT40400105
MIID Master insert identification
RC X 250700
Name Identifying order number
PRDCN 4040 T25
OAL Overall length
300 mm
STDDES Standard designation
PRDCN 4040 T25
SX Shank cross section shape code
01 - Square shank
THSC Tool holder shape code
G - straight shank design
WF Functional width
20 mm
Working process
No working processes available
WT Weight of item
3.305 kg
