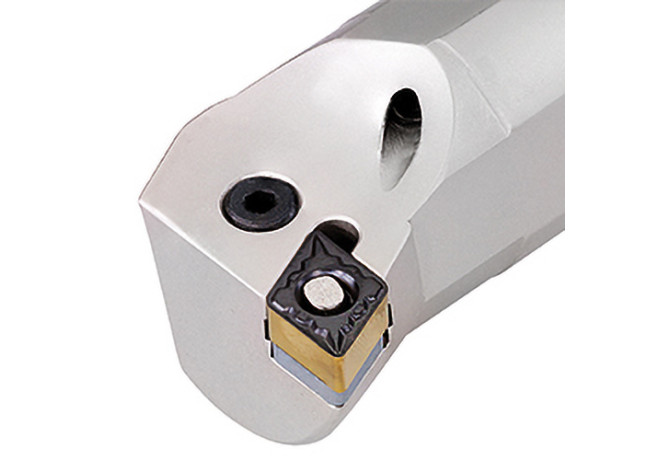

A32S HXUNL 1105

A32S HXUNL 1105 A32S HXUNL 1105 A32S HXUNL 1105 A32S HXUNL 1105

A32S HXUNL 1105

Ingersoll
Артикул: 6310853
В наличии
В корзину
Описание
Характеристики
A2A Clearance angle major Pos. A
0 Degree
BLDA Tool style code Position A
99
CEATC Tool cutting edge angle type code
E - Front lead angle
CEDC Cutting edge count
1
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DCP Data chip provision
0 - Without data chip
Delivery state
LA - Soon discontinued
DIN
ZYL03202215
DIN CSW1
XN1105042N
DMIN Minimum bore diameter
40 mm
FamilyProducts
A-HXUNR/L 1105
HAND Cutting direction
L - Left
ID Technical product number
6310853
Interface codes
J6 /
Interface codes CSW1
J41 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
309-01 - Tool holder for longitudinal and transversal turning
KAPR Tool cutting edge angle
93 Degree
LF Functional length
250 mm
LH Head length
35 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03 H Shank height
30 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL03202215
MIID Master insert identification
XNMG1105
Name Identifying order number
A32S HXUNL 1105
OAL Overall length
250 mm
STDDES Standard designation
A32S HXUNL 1105
THSC Tool holder shape code
A - offset shank design
WF Functional width
22 mm
Working process
No working processes available
WT Weight of item
1.47 kg
