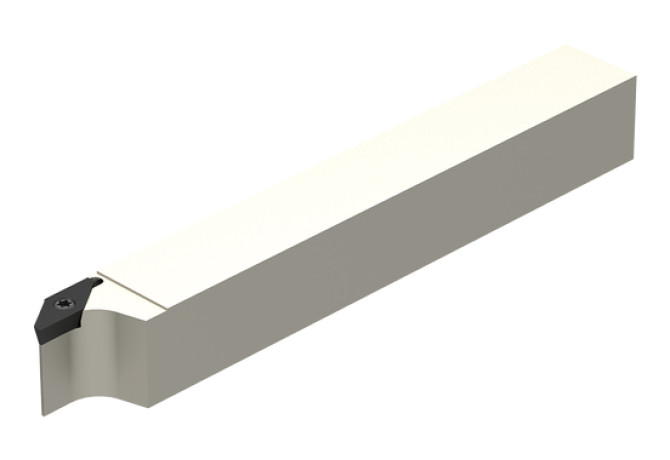

Главная Каталог продукции СЗЦПК инструмент 11 309-01 - Tool holder for longitudinal and transversal turning 72388010

72388010

Артикул: 72388010

В наличии

В корзину

Описание

Характеристики

CEATC Tool cutting edge angle type code

S - Side lead angle

CEDC Cutting edge count

COMPC Company code

CE - Ceratizit

DIN

VKT10100105

FamilyProducts

TRI CLAMP KLEMMHALTER AUSSEN

HAND Cutting direction

R - Right

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

ISYC Subclass

309-01 - Tool holder for longitudinal and transversal turning

KAPR Tool cutting edge angle

91 Degree

LOC-03 B Shank width

10 mm

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

VKT Square mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

1010

LOC-03 H Shank height

10 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

VKT10100105

Name Identifying order number

72388010

OAL Overall length

100 mm

STDDES Standard designation

SVXPR1010H10

SX Shank cross section shape code

01 - Square shank

WF Functional width

10 mm

Working process

DDA - External turning
